Description
Product Core Brief
- Model: 135799‑01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System (3500/93 Display Interface Module, rack‑mount I/O back‑plane)
- Core Function: Full‑height rack‑resident interface card for the 3500/93 System Display. It bridges the 3500 rack backplane to one or two external operator display panels via RS‑485 serial links. It retrieves channel measurements, alarm status, relay states, Keyphasor data, and system event logs from the rack backplane, formats data, and transmits to remote display units. It does not perform machinery‑protection measurement or alarm‑voting logic. Up to two physical 3500/93 display panels can connect to one 135799‑01 module.
- Product Type: 3500/93 Display Interface Module (DIM)
- Key Specs: Full‑height slot | RS‑485 display communication port | Supports up to two external 3500/93 display panels | No field sensor inputs; purely rack‑to‑display communication | Must pair with separate physical 3500/93 display assembly
Note: OEM discontinued; available as new surplus and field‑tested used stock.

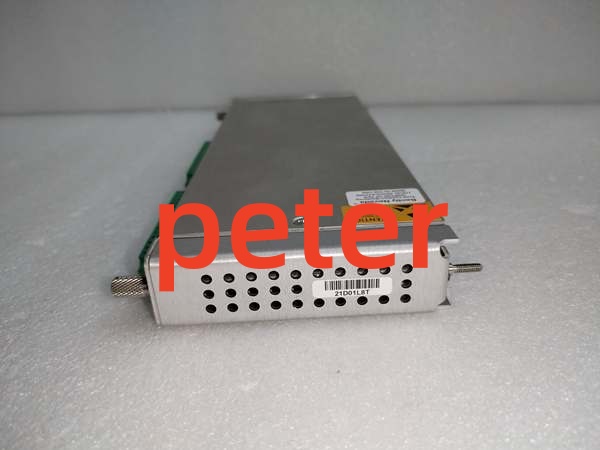

BENTLY 133819‑01
Key Technical Specifications
- Form Factor: Full‑height slot for standard 3500 rack
- Backplane Power Draw: 240 mA @ +24 VDC
- Communication Interface: Isolated RS‑485 for connection to 3500/93 display panels; Bently Nevada proprietary display protocol
- Supported Display Count: Maximum two 3500/93 operator displays per single 135799‑01
- Data Content Passed to Display: All monitor channel values, Alert/Danger alarm states, relay‑module status, Keyphasor/tachometer data, system event list, fault logs, rack health status
- Update Rate: Typical 1‑second refresh for channel‑value data to connected displays
- Configuration: Set up via 3500 Rack Configuration Software; no local push‑button configuration on this module itself
- Operating Temperature: ‑30 °C to +65 °C
- Storage Temperature: ‑40 °C to +85 °C
- Weight: 0.38 kg
- Dimensions: 241 mm × 99 mm × 24.4 mm
- Humidity: 5‑95 % non‑condensing
- Compliance: API 670 for turbomachinery‑monitoring auxiliary‑interface requirements
Product Introduction
135799‑01 is the rack‑based Display Interface Module for the 3500/93 local‑operator‑display system. It lives inside the 3500 rack and handles all serial‑data traffic between the rack backplane and external physical display panels. This module has no sensor‑input terminals and cannot run standalone; it requires one or two separate 3500/93 display hardware units for operator visualization.
This unit collects all available monitoring‑system data across the rack backplane. It packages measurement values, alarm conditions, fault events and system logs, then sends formatted data out over RS‑485 wiring to remote‑mounted display panels. Operators use those external panels to view real‑time machinery‑protection status without a PC or System 1 host.
Common deployments place 3500/93 display panels at local turbine‑compressor control‑room cabinets. The 135799‑01 only serves as a communication gateway; it never participates in protection‑alarm‑voting logic. If this module fails, machinery‑protection monitor channels, relay outputs and trip‑logic keep running normally; only local operator‑display visibility is lost.
BENTLY 133819‑01
QA & Testing SOP
- Incoming Inspection: Match part‑number and serial‑number against OEM documentation. Inspect backplane edge connector, RS‑485 port terminals, and PCB for burn marks or counterfeit‑marking inconsistencies. Log serial numbers for traceability.
- Live Testing: Seat inside genuine 3500 rack, apply rated backplane power. Establish communications with rack‑configuration software. Connect a known‑good 3500/93 display unit to the RS‑485 port. Verify rack‑status data, channel‑value forwarding, alarm‑state propagation and event‑list transmission during continuous 24‑hour load test.
- Electrical Testing: Use Fluke 115 and insulation tester. Verify >10 MΩ isolation between communication‑circuit and chassis ground. Confirm chassis‑to‑rack‑earth continuity.
- Firmware / Config Backup: Record exact firmware revision loaded on the unit. Capture screenshots of display‑port configuration parameters before reset. Photograph port‑pin‑out layout for reference records.
- Final QC & Packaging: Place unit inside anti‑static shielding bag. Apply printed QC‑pass tag with test‑date stamp. Pack with shock‑absorbent foam for transit.
Installation Pitfalls & Guide
❗ Firmware‑Rev Mismatch: Mismatched rack‑firmware and DIM‑module firmware can cause missing‑data or intermittent display‑communication drop‑outs. Confirm firmware compatibility before commissioning local‑display functions.❗ Slot‑Location Error: This hardware occupies a full‑height rack slot. Partial seating breaks backplane communications and stops all data transfer to connected displays. Photograph existing hardware layout prior to removal.❗ Wiring‑Incompatibilities: RS‑485 polarity is critical for display communication. Reversed A/B wiring produces no display connection. Maximum cable‑length and bus‑termination rules from the 3500/93 manual must be followed. Cross‑reference OEM datasheet before landing field wiring.❗ Power‑Draw Changes: Adding this full‑height module increases total rack backplane load. Calculate aggregate slot‑by‑slot current consumption to avoid overloading rack power supplies on protection‑critical racks.❗ ESD Dangers: Unprotected handling can destroy serial‑communication circuit hardware. Always use grounded ESD wrist straps during handling and replacement.
4‑step replacement guide1. Pre‑install: De‑energize rack power, don ESD wrist strap. Validate rack‑firmware‑revision compatibility. Document RS‑485 bus‑wiring terminations and display‑count configuration.2. Removal: Release front‑panel latch, slide out old unit, document RS‑485 communication‑wiring polarity.3. Install: Slide replacement firmly into target full‑height rack slot until latch fully engages. Re‑connect RS‑485 display‑bus wiring respecting A/B signal polarity from OEM datasheet.4. Power‑on Test: Restore rack power, confirm module OK‑LED status. Verify physical 3500/93 display establishes link, pulls real‑time channel values, alarm‑states and event logs from rack. Confirm both displays operate if two‑display configuration is used. Perform full‑functional proof‑test before returning local‑display functions to service.
FAQ
Q: Does this unit support hot‑swap operation?A: No. It draws power directly from the main system backplane. Live removal creates voltage transients that can corrupt adjacent monitoring cards or damage backplane traces. Full rack‑power shutdown is mandatory.
Q: What is the difference between 135799‑01 and the 3500/93 display panel?A: 135799‑01 is the rack‑mounted DIM communication‑interface board. The separate 3500/93 panel is the operator‑touch‑screen hardware. Both parts are required for a complete local‑display system.
Q: Will machinery protection trips stop working if 135799‑01 fails?A: No. The DIM handles only local‑operator‑display traffic. All monitor‑channel measurements, alarm‑threshold‑comparison and relay‑trip‑logic run independent of this module. Only local‑panel visibility is lost.
Q: What happens when stored configuration is lost after power‑cycle?A: Display‑bus‑configuration parameters reside in volatile memory. Power loss erases custom settings. Reload rack‑configuration after power restoration.
Q: Is brand‑new factory stock available?A: Original OEM manufacturing has ceased. Available stock comes from new‑surplus or field‑tested used inventory. Lead‑times shift with lot availability.
Q: What warranty applies to surplus stock?A: Third‑party inventory carries limited‑time functional warranty covering hardware defects. It excludes damage caused by site‑side surge events, mis‑wiring, or incorrect configuration. OEM factory warranty is no longer offered.
Q: Can other full‑height communication modules serve as drop‑in replacements?A: Physical form‑factor matches, but communication‑firmware and RS‑485 display‑protocol hardware are unique to the 3500/93 DIM. Direct substitution is not allowed.
Q: Can I run more than two 3500/93 displays off one 135799‑01?A: No. Hardware limit is two operator‑display panels per DIM module. Additional displays require a second 135799‑01 in another rack slot.
