Product Core Brief
- Model: 135489‑01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System (3500/42M, internal‑barrier variant)
- Core Function: Four‑channel multi‑function monitor module with integrated intrinsic‑safety barriers. Accepts both eddy‑current proximity probe and seismic transducer inputs. It executes local measurement computation, sensor fault detection, and user‑configurable alert/danger alarm thresholds. Built‑in barriers remove requirement for external barrier hardware for hazardous‑area transducer wiring. Measurement and alarm status data transmits across rack backplane to gateway and relay modules for rotating‑machinery protection and diagnostics.
- Product Type: 4‑Channel Proximitor / Seismic Monitor Module, Internal‑Barrier
- Key Specs: 4 independently configurable channels | Full‑height slot | Built‑in IS barriers | Supports proximity probes, velocity transducers, accelerometers | On‑board screw‑terminal field connections
Note: OEM discontinued; available as new surplus and field‑tested used stock.

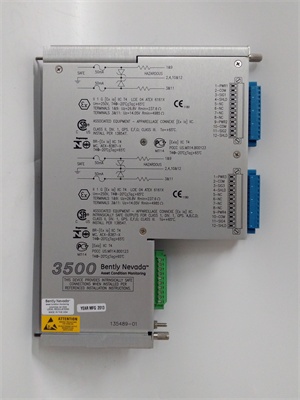

Bently 135489-01
Key Technical Specifications
- Input Channels: 4 multi‑function configurable input channels
- Supported Transducers: 3300‑series eddy‑current proximity probes, Velomitor velocity transducers, piezo‑accelerometers
- Measurement Modes: Radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, shaft absolute vibration
- Input Frequency Range: 0.5 Hz to 12 kHz
- Safety Feature: Integrated intrinsic‑safety barriers for hazardous‑classified field circuits; no external barrier assemblies required
- Field Termination: Direct screw‑type terminal blocks on module; no separate external termination block
- Backplane Power Draw: 350 mA @ +24 VDC
- Form Factor: Full‑height slot for 3500‑series rack
- Analog Output: 4‑20 mA per channel for process‑system host interfacing
- Alarm Logic: Software‑programmable Alert / Danger setpoints; sensor‑fault detection per channel
- Operating Temperature: ‑30 °C to +65 °C
- Storage Temperature: ‑40 °C to +85 °C
- Weight: 0.46 kg
- Dimensions: 241 mm × 99 mm × 24.4 mm
- Humidity: 5‑95 % non‑condensing
- Compliance: API 670; ATEX / IECEx Zone 2 rated; IS barrier parameters certified for hazardous‑area installation.
Product Introduction
135489‑01 is the internal‑barrier hardware revision of the widely deployed 3500/42M multi‑function monitor. It is designed for installations where transducer cables run into hazardous classified areas. On‑board intrinsic‑safety barriers limit energy delivered to field sensors, eliminating separate external barrier panels and simplifying cabinet wiring layouts.
Each of its four channels can be independently assigned to proximity‑based position measurement or seismic‑based vibration measurement. Mixed‑sensor configurations on one module are permitted. It performs all threshold‑comparison locally on‑board; alarm and trip decisions propagate across the rack backplane to relay output modules. Measurement data flows to the rack communication gateway for DCS/PLC and System 1 diagnostic host access.
Common deployments include steam‑turbine bearing‑vibration monitoring, centrifugal‑compressor thrust‑position supervision, and critical pump protection. This module is a complete front‑and‑rear integrated assembly; it does not require mating with a separate rear‑plane board.
QA & Testing SOP
- Incoming Inspection: Match part‑number and serial‑number against OEM documentation. Inspect screw terminals, backplane edge connector, PCB traces and barrier‑identification labeling for damage or counterfeit marking inconsistencies. Log serial numbers for traceability.
- Live Testing: Seat inside genuine 3500 rack, apply rated backplane power. Establish communications with rack‑configuration software. Inject calibrated simulated proximity‑probe and seismic‑transducer signals to each channel. Validate measurement readings, sensor‑fault reporting, alarm‑threshold triggering, and 4‑20 mA output stability during continuous 24‑hour load test.
- Electrical Testing: Use Fluke 115 and insulation tester. Verify >10 MΩ isolation between field‑signal circuits and chassis ground. Confirm chassis‑to‑rack‑earth continuity.
- Firmware / Config Backup: Record exact firmware revision loaded on the unit. Capture screenshots of channel‑sensor assignments, measurement‑mode selections, alarm‑setpoints, and 4‑20 mA scaling before reset. Photograph front‑panel LED layout and terminal‑block pin‑out for reference records.
- Final QC & Packaging: Place unit inside anti‑static shielding bag. Apply printed QC‑pass tag with test‑date stamp. Pack with shock‑absorbent foam for transit.
Bently 135489-01
Installation Pitfalls & Guide
❗ Firmware‑Rev Mismatch: Mismatched rack‑firmware and module‑firmware produces incorrect measurement values, false channel‑fault flags or unreliable alarm‑logic execution. Confirm firmware compatibility before commissioning machinery‑protection functions.❗ Slot‑Location Error: This hardware occupies a full‑height rack slot. Partial seating breaks backplane communications and disables protection‑monitoring capability. Photograph existing hardware layout prior to removal.❗ Wiring‑Incompatibilities: Proximity‑probe wiring and seismic‑transducer wiring follow different termination rules. When deployed for hazardous‑area service, strictly follow OEM intrinsic‑safety installation rules for cable parameters and cable lengths. Mis‑termination yields invalid readings and defeats hazardous‑area safety compliance. Cross‑reference OEM datasheet before landing field wiring.❗ Power‑Draw Changes: Adding this full‑height module increases total rack backplane load. Calculate aggregate slot‑by‑slot current consumption to avoid overloading rack power supplies on protection‑critical racks.❗ ESD Dangers: Unprotected handling can destroy precision mixed‑signal conditioning and intrinsic‑safety barrier circuits. Always use grounded ESD wrist straps during handling and replacement.
4‑step replacement guide1. Pre‑install: De‑energize rack power, don ESD wrist strap. Validate rack‑firmware‑revision compatibility. Document channel‑sensor assignments, alarm‑setpoints, 4‑20 mA scaling and all field‑wiring terminations. Review hazardous‑area installation compliance requirements.2. Removal: Release front‑panel latch, slide out old unit, document each field‑wire termination.3. Install: Slide replacement firmly into target full‑height rack slot until latch fully engages. Re‑connect field wiring following barrier‑compliant pin‑out rules from OEM datasheet.4. Power‑on Test: Restore rack power, confirm module OK‑LED status. Inject simulated proximity‑probe and seismic‑transducer signals. Validate measurement readings, sensor‑fault reporting, alarm‑threshold behavior and 4‑20 mA output. Perform full‑functional proof‑test before returning machinery‑protection functions to service.
FAQ
Q: Does this unit support hot‑swap operation?A: No. It draws power directly from the main system backplane. Live removal creates voltage transients that can corrupt adjacent monitoring cards or damage backplane traces. Full rack‑power shutdown is mandatory.
Q: What differentiates 135489‑01 from standard non‑barrier 3500/42M?A: 135489‑01 carries factory‑integrated intrinsic‑safety barriers built onto the module. Non‑barrier 3500/42M hardware requires separate external barrier devices for hazardous‑classified transducer circuits.
Q: Can I mix proximity‑probe and seismic‑transducer inputs on different channels?A: Yes, each channel supports independent sensor‑type configuration. Re‑validate every channel setting after module replacement.
Q: What happens when stored configuration is lost after power‑cycle?A: All channel‑mode assignments, alarm‑thresholds and scaling‑parameters reside in volatile memory. Power loss erases custom settings. Reload rack‑configuration after power restoration.
Q: Is brand‑new factory stock available?A: Original OEM manufacturing has ceased. Available stock comes from new‑surplus or field‑tested used inventory. Lead‑times shift with lot availability.
Q: What warranty applies to surplus stock?A: Third‑party inventory carries limited‑time functional warranty covering hardware defects. It excludes damage caused by site‑side surge events, mis‑wiring, or incorrect configuration. OEM factory warranty is no longer offered.
Q: Can a non‑barrier 3500/42M serve as direct drop‑in replacement?A: Mechanically the form‑factor matches. If your site requires intrinsic‑safety protection for hazardous‑area transducer wiring, substituting a non‑barrier module violates installation‑safety requirements. Full site safety‑assessment is required before any substitution.
Q: Can this module be used for TMR voting configurations?A: Yes. Three identical 135489‑01 modules must occupy rack slots designated for triple‑modular‑redundant deployment. Site‑specific grounding, cable‑routing and hazardous‑area compliance must be reviewed.
