Description
Product Core Brief
- Model: 125680‑01
- Brand: BENTLY
- Series: 3500 Machinery Protection System
- Core Function: Processes eddy‑current proximitor signals to measure shaft displacement, vibration and thrust position for rotating‑machinery protection.
- Product Type: Proximitor I/O Module (3500/40M)
- Key Specs: 4 independent channels | Full‑height rack slot | 3300XL sensor compatible
Note: OEM discontinued; available as new surplus and field‑tested used stock.

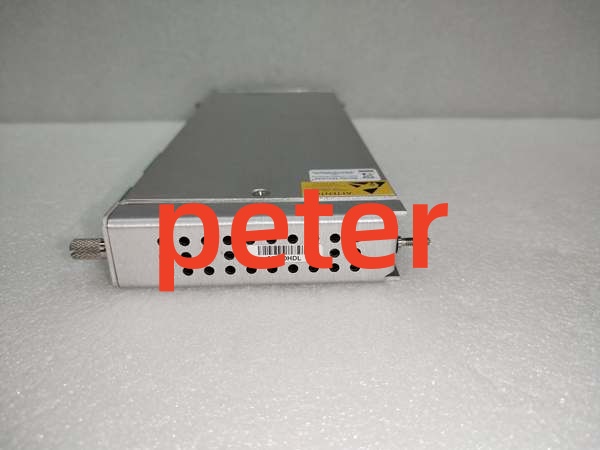

Bently 125680-01
Key Technical Specifications
- Channel Count: 4 configurable input channels, operates in channel‑pair groups
- Supported Sensors: 3300XL series eddy‑current proximity probes
- Input Frequency Range: 0.5 Hz to 10 kHz
- Backplane Power Draw: 340 mA @ +24 VDC
- Form Factor: Full‑height slot for 3500‑series rack
- Alarm Logic: User‑configurable via 3500 rack configuration software
- Operating Temperature: 0 °C to +60 °C
- Weight: 0.40 kg
- Dimensions: 241 mm × 114 mm × 25 mm
- Output: Analog 4‑20 mA per channel for host‑system transmission
Product Introduction
This is a signal‑conditioning I/O board for the 3500 rack. It takes raw eddy‑current probe signals, converts them into usable measurement values, and executes local alarm comparison without external controller intervention.
Each channel can be reassigned for radial vibration, thrust position, or differential expansion. This reduces spare‑part counts for multi‑monitor turbine and compressor installations.
QA & Testing SOP
- Incoming Inspection: Match part number and serial number against OEM documentation. Inspect PCB for capacitor bulging, cracked solder joints, and counterfeit marking defects. Log serial numbers for traceability.
- Live Testing: Seat inside genuine 3500 rack, apply rated backplane power. Establish comms handshake with rack controller. Inject simulated proximitor signals for continuous 24‑hour load test.
- Electrical Testing: Use Fluke 115 and insulation tester. Verify insulation resistance >10 MΩ between signal circuits and chassis ground. Confirm chassis‑to‑rack‑earth continuity.
- Firmware/Config Backup: Record exact firmware revision loaded on the unit. Capture screenshots of channel configuration before any reset. Photograph front‑panel LED layout for reference.
- Final QC & Packaging: Place unit inside anti‑static shielding bag. Apply printed QC pass tag with test‑date stamp. Pack with shock‑absorbent foam for transit.

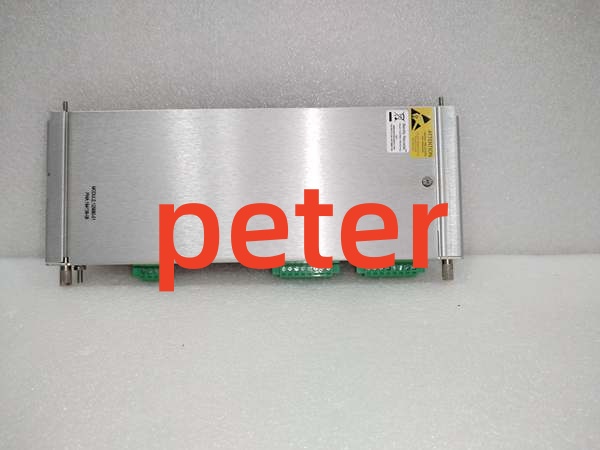

Bently 125680-01
Installation Pitfalls & Guide
❗ Firmware Rev Mismatch: Mismatched rack firmware creates intermittent channel drop‑outs and false alarms. Confirm rack firmware revision matches the firmware running on the unit before commissioning.❗ Slot Location Error: This hardware requires a full‑height rack slot. Placing it in half‑height positions causes connector misalignment and no channel operation. Photograph old hardware layout prior to removal.❗ Wiring Incompatibilities: Proximitor probe wiring pinout differs from older 3300‑series hardware. Cross‑reference OEM datasheet before landing field cabling; reversed probe wiring yields zero valid readings.❗ Power Draw Changes: Adding this unit increases total rack backplane load. Calculate aggregate current consumption across all populated slots to avoid overloading rack power supplies.❗ ESD Dangers: Unprotected handling can destroy high‑gain signal‑conditioning circuits. Field cases show ESD‑damaged spare units valued over $2000 before power‑on. Always use grounded ESD wrist straps.
4‑step replacement guide1. Pre‑install: De‑energize rack power, don ESD wrist strap, validate firmware compatibility.2. Removal: Release front‑panel latch, slide out old unit, document all wiring assignments.3. Install: Slide replacement firmly into full‑height slot until latch fully engages. Reconnect field wiring per datasheet pinout.4. Power‑on Test: Restore rack power, confirm backplane communication, inject simulated probe signal to validate alarm and analog‑output response.
FAQ
Q: Does this unit support hot‑swap operation?A: No. It draws power directly from the main system backplane. Live removal produces voltage transients that can corrupt adjacent monitoring cards or damage backplane traces. Full rack power shutdown is mandatory.
Q: Can I use non‑Bently proximity probes with this hardware?A: Third‑party probes rarely match the expected input impedance and sensitivity. Measurement drift and false alarms are common. Use OEM‑specified 3300XL probes. Verify with OEM datasheet.
Q: What happens when stored configuration is lost after power‑cycle?A: All channel setpoints and alarm thresholds live in volatile memory. Power loss erases custom settings. You must reload configuration from the rack configuration tool after power restoration.
Q: Is brand‑new factory stock available?A: Original OEM manufacturing has ceased. Available stock comes from new‑surplus or field‑tested used inventory. Lead‑times shift with lot availability.
Q: What warranty applies to surplus stock?A: Third‑party inventory carries limited‑time functional warranty covering hardware defects. It excludes damage caused by site‑side over‑voltage events, mis‑wiring, or incorrect configuration. OEM factory warranty is no longer offered.
Q: Can I use this unit within SIL‑rated safety instrumented loops?A: It delivers alarm and trip outputs, but this unit carries no native SIL certification. Complete safety‑system risk assessment must account for voting logic and redundancy requirements.
Q: Can newer‑generation monitor cards serve as drop‑in replacements?A: Physical form factor is similar, but backplane register mapping and channel processing logic differ. Direct drop‑in swap is not feasible; rack configuration and field wiring require modification.
