Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | AMAT 0190-49518 |
| Manufacturer | Applied Materials (AMAT) |
| Product category | Industrial Control Module |
| Input voltage range | 24V DC to 240V AC |
| Operating frequency | 50/60 Hz |
| Output voltage | +5V, +15V, -15V, +24V regulated DC |
| Number of input channels | 8 digital inputs (opto-isolated) |
| Number of output channels | 4 relay outputs (normally open/closed configurable) |
| Communication protocols | Modbus, Profibus |
| Interface | Standard Ethernet |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +80°C |
| Humidity | 10 to 90% RH, non-condensing |
| Protection class | IP65 |
| Dimensions | 14.7 cm x 5.15 cm x 11.4 cm |
| Weight | 0.6 kg |
| Certifications | CE, RoHS compliant |

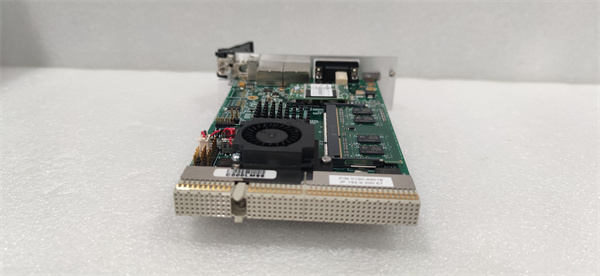

AMAT 0190-49518
Product Introduction
The AMAT 0190-49518 is a high-performance industrial control module designed for efficient and reliable control systems in manufacturing environments. It offers precise control and monitoring capabilities essential for industrial automation processes.
Core Advantages and Technical Highlights
Robust Construction: The 0190-49518 is built to withstand harsh industrial environments, ensuring long-term reliable operation.
Wide Input Voltage Range: The module supports a wide input voltage range (24V DC to 240V AC), making it suitable for diverse industrial environments.
Advanced Communication Protocols: It supports multiple communication protocols, including Modbus and Profibus, facilitating seamless integration with existing industrial networks.
High-Speed Processing: The module features high-speed processing capabilities and precision control, ensuring efficient operation and enhanced system reliability.
Compact Design: With dimensions of 14.7 cm x 5.15 cm x 11.4 cm and a weight of 0.6 kg, the module is compact and lightweight, facilitating easy installation and integration into existing systems.
AMAT 0190-49518
Typical Application Scenarios
The AMAT 0190-49518 is widely used in various industrial sectors, including:
-
Power Generation Plants: Used to control and monitor energy production, ensuring optimal efficiency and reliability.
-
Petrochemical Refineries: Enables precise automation of chemical processes, enhancing safety and productivity.
-
General Automation Processes: Provides versatile functionality to streamline operations and improve overall performance.
Related Model Recommendations
-
AMAT 0190-27952: A related module with similar control capabilities.
-
AMAT 0190-27953: Another module suitable for similar applications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the AMAT 0190-49518, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard 483 mm (19-in.) cabinet for secure installation.
Maintenance Suggestions
To maintain the AMAT 0190-49518, perform regular inspections of the unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
