Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | AMAT 0100-71313 |
| Manufacturer | Applied Materials (AMAT) |
| Product category | Industrial Input/Output Module |
| Input voltage range | 24V DC ±15% |
| Operating frequency | 47-63 Hz |
| Output voltage | +5V, +15V, -15V, +24V regulated DC |
| Number of channels | 16-channel, non-isolated |
| Input signal type | 4 to 20 mA |
| Communication protocols | Modbus/TCP, Modbus/RTU, EtherNet/IP, CC-Link family SLMP |
| Interface | Standard Ethernet |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Humidity | 10 to 90% RH, non-condensing |
| Protection class | IP20 |
| Dimensions | 150 mm x 100 mm x 50 mm |
| Weight | 2.3 kg |
| Certifications | CE, RoHS, UL compliant |

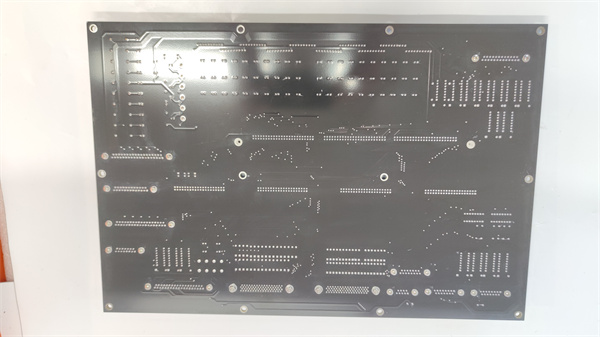

AMAT 0100-71313
Product Introduction
The AMAT 0100-71313 is a high-performance industrial input/output module designed for demanding automation applications. It is part of Applied Materials’ extensive lineup of automation products, known for their reliability and advanced technology. This module is used in semiconductor manufacturing processes, power management systems, and alarm signaling in high-voltage applications.
Core Advantages and Technical Highlights
High Precision and Reliability: The AMAT 0100-71313 offers robust performance and reliability, ensuring stable operation of control modules in various industrial applications.
Flexible Configuration: The unit supports multiple digital input and output channels, providing scalable power distribution and communication capabilities.
Advanced Communication: The unit supports multiple communication protocols, including Modbus/TCP, Modbus/RTU, EtherNet/IP, and CC-Link family SLMP, facilitating integration with existing industrial networks.
User-Friendly Design: The rear-mounted design of the AMAT 0100-71313 allows for easy integration into standard industrial control cabinets, simplifying installation and maintenance.

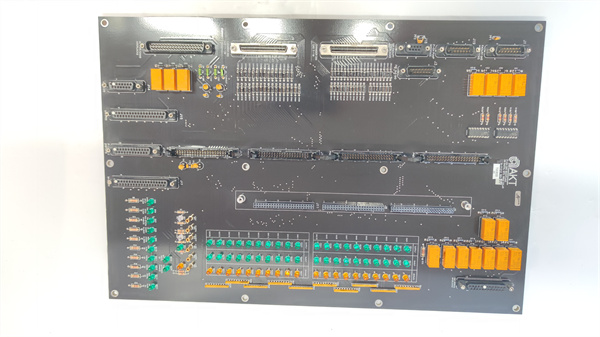

AMAT 0100-71313
Typical Application Scenarios
The AMAT 0100-71313 is widely used in various industrial sectors, including:
-
Semiconductor Manufacturing: Used in CVD equipment for real-time control and data processing.
-
Process Automation Systems: Housing modules for control and monitoring in industrial processes.
-
Power Plants: Supporting controllers and I/O modules in power generation environments.
Related Model Recommendations
-
AMAT 0100-71271: A related module with similar control capabilities.
-
AMAT 0100-71309: Another module suitable for similar applications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the AMAT 0100-71313, ensure that the environment meets the specified requirements, including an operating temperature range of 0 to 50 °C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard 483 mm (19-in.) cabinet for secure installation.
Maintenance Suggestions
To maintain the AMAT 0100-71313, perform regular inspections of the unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
