Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | AMAT 0100-71271 |
| Manufacturer | Applied Materials (AMAT) |
| Product category | VMEbus Digital I/O Module |
| Input voltage range | 24V DC ±20% |
| Operating frequency | 47-63 Hz |
| Output voltage | +5V, +15V, -15V, +24V regulated DC |
| Number of channels | Multiple digital input and output channels |
| Communication protocols | Modbus TCP/IP, Profibus DP, Ethernet, Controlway, Module Bus, I/O Expander Bus |
| Operating temperature | -20°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Protection class | IP20 |
| Dimensions | 135 mm x 186 mm x 119 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, RoHS |

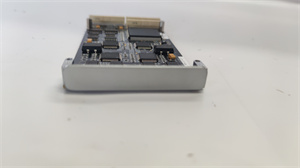

AMAT 0100-71271
Product Introduction
The AMAT 0100-71271 is a VMEbus-compliant digital I/O module designed to interface VMEbus-based systems with external devices and processes. This module allows the system to acquire digital signals from external sources and control external devices through digital outputs.
Core Advantages and Technical Highlights
High Performance and Reliability: The AMAT 0100-71271 offers robust performance and reliability, ensuring stable operation of control modules in various industrial applications.
Flexible Configuration: The unit supports multiple digital input and output channels, providing scalable power distribution and communication capabilities.
Advanced Communication: The unit supports multiple communication protocols, including Modbus TCP/IP, Profibus DP, and Ethernet, facilitating integration with existing industrial networks.
User-Friendly Design: The rear-mounted design of the AMAT 0100-71271 allows for easy integration into standard industrial control cabinets, simplifying installation and maintenance.

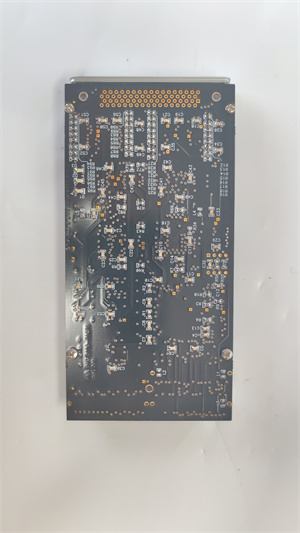

AMAT 0100-71271
Typical Application Scenarios
The AMAT 0100-71271 is widely used in various industrial sectors, including:
-
Process Automation Systems: Housing modules for control and monitoring in industrial processes.
-
Power Plants: Supporting controllers and I/O modules in power generation environments.
-
System Upgrades: Replacing older module mounting units while providing backward compatibility.
Related Model Recommendations
-
AMAT 0190-17964: A related module with similar control capabilities.
-
AMAT 0190-34795: Another module suitable for similar applications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the AMAT 0100-71271, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +70°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard 483 mm (19-in.) cabinet for secure installation.
Maintenance Suggestions
To maintain the AMAT 0100-71271, perform regular inspections of the unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
