Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | AMAT 0100-71224 |
| Manufacturer | Applied Materials (AMAT) |
| Product category | Industrial Control Counter Module |
| Description | High-precision counter module for industrial automation systems |
| Operating Voltage | 24V DC |
| Operating Temperature Range | 0°C to +60°C |
| Dimensions (W x H x D) | 14.7 cm x 5.15 cm x 11.4 cm |
| Weight | 0.6 kg |
| Communication | RS232, VMEbus |
| Certifications | SEMI S2, SEMI F47, CE |
| Compatibility | Compatible with AMAT P5000 systems |

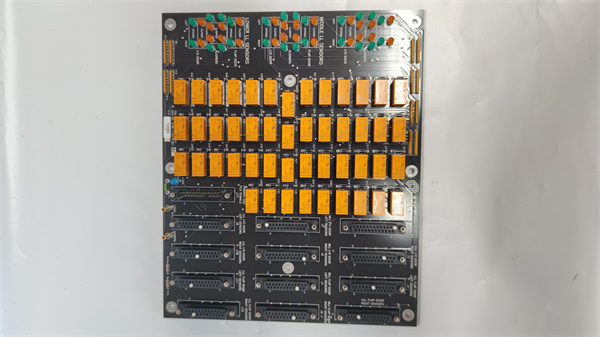

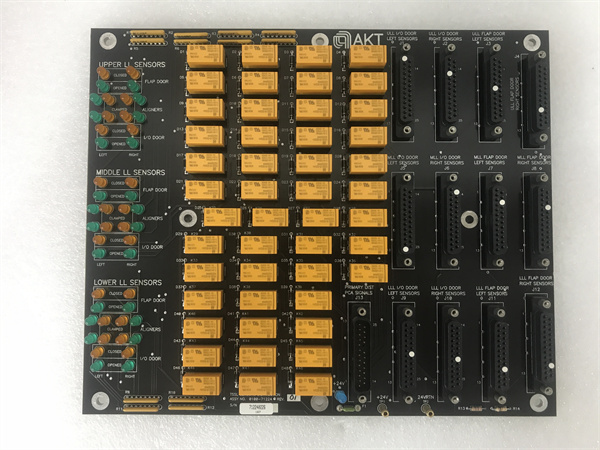

AMAT 0100-71224
Product Introduction
The AMAT 0100-71224 is a high-precision counter module designed for industrial automation systems. It is used for precise counting and data processing functions in various semiconductor manufacturing processes. This module is part of the AMAT P5000 system and is essential for ensuring accurate and reliable control in semiconductor fabrication processes.
Core Advantages and Technical Highlights
High Precision:
-
Ensures accurate counting and control of digital signals, suitable for high-precision applications.
Robust Design:
-
Built to withstand harsh industrial environments, ensuring long-term reliability.
Versatile Interfaces:
-
Features a variety of input and output interfaces, supporting digital and analog signals.
Wide Application Range:
-
Suitable for flow control, position control, speed control, and other industrial automation applications.
AMAT 0100-71224
Typical Application Scenarios
The AMAT 0100-71224 is widely used in various industrial sectors:
-
Semiconductor Manufacturing: For precise control during wafer processing and inspection.
-
Chemical and Pharmaceutical Industries: For accurate control in chemical reactions and pharmaceutical production.
-
Food and Beverage: For precise control in food processing and packaging.
-
Energy Sector: For monitoring and control in power plants and other energy-related processes.
Related Model Recommendations
-
AMAT P5000 System: The primary system that the 0100-71224 is designed to support.
-
AMAT 0100-09145: Video interconnect board for additional process control and monitoring.
-
AMAT 0100-20100: Analog input/output board for precise signal processing.
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
-
Ensure the environment meets the specified temperature and humidity requirements (0°C to +60°C). Use shielded cables and proper grounding to minimize electromagnetic interference.
Maintenance Suggestions:
-
Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Perform annual full calibration and quarterly leak checks (He mass spec recommended). Replace O-rings every 2 years and verify ground connections (impedance <1Ω).
Service and Guarantee Commitment
Applied Materials stands behind the quality and reliability of the 0100-71224, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Their dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
