Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | AMAT 0100-71267 |
| Manufacturer | Applied Materials (AMAT) |
| Product category | Industrial Control Module |
| Description | High-performance Industrial Automation Counter Module |
| Input Voltage | 24V DC (±10%) |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +125°C |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Protection Rating | IP66 |
| Dimensions (L x W x H) | 95 mm x 75 mm x 45 mm |
| Weight | 0.9 kg |
| Communication | RS-485, Modbus RTU, Ethernet (optional) |
| Certifications | CE, UL, ISO 9001:2015, RoHS compliant |
| Protocols Supported | Modbus RTU, Modbus TCP, Profibus DP (with additional adapter) |
| Input Signal Types | Pulse signals (up to 1 MHz frequency), Level signals (TTL/CMOS compatible), Encoder signals (incremental and absolute types supported) |
| Counting Range | 0 to 9,999,999,999 (10-digit display) |
| Counting Accuracy | ±0.001% of the count value |
| Overload Protection | Over-current protection, Over-voltage protection, Reverse-polarity protection |
| Power Consumption | Typical: 3.6W; Maximum: 5W |
| Display | High-contrast, 7-segment LED display |
| Data Storage | Non-volatile memory for storing up to 100 count profiles and configuration settings |
| Update Rate | Up to 100 times per second |

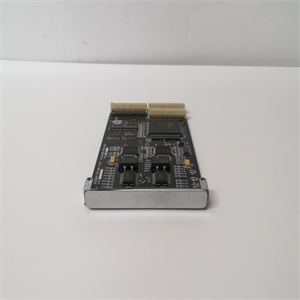

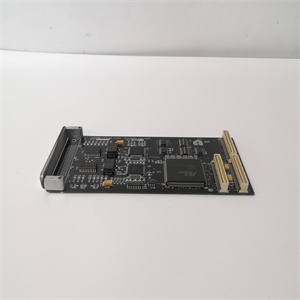

AMAT 0100-71267
Product Introduction
The AMAT 0100-71267 is a high-performance industrial automation counter module designed for precise control and monitoring in semiconductor manufacturing processes. It is part of the Applied Materials portfolio and is used for various applications requiring high-precision counting and control.
Core Advantages and Technical Highlights
High Precision:
-
Ensures accurate counting and control of digital signals, suitable for high-precision applications.
Robust Design:
-
Built to withstand harsh industrial environments, ensuring long-term reliability.
Versatile Interfaces:
-
Features a variety of input and output interfaces, supporting digital and analog signals.
Wide Application Range:
-
Suitable for flow control, position control, speed control, and other industrial automation applications.
Powerful Communication Capability:
-
Supports multiple communication protocols and interfaces, such as Ethernet, RS-485, and CAN bus, enabling seamless data exchange with other devices.
Environmental Adaptability:
-
Designed to operate reliably in harsh environments, including wide temperature ranges and high humidity.

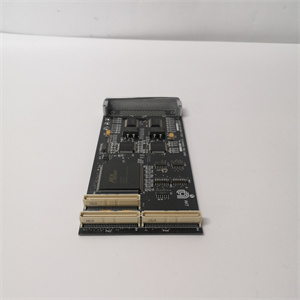

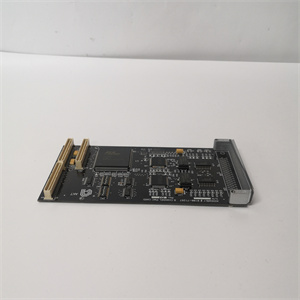

AMAT 0100-71267
Typical Application Scenarios
The AMAT 0100-71267 is widely used in various industrial sectors:
-
Semiconductor Manufacturing: For precise control during wafer processing and inspection.
-
Chemical and Pharmaceutical Industries: For accurate control in chemical reactions and pharmaceutical production.
-
Food and Beverage: For precise control in food processing and packaging.
-
Energy Sector: For monitoring and control in power plants and other energy-related processes.
Related Model Recommendations
-
AMAT P5000 System: The primary system that the 0100-71267 is designed to support.
-
AMAT 0100-09145: Video interconnect board for additional process control and monitoring.
-
AMAT 0100-20100: Analog input/output board for precise signal processing.
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
-
Ensure the environment meets the specified temperature and humidity requirements (-20°C to +70°C, 0% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference.
Maintenance Suggestions:
-
Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Perform annual full calibration and quarterly leak checks (He mass spec recommended). Replace O-rings every 2 years and verify ground connections (impedance <1Ω).
Service and Guarantee Commitment
Applied Materials stands behind the quality and reliability of the 0100-71267, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Their dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
