Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | AMAT 0100-71141 |
| Manufacturer | Applied Materials (AMAT) |
| Product category | Thermocouple Board |
| Description | High-precision thermocouple board for industrial automation systems |
| Operating Voltage | 24V DC |
| Memory Size | 16 MB SDRAM, 32 MB Flash |
| Power Consumption | Maximum 8.5W per non-fault-tolerant module |
| Operating Temperature Range | 0°C to +60°C |
| Dimensions (W x H x D) | 14.7 cm x 5.15 cm x 11.4 cm |
| Weight | 0.6 kg |
| Communication | RS232, VMEbus |
| Certifications | SEMI S2, SEMI F47, CE |
| Compatibility | Compatible with AMAT P5000 systems |

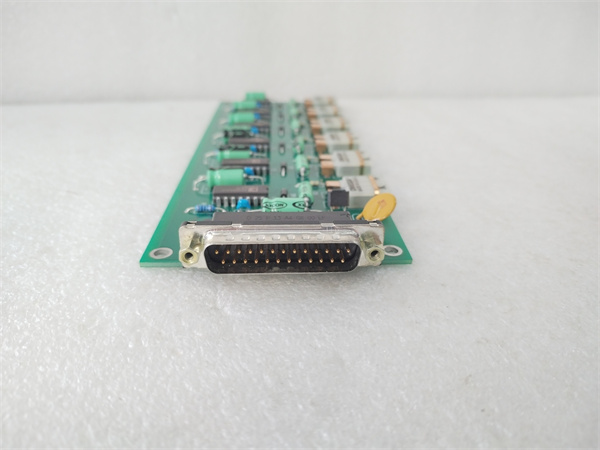

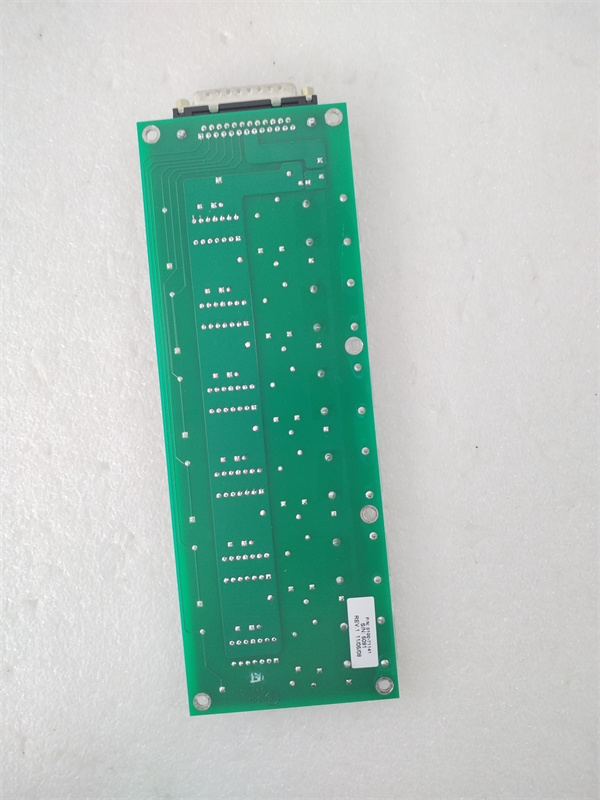

AMAT 0100-71141
Product Introduction
The AMAT 0100-71141 is a high-precision thermocouple board designed for industrial automation systems. It is used for precise temperature measurement and control in various semiconductor manufacturing processes. This board is part of the AMAT P5000 system and is essential for ensuring accurate and reliable temperature monitoring.
Core Advantages and Technical Highlights
High Precision Measurement:
-
Ensures accurate temperature measurement with high stability and reliability.
Long-Term Stability:
-
Designed for long-term use in harsh industrial environments.
Corrosion Resistance:
-
Suitable for use in various environments, including high humidity and corrosive conditions.
Easy Installation:
-
Compact design and easy-to-install structure make it suitable for a wide range of applications.
Multiple Output Options:
-
Supports various output options such as 4-20mA, 0-5V, etc., to meet different needs.
Wide Temperature Range:
-
Suitable for temperature measurement within a wide range, meeting various industrial requirements.

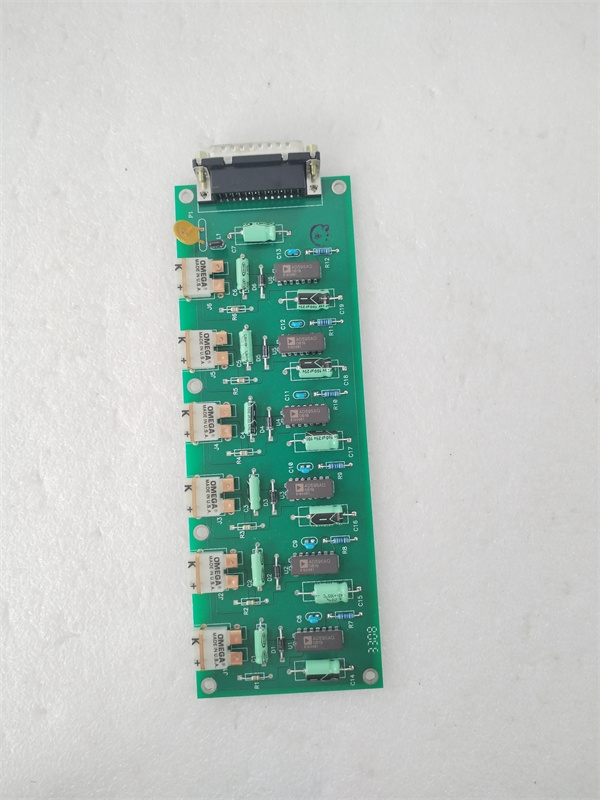

AMAT 0100-71141
Typical Application Scenarios
The AMAT 0100-71141 is widely used in various industrial sectors:
-
Semiconductor Manufacturing: For precise temperature control during wafer processing.
-
Chemical and Pharmaceutical Industries: For temperature monitoring in chemical reactions and pharmaceutical production.
-
Food and Beverage: For temperature control in food processing and storage.
-
Energy Sector: For temperature monitoring in power plants and other energy-related processes.
Related Model Recommendations
-
AMAT P5000 System: The primary system that the 0100-71141 is designed to support.
-
AMAT 0100-09145: Video interconnect board for additional process control and monitoring.
-
AMAT 0100-20100: Analog input/output board for precise signal processing.
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
-
Ensure the environment meets the specified temperature and humidity requirements (0°C to +60°C). Use shielded cables and proper grounding to minimize electromagnetic interference.
Maintenance Suggestions:
-
Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Perform annual full calibration and quarterly leak checks (He mass spec recommended). Replace O-rings every 2 years and verify ground connections (impedance <1Ω).
Service and Guarantee Commitment
Applied Materials stands behind the quality and reliability of the 0100-71141, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Their dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
