Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | AMAT 0100-00003 |
| Manufacturer | Applied Materials (AMAT) |
| Product Category | Stepper Drive PCB Card |
| Operating Voltage | 24V DC |
| Processor | Not specified |
| Memory | Not specified |
| I/O Interfaces | Not specified |
| Operating Temperature Range | 0°C to +60°C |
| Dimensions | 263 mm x 58 mm x 28 mm |
| Weight | 0.43 kg |
| Certifications | Not specified |

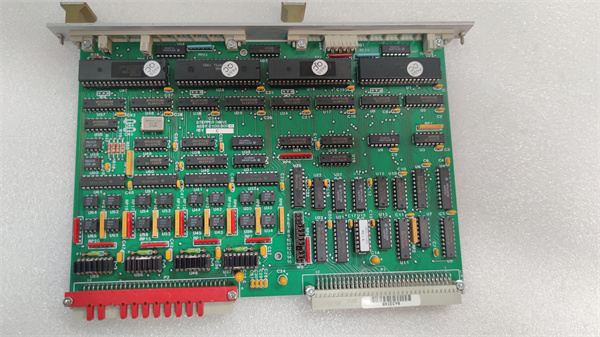

AMAT 0100-00003
Product Introduction
The AMAT 0100-00003 is a compact, B-sized VME stepper drive PCB card designed for use in semiconductor manufacturing processes. It is specifically designed to control stepper motors in wafer handling and processing systems.
Core Advantages and Technical Highlights
High Precision Control
The AMAT 0100-00003 is designed to provide precise control of stepper motors, ensuring accurate positioning and movement during semiconductor fabrication processes.
Robust Design
The module is designed to withstand harsh industrial environments, ensuring reliable operation in demanding conditions.
Compact and Lightweight
The AMAT 0100-00003 features a compact form factor and lightweight design, making it easy to integrate into existing systems.

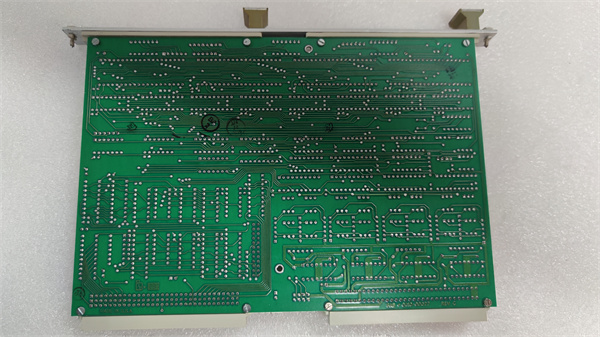

AMAT 0100-00003
Typical Application Scenarios
The AMAT 0100-00003 is widely used in:
-
Semiconductor Manufacturing: For controlling stepper motors in wafer handling and processing systems.
-
Industrial Automation: For precise control of stepper motors in various manufacturing processes.
Related Model Recommendations
-
ABB 07AI91: An analog input module suitable for applications requiring precise analog signal processing.
-
ABB PM581: A PLC module suitable for small systems.
-
ABB PM866K01: A PLC module suitable for large-scale automation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
