Description
Hard-Numbers: Technical Specifications
- Supply Voltage: 5/15/24 V DC (per system integration)
- Processor/Controller: 225 MHz operating frequency
- Communication Interfaces:
- VME bus (standard Alstom/GE backplane)
- Ethernet network interface
- CAN bus interface
- ICP232 module for RS-232 style serial communication
- Functions: Data acquisition, signal processing, control output, protocol bridging
- Operating Temperature Range: Industrial grade; typical range -20°C to +70°C (assumed per comparable modules)
- Dimensions and Weight: Estimated shipping dimensions approximately 25 cm (height) × 267 mm (length) × 191 mm (depth); weight around 0.4–1 kg (per distributor listings)
- Board Form Factor: Standard PCB for Alstom/GE control cabinets; designed for rack or backplane integration
- Environmental Rating: Industrial environment tolerant (vibration, EMC)
- Certifications: Industrial standard compliance (CE, UL, RoHS likely, per comparable modules; confirm per datasheet)

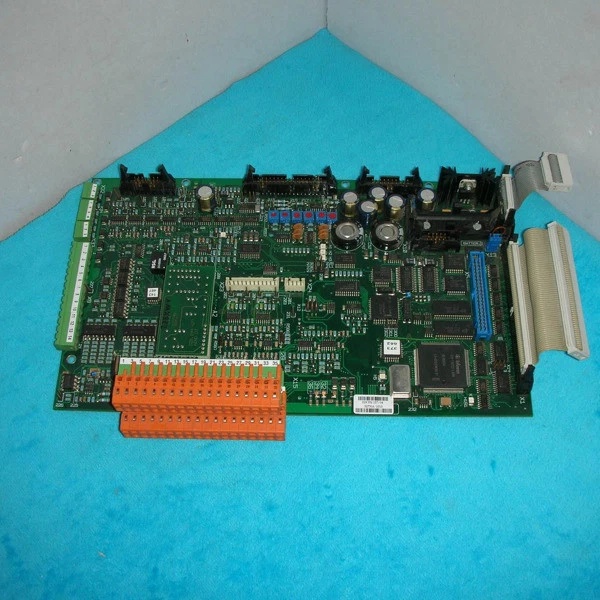

Alstom 029.374 089
The Real-World Problem It SolvesIndustrial drives and power conversion systems need a central control hub that can gather real-time data, execute control algorithms, and communicate with HMIs/SCADA and field I/O. The ICP232 029.359.325 provides that hub via VME integration, Ethernet/CAN connectivity, and local I/O/serial interfaces, enabling precise motor control, process automation, and remote monitoring in Alstom/GE systems.
Where you’ll typically find it:
- Alstom/GE industrial drives and converters (e.g., ALSPA MV3000 family, mid-voltage drives, wind turbine converters) – see spare parts listings referencing ICP232 alongside SPU232 and DIZ232 modules
- Power conversion equipment, including generator excitation and grid-tie converters
- General industrial automation (PLC-like roles in process lines, packaging, conveying, pump/compressor controls) where a generic Alstom control board is used
- Legacy Alstom installations requiring protocol bridging or control logic upgrades
Bottom-line: It’s a versatile Alstom controller board that combines VME-based control logic with Ethernet, CAN, and serial communication to manage data acquisition and control outputs in drives, converters, and general automation applications.
Hardware Architecture & Under-the-Hood LogicThe ICP232 is a controller/motherboard that integrates processing, communication, and I/O functionality for Alstom/GE systems.
-
Processing Unit:
- Operates at 225 MHz, providing sufficient compute for control algorithms and communication handling.
- Manages VME bus transactions as a node in the backplane.
-
Communication Interfaces:
- VME bus: Primary integration path to the rest of the system (e.g., processor modules like SPU232, I/O modules).
- Ethernet: Enables network connectivity to HMIs, SCADA, or engineering stations.
- CAN bus: Supports fieldbus communication to drives, sensors, or other controllers.
- ICP232/Serial: Provides RS-232 style point-to-point communication for local configuration or device interfacing.
-
I/O and Signal Conditioning:
- Provides digital and analog I/O channels for direct field signal interfacing.
- Handles data acquisition from sensors and control outputs to actuators.
-
Power Management:
- Accepts 5/15/24 V DC supply and generates required internal voltages.
- Includes protection (overvoltage/short circuit) per industrial norms.
-
Integration in Alstom/GE Systems:
- Works with companion modules such as SPU232 (processor), DIZ232 (digital input), and PIB101 (measurement) in drive/converter cabinets.
- Serves as a central or peripheral control node depending on system architecture.
Alstom 029.374 089
Field Service Pitfalls: What Rookies Get Wrong
- Incorrect Board Version/Compatibility:
- Verify that 029.359.325 matches the system’s control architecture and software/firmware revision. Using an incompatible controller can cause communication failures or unexpected behavior.
- Power Supply Miswiring:
- Ensure the DC supply (5/15/24 V) matches the board requirements and is connected with correct polarity. A miswired supply can damage the board.
- Loose VME/Backplane Connections:
- VME edge connectors or backplane pins must be fully seated and secure. Loose connections can cause intermittent communication or crashes, especially in high-vibration environments.
- Misconfigured Communication Protocols:
- Ethernet, CAN, or serial settings must match the system configuration. Incorrect IP addresses, baud rates, or CAN IDs can lead to loss of connectivity.
- Inadequate Grounding and Shielding:
- Poor grounding can introduce noise, causing erratic I/O readings or communication errors. Ensure proper PE connections and cable shielding per EMC guidelines.
- Ignoring Calibration and Parameter Backup:
- Before replacement, note or back up control parameters and calibration data if applicable. After installation, verify settings and perform any required calibration.
- Skipping Functional Testing:
- After installation, perform a full functional test including communication checks, I/O verification, and control loop responses before returning the system to service.
Commercial Availability & Pricing Note
- New, Refurbished, and Used Options:
- Suppliers list ICP232 029.359.325 as new, refurbished, or used. Pricing and lead times vary by supplier and condition.
- Sourcing Channels:
- Industrial automation spare parts distributors and Alstom/GE service partners are typical sources.
- Warranty and Support:
- Commonly offered with a 12-month warranty on refurbished/new items from some suppliers. Technical documentation may be limited; consult Alstom/GE or authorized service providers.
- Application Confirmation:
- Confirm compatibility with your specific system (drive/converter model, software version) before purchasing.
