Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | YT204001-KA/5 |
| Manufacturer | ABB |
| Product Category | Industrial Control Board |
| Operating Voltage Range | 24V DC |
| Input Current | ≤5A |
| Output Current | ≤2A |
| Communication Protocols | Ethernet, RS-485, MODBUS RTU |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions (L x W x H) | 11.2 cm x 7.7 cm x 2 cm |
| Weight | 0.08 kg |
| Certifications | UL, CE, ISO 9001 |

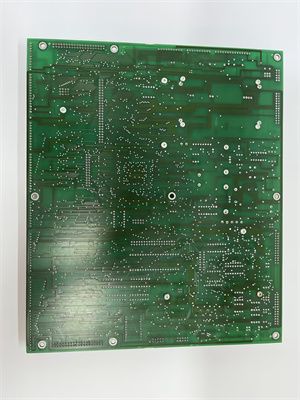

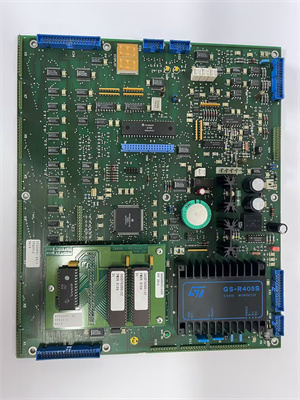

ABB YT204001-KA/5
Product Introduction
The ABB YT204001-KA/5 is a high-performance industrial control board designed for complex automation tasks. It features advanced microcontroller technology and supports a wide range of communication protocols, making it suitable for various industrial applications. The board is built to withstand harsh environmental conditions, ensuring reliable operation even under extreme temperatures.
Core Advantages and Technical Highlights
Advanced Microcontroller Technology: The YT204001-KA/5 boasts advanced microcontroller technology for unparalleled performance in complex industrial settings.
Robust Communication Interfaces: Equipped with Ethernet and RS-485 ports, the control board seamlessly integrates with various automation systems, enabling efficient data exchange and control over industrial processes.
Wide Operating Temperature Range: The board operates reliably within a temperature range of -20°C to +60°C, making it suitable for diverse industrial environments.
Customizable I/O Configurations: The YT204001-KA/5 supports customizable input/output configurations, allowing it to interface with a wide range of industrial devices.
Compact and Lightweight Design: With dimensions of 11.2 cm x 7.7 cm x 2 cm and a weight of 0.08 kg, the control board is easy to install and integrate into existing systems.

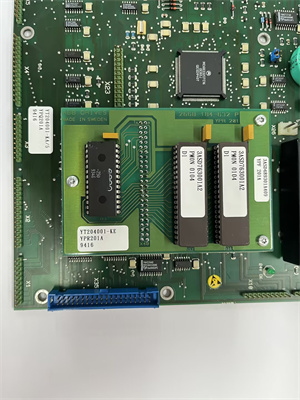

ABB YT204001-KA/5
Typical Application Scenarios
The ABB YT204001-KA/5 is widely used in various industrial sectors, including:
-
Manufacturing Automation: For precise control of robotic arms and assembly line machinery.
-
Process Control: In petrochemical plants and food processing facilities, ensuring consistent quality and efficiency.
-
Power Plants: For monitoring and controlling critical processes to optimize efficiency.
Related Model Recommendations
-
YPQ201A: A similar control board with advanced features, suitable for high-speed, high-precision control applications.
-
YT204001-CR: An adaptation unit for specific control system requirements.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation location meets the specified temperature and humidity requirements. Mount the board securely on a DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.
Service and Guarantee Commitment
The ABB YT204001-KA/5 is backed by ABB’s comprehensive support and quality assurance. The board comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
