Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | XVC769AE101 3BHE006373R0101 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Input Voltage | 220V AC ±10% |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 0% to 95% RH non-condensing |
| Dimensions (L x W x H) | 173 mm x 100 mm x 32 mm |
| Weight | 0.2 kg |
| Communication Protocols | Modbus TCP/IP, RS-485, Modbus RTU |
| Certifications | CE, UL, ISO 9001 |

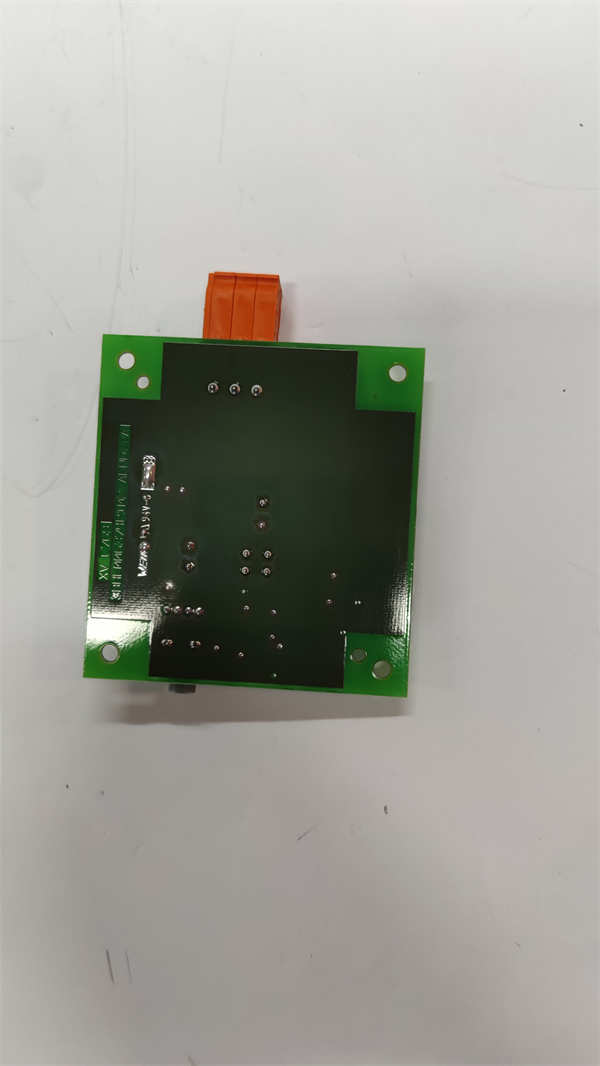

XVC769AE101 3BHE006373R0101
Product Introduction
The ABB XVC769AE101 3BHE006373R0101 is a high-performance industrial control module designed for advanced automation systems. It offers robust processing capabilities, enhanced communication interfaces, and extensive compatibility with ABB’s control systems. This module is ideal for applications requiring high precision and reliability, such as process control, machine control, and system monitoring.
Core Advantages and Technical Highlights
Advanced Processing: The module features a high-speed processor for real-time control, ensuring efficient data processing and precise control over industrial processes.
Robust Communication Capabilities: The XVC769AE101 3BHE006373R0101 supports multiple communication protocols, including Modbus TCP/IP, RS-485, and Modbus RTU, enabling seamless integration with various control systems.
Wide Operating Conditions: The module operates reliably within a temperature range of -20°C to +60°C and can be stored between -40°C and +85°C. It also features an IP20 protection rating, ensuring resistance to dust and water ingress.
Energy Efficiency: With a power consumption of only 2W, the module is highly energy-efficient, reducing operational costs.
Modular Design: The unit is easy to install and maintain, allowing for quick setup and minimal downtime. Its compact design (173 mm x 100 mm x 32 mm) and lightweight construction (0.2 kg) make it suitable for space-constrained industrial environments.

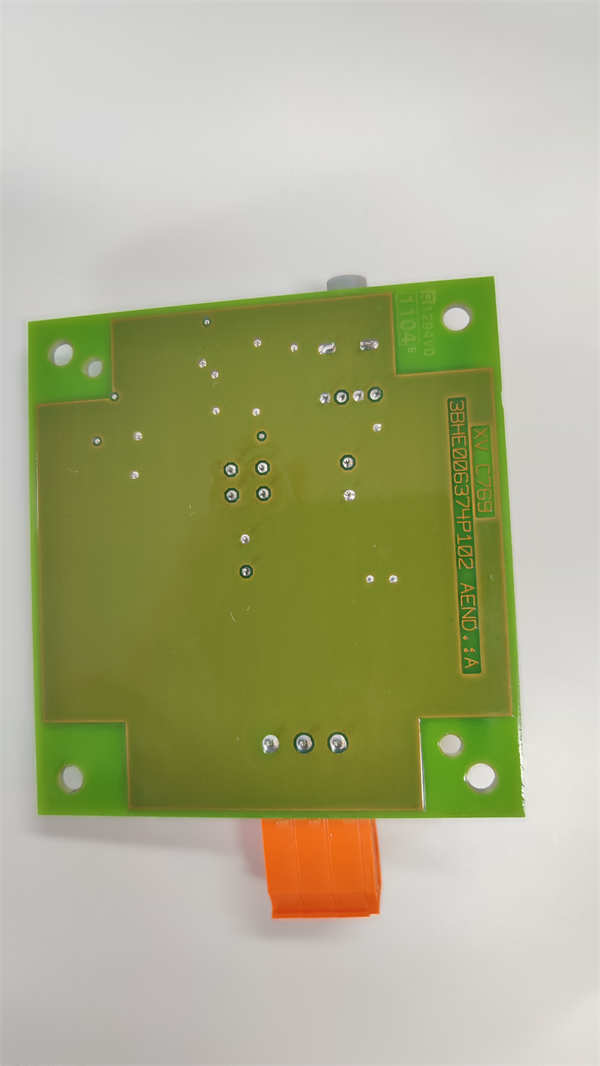

XVC769AE101 3BHE006373R0101
Typical Application Scenarios
The ABB XVC769AE101 3BHE006373R0101 is widely used in various industrial sectors, including:
-
Manufacturing: For precise control and monitoring of automated manufacturing processes.
-
Energy: For efficient energy management and control in power generation plants.
-
Transportation: For ensuring smooth operation and safety in transportation systems.
-
Chemical Processing: For precise control in chemical processing plants, ensuring optimal productivity.
Related Model Recommendations
-
ABB PM851: A high-performance processor for fast data processing.
-
ABB TP830: An advanced control module with enhanced functionality.
-
ABB CMA 132 3DDE300412: A compatible control system module.
-
ABB DO880: A digital output module for industrial automation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation location meets the specified temperature and humidity requirements. Mount the module securely on a DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.
Service and Guarantee Commitment
The ABB XVC769AE101 3BHE006373R0101 is backed by ABB’s comprehensive support and quality assurance. The module comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
