Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB UAD142A01 3BHE012551R0001 |
| Manufacturer | ABB |
| Product Category | Industrial Automation Controller |
| Processor | Dual-core 1.5 GHz ARM Cortex-A9 |
| Memory | 2GB DDR3 RAM, 8GB Flash |
| Input Voltage | 24V DC (18-30V range) |
| Power Consumption | 20W typical, 35W max |
| Operating Temperature | -40°C to +70°C |
| Communication | 2x Gigabit Ethernet, 4x USB, 1x RS-485 |
| Protocol Support | OPC UA, Modbus TCP, PROFINET, EtherNet/IP |
| Cybersecurity | IEC 62443-4-2 compliant |
| Safety Rating | SIL 3 (IEC 61508) |
| Dimensions | 150 × 100 × 75 mm |
| Weight | 800g |
| Certifications | UL, CE, ATEX Zone 2 |

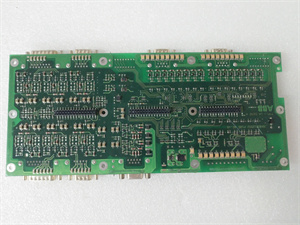

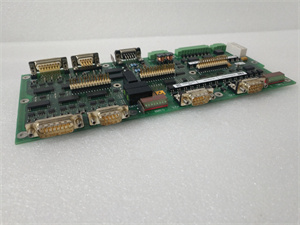

ABB UAD142A01 3BHE012551R0001
Product Introduction
The ABB UAD142A01 3BHE012551R0001 represents the next generation of universal automation controllers, designed for mission-critical industrial applications. As part of ABB’s Automation Builder ecosystem, this advanced controller combines high-performance computing with industrial-grade reliability, making it ideal for process automation, discrete manufacturing, and hybrid control applications.
Featuring dual-core processing power and extensive connectivity options, the UAD142A01 enables seamless integration between operational technology (OT) and information technology (IT) systems. Its cyber-secure architecture and SIL 3 safety certification make it particularly suitable for critical infrastructure protection in industries such as oil & gas, power generation, and pharmaceutical manufacturing.
Core Advantages and Technical Highlights
High-Performance Computing
1.5 GHz dual-core ARM Cortex-A9 processor
Deterministic control with ≤1ms cycle times
2GB RAM for complex control strategies
8GB Flash storage for data logging
Industrial Connectivity
Dual Gigabit Ethernet ports with switch functionality
Native OPC UA server/client capability
Multi-protocol support (PROFINET, EtherNet/IP, Modbus TCP)
Time-sensitive networking (TSN) ready
Cybersecurity & Safety
Secure boot with hardware root of trust
Role-based access control (RBAC)
SIL 3 certified for safety-critical applications
Encrypted communication (TLS 1.3)
Rugged Design
Extended temperature range (-40°C to +70°C)
Vibration resistant (5g @ 10-150Hz)
Optional IP65 enclosure available
ATEX Zone 2 certified version
Advanced Diagnostics
Predictive maintenance capabilities
Black-box recorder for fault analysis
Hot-swappable I/O modules

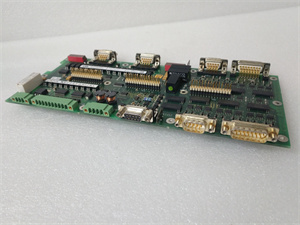

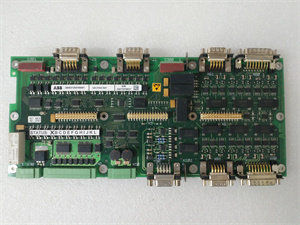

ABB UAD142A01 3BHE012551R0001
Typical Application Scenarios
Oil & Gas
Offshore platform control systems
Pipeline compressor station automation
Safety instrumented systems (SIS)
Power Generation
Turbine control systems
Renewable energy integration
Grid stability applications
Pharmaceutical
GMP-compliant batch processing
Cleanroom automation
Serialization systems
Water & Wastewater
Large-scale treatment plant control
Pump station optimization
SCADA integration
Discrete Manufacturing
Automotive production lines
Robotic cell control
Quality inspection systems
Related Model Recommendations
ABB UAD132A01 – Compact version with reduced I/O
ABB UAD152A01 – Enhanced performance model
ABB UIO122A01 – Universal I/O extension module
ABB UCOM122A01 – Communication gateway
ABB UPS122A01 – Redundant power supply
ABB UHMI122A01 – Industrial HMI panel
ABB USAF122A01 – Safety controller module
Installation & Commissioning
Mounting Guidelines
DIN rail mounting (35mm) or panel mounting
50mm clearance required for ventilation
Shielded cables for all communication ports
Proper grounding for EMI protection
Commissioning
Automation Builder configuration software
Auto-discovery of connected I/O modules
Pre-configured function blocks for common applications
Virtual commissioning capabilities
Maintenance
Condition monitoring via embedded diagnostics
Firmware updates through secure portal
Predictive maintenance alerts
Module replacement without system shutdown
Service & Warranty
36-month standard warranty
24/7 global technical support
On-site commissioning services
Cybersecurity assessment
Lifecycle management program
10+ years spare parts availability
Conclusion
The ABB UAD142A01 3BHE012551R0001 sets a new standard for universal automation controllers, combining unparalleled processing power, industrial robustness, and future-proof connectivity. Its cyber-secure design and SIL 3 safety certification make it the ideal choice for next-generation industrial automation systems requiring high availability and cyber resilience.
