Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | REF615C_C HCFFAEAGANB2BAN1XC |
| Manufacturer | ABB |
| Product Category | Feeder Protection Relay (IEC) |
| Protection Functions | 50/51, 50N/51N, 67, 67N, 46, 79, 81H/L, ARC (Arc Flash Detection) |
| Measurement Accuracy | ±0.5% voltage, ±1% current |
| IEC 61850 Support | Ed. 2.1 (GOOSE, MMS, Sampled Values) |
| Arc Protection | Integrated 3x light + 1x pressure sensors |
| Communication Ports | 2x Ethernet, 1x RS485, 1x USB |
| Operating Voltage | 48-250 VDC/100-240 VAC |
| Fault Recorder | 128 cycles @ 4 kHz sampling |
| Cybersecurity | IEC 62443-3-3, Role-Based Access, HW Secure Boot |
| Operating Temperature | -40°C to +70°C |
| Certifications | IEC 60255, UL 1053, DNV-GL, ATEX |
| Dimensions (H×W×D) | 144 × 142 × 155 mm |

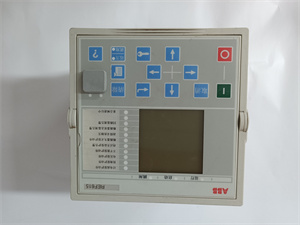

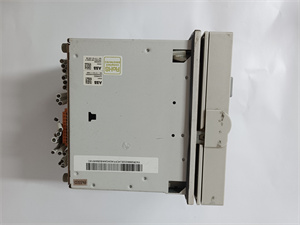

ABB REF615C_C HCFFAEAGANB2BAN1XC
Product Introduction
The ABB REF615C_C HCFFAEAGANB2BAN1XC is an advanced feeder protection relay engineered for medium-voltage switchgear (up to 15 kV), integrating arc flash detection and comprehensive protection in a compact platform. This specific variant features hardware-accelerated ARC (Arc Protection) functionality with native light/pressure sensor inputs, reducing fault clearance time to <4 ms – critical for personnel safety. The relay executes 12 protection functions concurrently, including directional overcurrent (67) and sensitive earth fault (50N/51N), while supporting IEC 61850 Ed.2.1 process bus architecture.
Designed for harsh environments, its “-40°C” rating and ATEX compliance enable deployment in LNG terminals and mining substations. The REF615C_C variant includes enhanced transient recording (128 cycles) for detailed fault analysis and conformal-coated PCBs for humidity resistance. As part of ABB’s Relion® 615 series, it seamlessly integrates with ABB’s UFC921A101 OPC UA gateways for enterprise data exchange.
Core Advantages and Technical Highlights
Ultra-Fast Arc Mitigation: Integrated optical (3 channels) + pressure (1 channel) sensor inputs trigger trip signals in 2-4 ms – 3× faster than external systems. Patented light-intensity discrimination ignores welding flashes.
Cybersecurity Hardening: Hardware-enforced secure boot chain with TPM 2.0. Configuration changes require physical keys + biometric authentication. Audit trails meet NERC CIP-014.
Dynamic Grid Adaptation:
Auto-calibration for CT saturation (detects >15% error)
Adaptive cold load pickup logic prevents nuisance tripping
Synchrophasor measurement (IEEE C37.118.1) for grid instability detection
Unified Diagnostics:
Real-time contact erosion monitoring (% wear calculation)
Insulation resistance trending (predicts cable degradation)
Arc sensor self-test with optical path verification
Seamless Integration:
Plug-and-play with ABB’s 3BHE039203R0101 I/O modules
Pre-mapped GOOSE signals for breaker failure schemes
Typical Application Scenarios
Offshore Wind Substations:
Detects arc faults in salt-fog-exposed switchgear
Directional overcurrent (67N) prevents false trips during cable switching transients
IEC 61850 GOOSE coordinates with turbine protection
Steel Mill MCCs:
Monitors 6kV motor feeders with 46 negative-sequence protection
Pressure sensors detect arc blasts behind closed panels
Survives 50g shock during slab handling
Data Center Power Chains:
81H/81L frequency protection maintains UPS synchronization
Light sensors installed in busway joints
Cyber-hardened configuration blocks unauthorized access

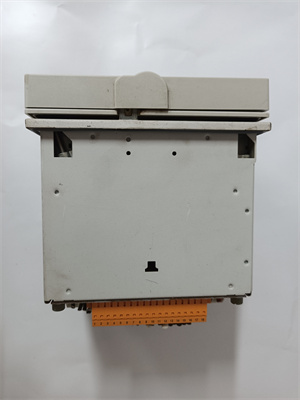

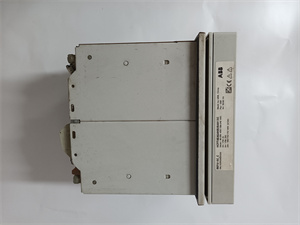

ABB REF615C_C HCFFAEAGANB2BAN1XC
Related Model Recommendations
REX615: Overcurrent relay with distance protection
REC615: Bay controller for substation automation
CM-UFD: Universal field module for arc sensor expansion
RDU615: Local HMI for REF615C_C commissioning
SDCS-CON-2: Fiber-optic converter for IEC 61850-9-2LE
TA25-0.5: Class 0.5 current transformer kit
OTDS001: Optical trip detection sensor
Installation, Commissioning & Maintenance
Installation Preparation:
Mount vertically on switchgear door (IP54 rating)
Position arc sensors ≤7m from protection zone
Use shielded CAT7 cables for Ethernet (90° bend radius)
Apply torque of 0.6 N·m to CT terminals
Commissioning:
Validate light sensor alignment with test gun
Configure pressure sensor thresholds (15-30 kPa)
Enable HW security keys via PCM600 software
Maintenance Regimen:
Quarterly: Verify arc sensor optical path (clean IR windows)
Biannual: Test trip logic via secondary injection (OMICRON Test Universe)
Annual: Calibrate pressure sensors with deadweight tester
Critical Alerts: Red “ARC” LED = sensor fault; Flashing “COMM” = GOOSE loss
Service and Guarantee Commitment
ABB provides a 10-year warranty for the REF615C_C HCFFAEAGANB2BAN1XC, including:
24/7 Priority Support: 15-min response for arc protection incidents
Firmware Assurance: Security updates until 2040
On-Site SIL Validation: IEC 61508 compliance certification
Repair Program: Flat-rate exchange (72-hr global turnaround)
Cybersecurity Audits: Annual penetration testing
Lifecycle Management: Hardware refresh options pre-EoL
