ABB PP865 3BSE042236R1 Product Overview
The ABB PP865 3BSE042236R1 is a high-performance process controller from ABB’s AC 800M family, designed for mission-critical automation applications in industries such as oil & gas, power generation, and chemical processing. This advanced controller delivers powerful processing capabilities with high reliability and redundancy options for demanding control environments.
Key Features
✔ Powerful CPU for complex control strategies
✔ Redundant configuration support
✔ Extensive I/O connectivity options
✔ Cyber security hardened design
✔ Long-term availability guarantee
Technical Specifications
| Parameter | Specification |
| Manufacturer Part Number | 3BSE042236R1 |
| Product Line | AC 800M |
| Controller Type | Process Controller |
| CPU | 800MHz PowerPC |
| Memory | 512MB DRAM, 128MB Flash |
| Execution Speed | 0.1ms for Boolean operations |
| Communication Ports | 2× Ethernet, 1× RS-232, 1× USB |
| Redundancy | Supported (with PP865 3BSE042237R1) |
| Operating Temperature | 0°C to +60°C |
| Power Supply | 24V DC (18-32V range) |
| Certifications | CE, UL, ATEX (Zone 2) |
ABB PP865 3BSE042236R1
Main Features & Advantages
1. High-Performance Control
1ms control cycle time for fast loops
Supports IEC 61131-3 programming
Advanced PID control algorithms
2. Robust System Architecture
Hot-swappable components
Redundant power and communication
Vibration-resistant design
3. Enhanced Cyber Security
Secure boot functionality
Role-based access control
Communication encryption
Application Field
Process Industries
Distributed Control Systems (DCS)
Safety Instrumented Systems (SIS)
Batch process control
Power Generation
Turbine control systems
Boiler control
Balance of plant automation
Infrastructure
Water treatment plants
Pipeline monitoring
Compressor station control

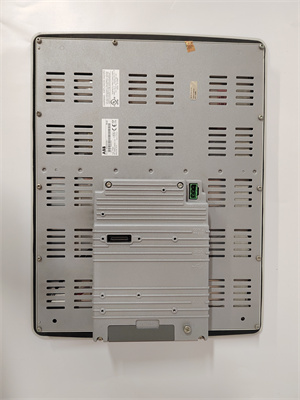

ABB PP865 3BSE042236R1
Related Products
| Model | Description |
| PP865 3BSE042237R1 | Redundant pair controller |
| PM856 3BSE018105R1 | Compact controller |
| CI854 3BSE018144R1 | Communication interface |
| TB840 3BSE020508R1 | Termination board |
Installation & Maintenance
Installation Requirements
Standard 19″ rack mounting
Proper ventilation clearance
Correct grounding procedures
Maintenance Best Practices
Regular firmware updates
Periodic backup of configuration
Redundancy system checks
