Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB PFCL201C 20KN |
| Manufacturer | ABB |
| Product Category | Force Control Load Cell |
| Capacity | 20 kilonewtons (kN) |
| Accuracy | ±0.1% of full scale |
| Output Signal | 4-20mA analog / CANopen digital |
| Excitation Voltage | 10-30V DC |
| Operating Temp | -20°C to +85°C |
| Protection Rating | IP67 |
| Housing Material | Stainless steel (AISI 304) |
| Load Direction | Compression/Tension |
| Certifications | CE, RoHS, OIML R60 |

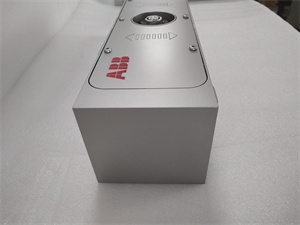

ABB PFCL201C 20KN
Product Introduction
The ABB PFCL201C 20KN is a high-precision force measurement load cell designed for industrial automation and process control applications. Part of ABB’s force measurement portfolio, this robust device provides accurate force monitoring in demanding production environments.
Engineered for reliability, the PFCL201C 20KN combines advanced strain gauge technology with durable stainless steel construction. Its dual output options (4-20mA and CANopen) make it compatible with both conventional and modern digital control systems. The device is particularly valuable in applications requiring precise force control, such as press monitoring, material testing, and assembly verification.
Core Advantages and Technical Highlights
Precision Measurement:
±0.1% FS accuracy ensures reliable process control
Low creep (<0.05% FS) for stable long-term measurements
Rugged Construction:
IP67-rated stainless steel housing withstands harsh industrial environments
Hermetically sealed for protection against dust and moisture ingress
Flexible Integration:
Dual analog (4-20mA) and digital (CANopen) output options
Standardized mounting interfaces for easy installation
Advanced Diagnostics:
Built-in self-test functionality
Overload protection up to 150% of rated capacity
Industry Compliance:
Meets OIML R60 requirements for legal metrology
RoHS-compliant materials and manufacturing

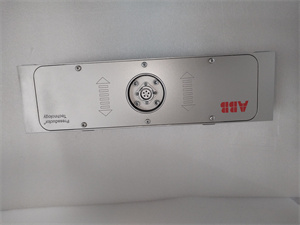

ABB PFCL201C 20KN
Typical Application Scenarios
Automotive Manufacturing:
Press force monitoring in stamping operations
Assembly verification for critical components
Metal Forming:
Real-time force control in rolling mills
Forging press monitoring and optimization
Packaging Industry:
Compression testing of packaging materials
Filling machine force control
Material Testing:
Laboratory and production-line material strength testing
Quality control in composite material manufacturing
Heavy Industry:
Crane and hoist load monitoring
Structural load testing
Related Model Recommendations
ABB PFCL101C 10KN – Lower capacity version for smaller force ranges
ABB PFCL301C 50KN – Higher capacity model for heavy-duty applications
ABB PFTL101 – Tension-only load cell
ABB PFSL201 – Shear beam load cell
ABB PFIA101 – Signal conditioner for analog load cells
ABB CI871K01 – Communication interface for digital integration
Installation, Commissioning and Maintenance
Installation Guidelines:
Ensure proper alignment of force application
Use recommended mounting hardware (included)
Avoid side loads and torque during installation
Verify environmental conditions within specifications
Commissioning:
Perform zero calibration before first use
Verify signal output at known load points
Configure CANopen parameters as needed
Maintenance:
Regular visual inspection for mechanical damage
Annual recalibration recommended
Check cable integrity and connections periodically
Service and Guarantee Commitment
ABB provides a 24-month warranty for the PFCL201C 20KN. Comprehensive support includes:
Calibration services at ABB-certified facilities
Technical support for integration and troubleshooting
Repair and recalibration programs
Traceable calibration certificates available
Custom configuration options for special applications
