Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB O4LE 1KHL015545R0001 |
| Manufacturer | ABB |
| Product category | Input/Output Module |
| Operating Voltage | 24V DC |
| Operating Temperature Range | -25°C to +70°C |
| Dimensions (W x H x D) | 125 mm x 230 mm x 55 mm |
| Weight | 0.24 kg |
| Communication Interface | MODBUS RTU, Profibus DP, Ethernet/IP |
| Number of Channels | 16 Inputs / 16 Outputs |
| Protection Rating | IP20 |
| Certifications | CE, UL, RoHS |

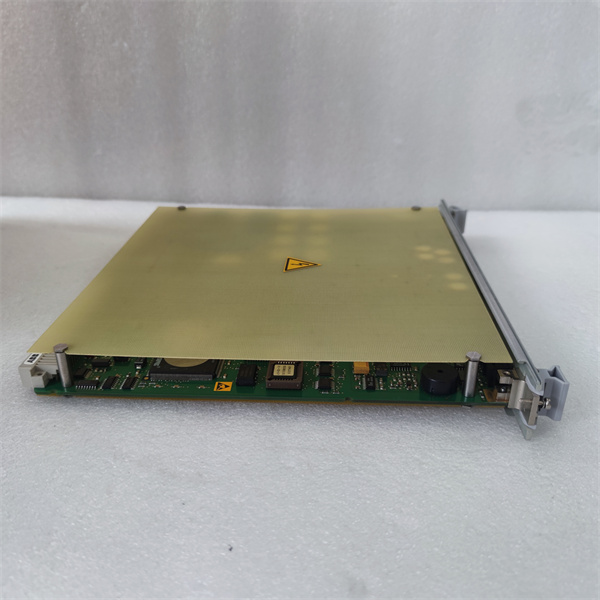

ABB O4LE 1KHL015545R0001
Product Introduction
The ABB O4LE 1KHL015545R0001 is a high-performance input/output module designed for industrial automation applications. It provides reliable and efficient signal termination for digital input and output signals, ensuring precise data transmission and enhanced system reliability. The module is part of the ABB O4LE series and is widely used in various industrial control systems.
Core Advantages and Technical Highlights
High Reliability and Stability:
-
The ABB O4LE 1KHL015545R0001 is designed for harsh industrial environments, with an operating temperature range of -25°C to +70°C. It features overcurrent and short-circuit protection, ensuring long-term stable operation.
Robust Industrial Design:
-
The module has an IP20 protection rating, making it resistant to dust and splashing water. Its compact design allows for easy installation in tight spaces.
Advanced Communication Capabilities:
-
The module supports multiple communication protocols, including MODBUS RTU, Profibus DP, and Ethernet/IP, ensuring seamless integration with existing control systems.
Easy Integration and Configuration:
-
The ABB O4LE 1KHL015545R0001 can be easily configured using ABB’s Control Builder M software. It supports hot-swapping, reducing downtime during maintenance.
Energy Efficiency:
-
The module consumes minimal power, reducing operational costs while maintaining high performance.

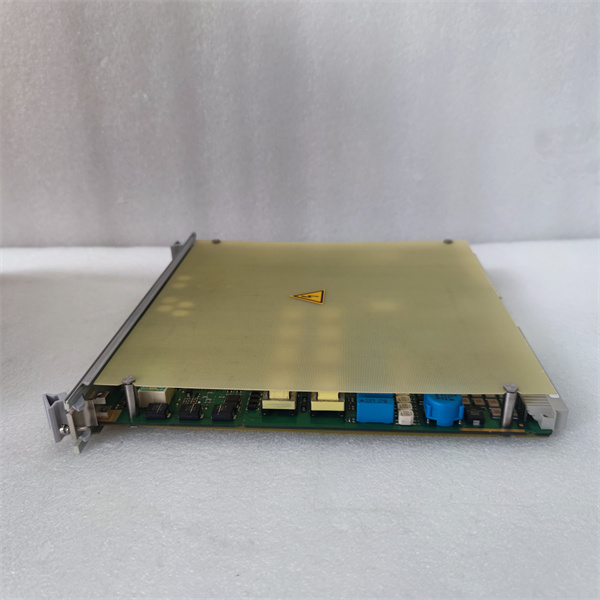

ABB O4LE 1KHL015545R0001
Typical Application Scenarios
The ABB O4LE 1KHL015545R0001 is widely used across various industrial sectors:
-
Manufacturing: For precise control of robotic arms, CNC machines, and packaging lines.
-
Energy Management: For monitoring and controlling valve positions and conveyor belts in power plants.
-
Process Control: For precise position and speed control in industrial processes.
-
Robotics: For joint control and motion synchronization in robotic systems.
Related Model Recommendations
-
ABB ACS800: A frequency converter that works seamlessly with the ABB O4LE 1KHL015545R0001 for complete control solutions.
-
ABB ACS850: Another compatible frequency converter that benefits from the control capabilities of the ABB O4LE 1KHL015545R0001.
-
ABB ACS550: A versatile frequency converter that can utilize the ABB O4LE 1KHL015545R0001 for enhanced control.
-
ABB NDCU-21C: A drive control unit that complements the ABB O4LE 1KHL015545R0001 for advanced control applications.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
-
Ensure the installation environment meets the specified temperature and humidity requirements. The module should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the module.
Maintenance Suggestions:
-
Regularly inspect the installation to ensure the module is securely mounted and all connections are tight. Monitor the operational status of the module to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB O4LE 1KHL015545R0001, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
