Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB NDPI-02 58914444 |
| Manufacturer | ABB |
| Product category | Industrial Control Module |
| Operating Voltage | 24V DC |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions (W x H x D) | 115 mm x 60 mm x 30 mm |
| Weight | 0.2 kg |
| Communication Interface | RJ45 (2 ports), Profibus DP, DeviceNet |
| Certifications | CE, UL, ATEX certified |
| Supported Protocols | Profibus DP, DeviceNet, Modbus RTU, Modbus TCP/IP |
| Typical Power Consumption | 2W |

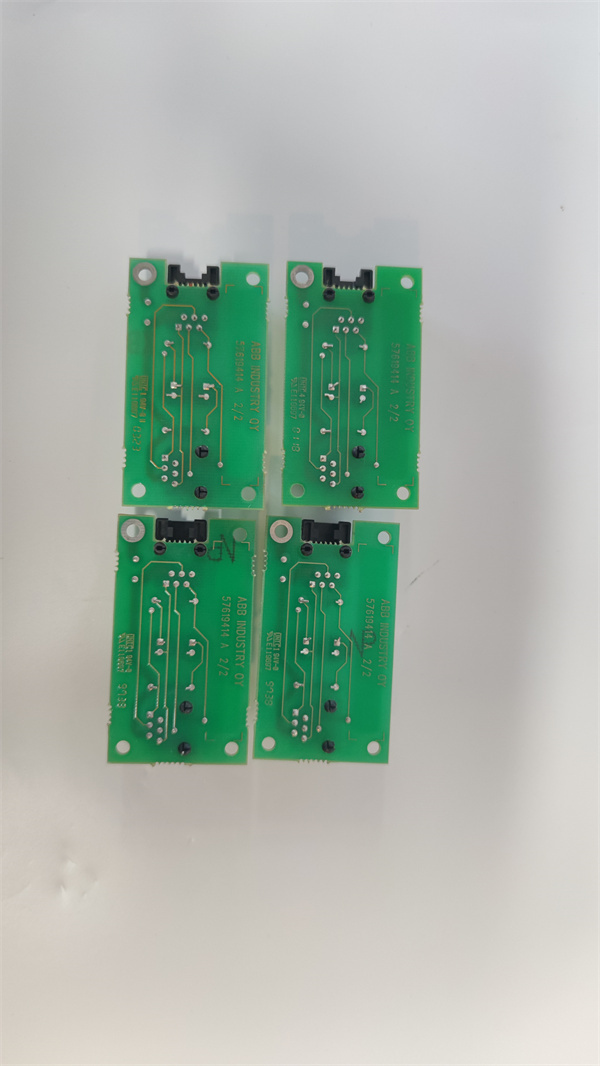

ABB NDPI-02 58914444
Product Introduction
The ABB NDPI-02 58914444 is a high-performance industrial control module designed for precise process automation applications. It provides reliable performance in various industries, including manufacturing, energy management, and logistics. The module is part of the ABB Ability™ I/O Modules (NB) series, offering high reliability and flexibility for industrial automation systems.
Core Advantages and Technical Highlights
High Reliability and Durability:
-
The ABB NDPI-02 58914444 is designed for harsh industrial environments, with an operating temperature range of -40°C to +85°C and an IP67 protection rating. It features a robust stainless steel enclosure, ensuring long-term durability.
Advanced Communication Capabilities:
-
The module supports multiple communication protocols, including Profibus DP, DeviceNet, Modbus RTU, and Modbus TCP/IP, ensuring seamless integration with existing control systems. It also includes two RJ45 ports for flexible network connections.
Ease of Use and Maintenance:
-
The ABB NDPI-02 58914444 features a modular design, making installation and maintenance straightforward. Its compact size (115 mm x 60 mm x 30 mm) and lightweight design (0.2 kg) allow for easy integration into tight spaces. The module also includes comprehensive diagnostic tools, simplifying setup and troubleshooting.
Energy Efficiency:
-
With a typical power consumption of only 2W, the ABB NDPI-02 58914444 is designed to optimize energy use without compromising performance.

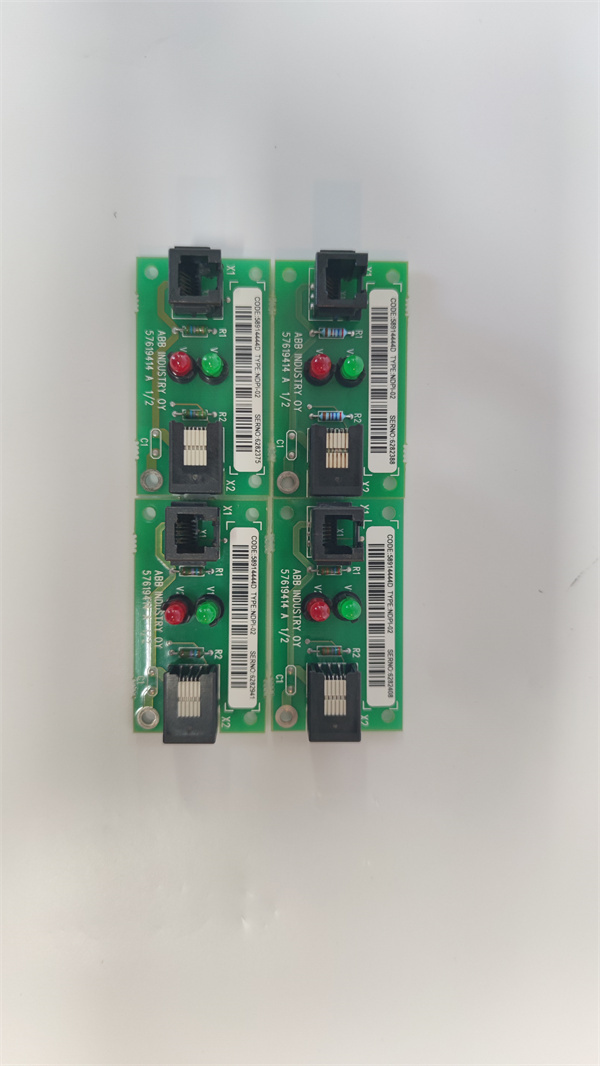

ABB NDPI-02 58914444
Typical Application Scenarios
The ABB NDPI-02 58914444 is widely used across various industrial sectors:
-
Manufacturing Automation: For precise control of motors in production lines, ensuring high efficiency and reliability.
-
Energy Management: Used in power plants and substations to optimize the performance of electrical equipment.
-
Logistics: In material handling systems, such as conveyor belts and robotic arms, to ensure smooth and efficient operation.
-
Process Control: For monitoring and controlling key parameters in industrial processes, such as temperature, pressure, and flow.
Related Model Recommendations
-
ABB ACS800: A frequency converter that works seamlessly with the ABB NDPI-02 58914444 for complete control solutions.
-
ABB ACS850: Another compatible frequency converter that benefits from the control capabilities of the ABB NDPI-02 58914444.
-
ABB ACS550: A versatile frequency converter that can utilize the ABB NDPI-02 58914444 for enhanced control.
-
ABB NDCU-21C: A drive control unit that complements the ABB NDPI-02 58914444 for advanced control applications.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
-
Ensure the installation environment meets the specified temperature and humidity requirements. The control module should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the module.
Maintenance Suggestions:
-
Regularly inspect the installation to ensure the control module is securely mounted and all connections are tight. Monitor the operational status of the module to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB NDPI-02 58914444, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
