Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB NDBU-95C 64008366 |
| Manufacturer | ABB |
| Product category | Branching Unit |
| Input Voltage Range | 24V DC ±10% |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions (W x H x D) | 41 mm x 264 mm x 94 mm |
| Weight | 1 kg |
| Communication Interface | Modbus, Profibus, Ethernet |
| Certifications | CE, UL, ATEX certified |
| Supported Protocols | Modbus, Profibus, Ethernet/IP |
| Typical Power Consumption | 2.5 watts |

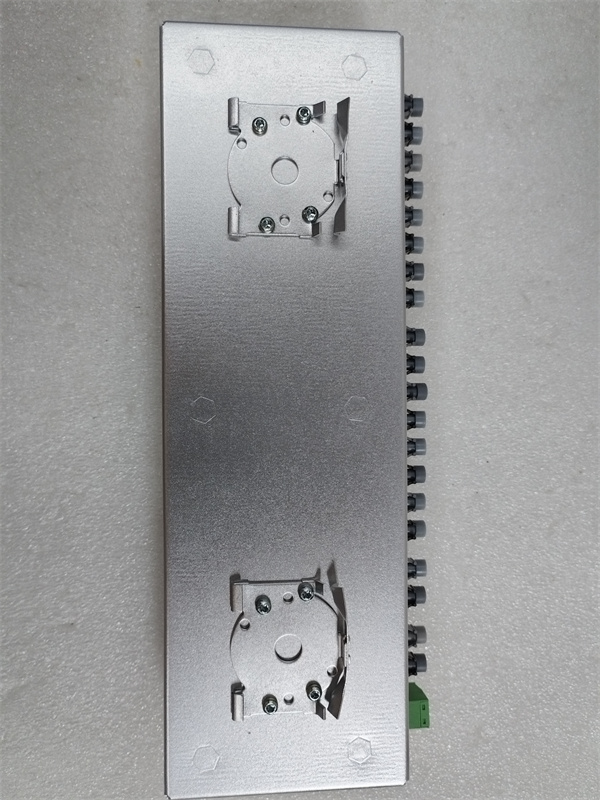

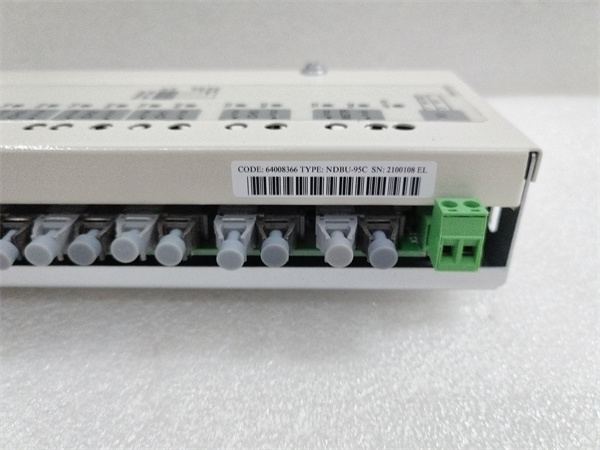

ABB NDBU-95C 64008366
Product Introduction
The ABB NDBU-95C 64008366 is a high-performance branching unit designed for seamless integration into industrial control systems. This unit is meticulously crafted to ensure high performance and durability, providing efficient signal distribution and optimizing the performance of complex industrial setups. The NDBU-95C is built using robust materials, offering exceptional resistance against harsh environmental conditions. Its compact size allows for easy installation in tight spaces without compromising functionality or safety standards.
Core Advantages and Technical Highlights
High Precision and Reliability:
-
The ABB NDBU-95C 64008366 features high accuracy (±0.25% of full scale) and a wide measurement range (0.3 to 10m), ensuring reliable data for critical monitoring applications.
-
It supports multiple output modes, including 4-20mA, RS485, and Modbus, for easy integration with other systems and networks.
Robust Industrial Design:
-
The unit is designed to operate reliably within a wide temperature range (-40°C to +85°C), making it suitable for harsh industrial environments.
-
It features a protection rating of IP67, ensuring stability and longevity even in challenging conditions.
Advanced Communication Capabilities:
-
The ABB NDBU-95C 64008366 supports multiple communication protocols, including Modbus, Profibus, and Ethernet/IP, ensuring seamless integration with existing control systems.
Easy Installation and Maintenance:
-
The compact design (41 mm x 264 mm x 94 mm) and lightweight (1 kg) make the branching unit easy to install and maintain.
-
Its IP67 protection class ensures durability and longevity, even in challenging conditions.
smart
Typical Application Scenarios
The ABB NDBU-95C 64008366 is widely used across various industrial sectors, including:
-
Manufacturing Automation: Installed in production lines to optimize signal distribution and ensure efficient operation of machinery.
-
Energy Sector: Used for monitoring and controlling key parameters in power plants and substations.
-
Food Processing Plants: Reliable signal distribution in environments with high humidity and frequent washdowns.
Related Model Recommendations
-
ABB ACS800: A frequency converter that works seamlessly with the ABB NDBU-95C 64008366 for complete control solutions.
-
ABB ACS850: Another compatible frequency converter that benefits from the branching capabilities of the ABB NDBU-95C 64008366.
-
ABB ACS550: A versatile frequency converter that can utilize the ABB NDBU-95C 64008366 for enhanced control.
-
ABB NDBU-95C 3AFE64008366: A variant with similar functionality but different configurations.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
-
Ensure the installation environment meets the specified temperature and humidity requirements. The branching unit should be installed in a location with adequate ventilation to dissipate heat.
-
Verify that the power supply voltage is within the specified range (24V DC ±10%) to avoid damage to the unit.
Maintenance Suggestions:
-
Regularly inspect the installation to ensure the branching unit is securely mounted and all connections are tight.
-
Monitor the operational status of the unit to detect any signs of malfunction early.
-
Conduct functional testing on the branching unit at least once a year to ensure optimal performance.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB NDBU-95C 64008366, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
