Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB MT-91-ARCFPA |
| Manufacturer | ABB |
| Product category | Industrial Control Module |
| Input Voltage | 18-36 VDC |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions (W x H x D) | 90 mm x 45 mm x 70 mm |
| Weight | 0.3 kg |
| Communication Interface | RS-485, CAN |
| Certifications | CE, FCC, RoHS |
| Supported Protocols | Modbus RTU, CANopen |
| Typical Power Consumption | 3.5 watts |

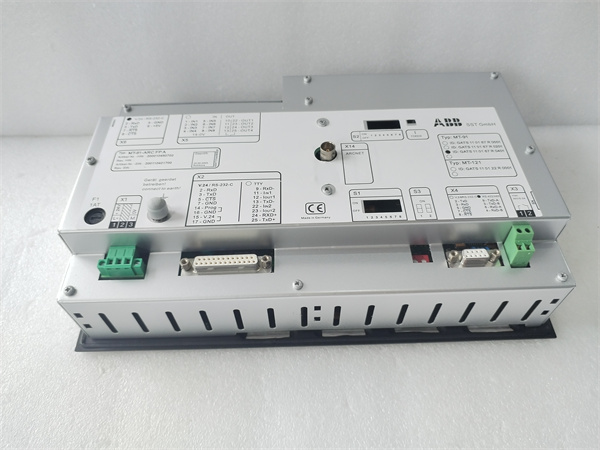

MT-91-ARCFPA
Product Introduction
The ABB MT-91-ARCFPA is a high-performance analog input/output control module designed to serve as a reliable bridge between on-site sensors and central control systems. It processes various analog signals and converts them into digital data for easier processing by higher-level control platforms. This module can be seamlessly integrated into common backplane systems and is compatible with popular control platforms, supporting protocols such as Modbus RTU and CANopen for efficient communication. The MT-91-ARCFPA is designed for high reliability under extreme conditions, ensuring long-term performance stability and reducing maintenance costs.
Core Advantages and Technical Highlights
High Reliability and Durability:
-
The ABB MT-91-ARCFPA is designed to withstand extreme temperatures (-40°C to +85°C) and features IP54 protection, ensuring reliable operation in harsh environments. Its compact form factor (90 mm x 45 mm x 70 mm) fits into tight control cabinets, optimizing panel space.
Advanced Signal Processing:
-
The module includes built-in signal conditioning and isolation functions, effectively filtering out electrical noise and ensuring the accuracy of input signals. It also provides diagnostic functionality, allowing engineers to monitor the operational status of modules in real-time and detect any potential issues.
Flexible Integration:
-
The MT-91-ARCFPA supports multiple communication protocols, including RS-485 and CAN, ensuring seamless integration with existing control systems. Its DIN rail installation method simplifies deployment and reduces engineering costs.
Energy Efficiency:
-
The module operates at a typical power consumption of 3.5 watts, minimizing energy costs in 24/7 industrial applications.

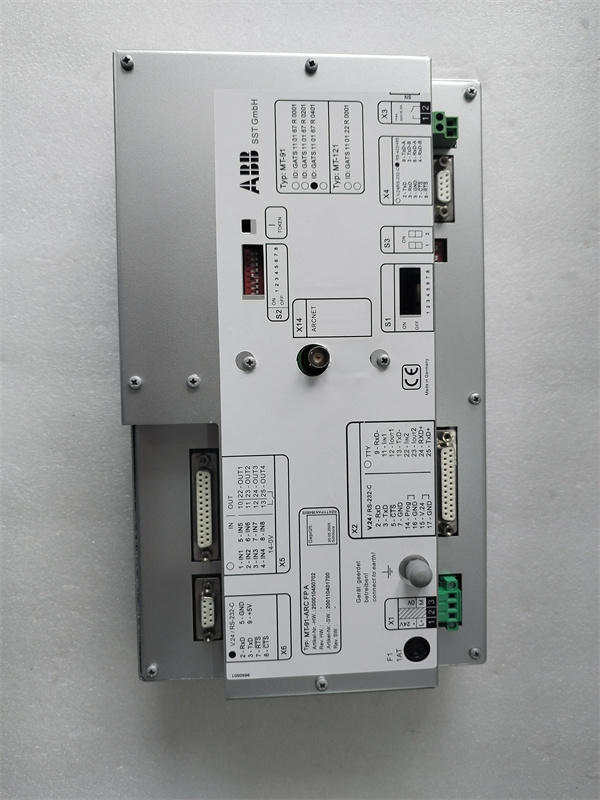

MT-91-ARCFPA
Typical Application Scenarios
The ABB MT-91-ARCFPA is widely used across various industrial sectors, including:
-
Oil and Gas Industry: Monitoring and controlling key parameters such as pressure, temperature, and flow in pipelines and refineries.
-
Paper Industry: Precise control of machinery, adjustment of pulp concentration, and drying temperature variables.
-
Power Distribution Industry: Monitoring electrical parameters in substations and power grids, ensuring stable operation of electrical infrastructure.
Related Model Recommendations
-
MT-92-ARCFPA: Faster processing speed and more I/O channels, suitable for large-scale industrial applications.
-
MT-91-ARCCFPB: Improved electromagnetic compatibility (EMC) performance, suitable for environments with high levels of electrical noise.
-
MT-90-ARCFPA: A cost-effective alternative with basic analog I/O capabilities, suitable for small automation projects.
-
MT-91-ARCPFC: Advanced self-calibration capabilities, reducing the need for manual calibration and improving long-term accuracy.
-
MT-91-ARCFD: Designed for explosion-proof environments, providing additional safety in hazardous industrial environments.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
-
Verify the compatibility of the ABB MT-91-ARCFPA‘s interface with the existing control system. Ensure that the RS-485 or CAN bus connection meets the system requirements and that the input voltage range is within 18-36 VDC. Provide sufficient ventilation around the module, especially in high-temperature environments.
Maintenance Suggestions:
-
Regularly inspect the DIN rail installation to ensure the module is securely mounted. Monitor the status indicator lights to detect any signs of malfunction. Check cable connections for security and inspect for signs of wear and tear. Conduct functional testing on the module at least once a year to ensure optimal performance.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB MT-91-ARCFPA, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
