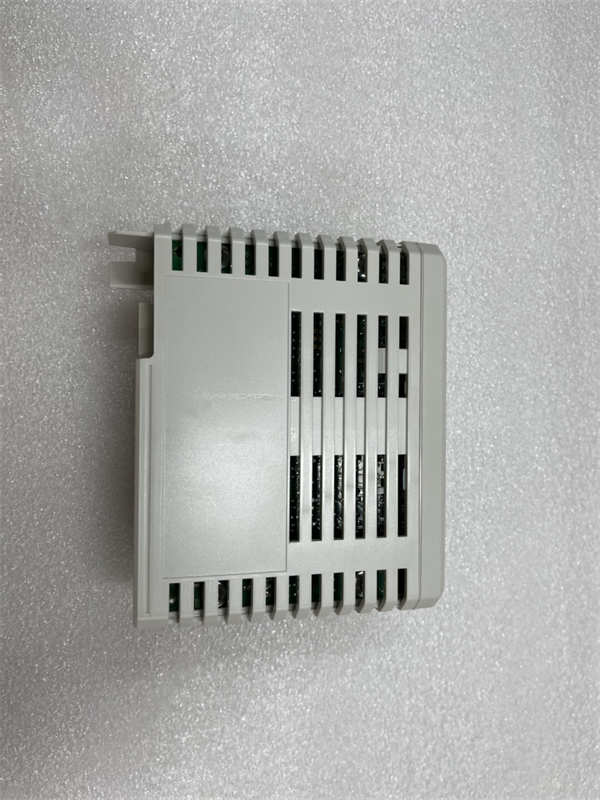

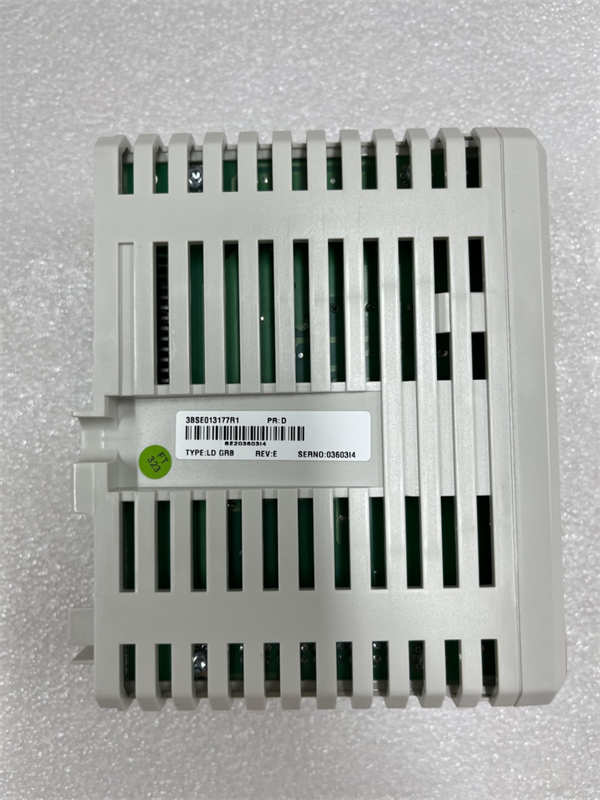

ABB LDGRB-01 3BSE013177R1

Description

Detailed Parameter Table

Parameter Name	Parameter Value
Product model	ABB LDGRB-01 3BSE013177R1
Manufacturer	ABB
Product category	Digital Input/Output Module
Number of Channels	32 channels (16 digital inputs, 16 digital outputs)
Input Voltage Range	24V DC (±10%)
Output Voltage Range	24V DC (±10%)
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% (non-condensing)
Communication Interface	RS-485 (Modbus RTU), Ethernet, Profibus DP
Isolation Voltage	500 VDC (channel-to-channel, channel-to-ground)
Power Consumption	≤5 W
Dimensions	100 mm × 100 mm × 50 mm (W × H × D)
Weight	0.85 kg
Mounting	DIN rail or panel mounting
Protection Class	IP20 (control cabinet installation)

ABB LDGRB-01 3BSE013177R1

Product Introduction

Core Advantages and Technical Highlights

• The ABB LDGRB-01 3BSE013177R1 offers a mean time between failures (MTBF) of over 100,000 hours, ensuring long-term stability in critical operations.
• It supports hot-swap functionality, allowing maintenance without system downtime.

• Compatible with ABB’s AC500 PLC series and third-party Modbus RTU devices, reducing compatibility challenges.
• Configurable input/output modes (sinking/sourcing) adapt to diverse field device requirements.

• Low power consumption (≤5 W) minimizes operational costs, making it suitable for energy-sensitive applications.

• Compact form factor (100 mm × 100 mm × 50 mm) allows dense installation in control panels.

• Built-in LED status indicators provide real-time monitoring of power, communication, and channel status.
• Detailed fault information can be viewed via system HMI or diagnostic software.

• Supports analog and digital signal isolation and conversion with high precision (±0.1% FS).
• Provides high-speed sampling and signal processing capabilities, suitable for monitoring fast-changing signals.



  ABB LDGRB-01 3BSE013177R1

Typical Application Scenarios

• Process Control: For signal isolation and distribution in chemical and oil & gas industries.
• Power Systems: For monitoring and protection signal conditioning in substations.
• Discrete Manufacturing: For state signal acquisition and conversion in production lines.
• Robotics and Automation: For complex motion control and monitoring in manufacturing lines.
• Water and Wastewater Treatment: For monitoring and controlling equipment in water treatment plants.

Related Model Recommendations

• ABB IMFEC12: An analog input module that can be used in conjunction with the ABB LDGRB-01 3BSE013177R1 for comprehensive monitoring solutions.
• ABB IMDO14: A digital output module that complements the ABB LDGRB-01 3BSE013177R1 for complete control applications.
• ABB IMCAM07B0000: A communication module that enhances network connectivity for the ABB LDGRB-01 3BSE013177R1 in complex industrial networks.
• ABB IMFCS01: A frequency counter module that can be used alongside the ABB LDGRB-01 3BSE013177R1 for additional control and monitoring capabilities.
• ABB LC1000-S/SP7: A current sensor module that can be integrated with the ABB LDGRB-01 3BSE013177R1 for comprehensive power monitoring.

Installation, Commissioning, and Maintenance Instructions

• Ensure the control panel has adequate space to accommodate the module’s dimensions (100 mm × 100 mm × 50 mm) and provide sufficient airflow for cooling.
• The module requires a stable 24V DC power supply within ±10% tolerance and proper grounding to minimize electromagnetic interference.
• It can be mounted on a standard DIN rail or panel-mounted using the provided hardware.

• Regularly inspect terminals for loose connections and verify the integrity of communication cables.
• Replace modules if exposed to extreme temperatures or moisture.
• Disconnect power before installing or replacing the module to avoid electrostatic discharge (ESD).
