Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB IMSED01 |
| Manufacturer | ABB |
| Product category | Digital Input Module |
| Number of Channels | 16 digital input channels |
| Input Voltage Range | 24V DC / 48V DC / 125V DC |
| Response Time | < 1 ms |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Communication Interface | Bailey INFI-NET or Harmony network |
| Power Consumption | ≤5W |
| Mounting | Rack-mounted |
| Dimensions | 71.12 mm x 358.14 mm x 269.24 mm |
| Weight | Approx. 600g |
ABB IMSED01
Product Introduction
The ABB IMSED01 is a high-performance 16-channel digital input module designed for industrial automation applications. It is part of the ABB Bailey Infi 90 and Symphony Plus control systems, offering precise and reliable digital signal processing. The module is engineered to handle a wide range of input voltages (24V DC, 48V DC, and 125V DC) and provides millisecond-level response times, ensuring real-time data acquisition and processing. With its robust design and wide operating temperature range (-20°C to +60°C), the ABB IMSED01 is well-suited for harsh industrial environments. It supports time synchronization via GPS and IRIG-B, enhancing its accuracy in event logging and fault analysis.
Core Advantages and Technical Highlights
High-Channel Count and Flexibility: The ABB IMSED01 features 16 digital input channels, each configurable as “high active” or “low active” with filtering options. This flexibility allows it to interface with a variety of digital devices, including sensors, limit switches, and buttons.
Fast Response and High Precision: With a response time of less than 1 millisecond and a signal processing accuracy of ±0.1%, the ABB IMSED01 ensures precise control and monitoring in dynamic industrial processes.
Robust Industrial Design: The module is designed to withstand harsh industrial conditions, with an operating temperature range of -20°C to +60°C and a storage temperature range of -40°C to +85°C. It also features a robust M12 connector system for secure data transmission.

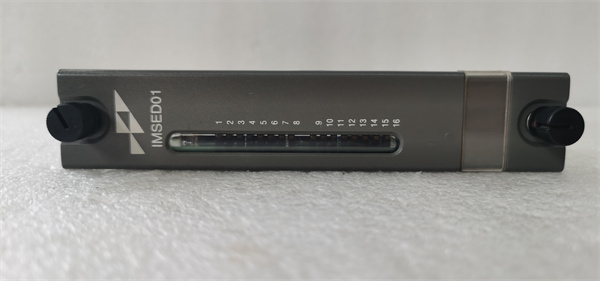

Advanced Diagnostics and Maintenance: The ABB IMSED01 includes LED indicators for visual feedback on channel status and diagnostic features for efficient troubleshooting and maintenance. This reduces downtime and ensures long-term reliability.
Seamless Integration: The module supports MODBUS RTU and Bailey INFI-NET communication protocols, enabling easy integration with ABB Symphony Plus and other industrial control systems.
ABB IMSED01
Typical Application Scenarios
The ABB IMSED01 is widely used in various industrial sectors, including manufacturing, power generation, and process control. In manufacturing plants, it monitors limit switches, sensors, and other digital devices to optimize production processes. In power plants, it logs events and pulses for fault analysis and system diagnostics, ensuring reliable operation. The module is also used in building automation, energy management, safety systems, and robotics, providing precise monitoring and control of critical inputs.
Related Model Recommendations
-
ABB IMFEC12: An analog input module that can be used in conjunction with the ABB IMSED01 for comprehensive monitoring solutions.
-
ABB IMDO14: A digital output module that complements the ABB IMSED01 for complete control applications.
-
ABB IMCAM07B0000: A communication module that enhances network connectivity for the ABB IMSED01 in complex industrial networks.
-
ABB IMFCS01: A frequency counter module that can be used alongside the ABB IMSED01 for additional control and monitoring capabilities.
-
ABB IMPSI14: A power supply module that ensures stable power delivery to the ABB IMSED01, enhancing system reliability.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment meets the specified temperature and humidity requirements. The ABB IMSED01 should be installed in a standard industrial cabinet with sufficient ventilation to dissipate heat. Verify that the power supply voltage is within the specified range to avoid damage to the module.
Maintenance Suggestions: Regularly inspect the module for signs of wear or damage, and ensure that all connections are secure. Use the module’s diagnostic features to monitor its performance and identify potential issues early. In case of faults, refer to the user manual for troubleshooting guidance and contact ABB support if necessary.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB IMSED01, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
