Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB IMHSS03 |
| Manufacturer | ABB |
| Product category | Hybrid Servo Module |
| Input Channels | 4 LVDT secondary inputs (each with 2 secondaries) |
| Output Channels | 4 analog outputs (2 redundant analog outputs) |
| LVDT Excitation Frequency | 400 Hz to 15 kHz |
| Output Current Capability | ±8 mA to ±32 mA (depending on configuration) |
| Communication Interface | MODBUS, PROFIBUS DP-V1 |
| Power Requirements | +5 VDC at 576 mA typical, +15 VDC at 15 mA typical, +15 VDC at 12 mA typical, +24 VDC at 335 mA typical |
| Environmental Conditions | Operating Temperature: -40°C to +70°C, Storage Temperature: -40°C to +85°C |
| Enclosure Rating | IP40 |
| Dimensions | 229 mm x 51 mm x 33 mm |
| Weight | 0.476 kg |

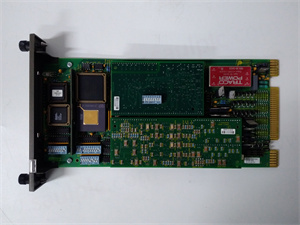

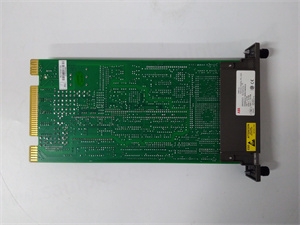

ABB IMHSS03
Product Introduction
The ABB IMHSS03 is a high-performance hybrid servo module designed for precise control and monitoring in industrial automation systems. It integrates multiple functionalities, including LVDT (Linear Variable Differential Transformer) secondary inputs and servo valve coil outputs, making it a versatile solution for applications requiring high accuracy and reliability. The module supports a wide range of input and output configurations, ensuring compatibility with various sensors and actuators. Its robust design and wide operating temperature range make it suitable for harsh industrial environments.
Core Advantages and Technical Highlights
High Precision and Versatility: The ABB IMHSS03 features 4 LVDT secondary inputs, each capable of handling two secondaries, providing precise position feedback. It also includes 4 analog outputs, with 2 redundant outputs for increased reliability. The module supports LVDT excitation frequencies from 400 Hz to 15 kHz, ensuring compatibility with a wide range of LVDTs.
Robust Industrial Design: Designed to withstand harsh industrial conditions, the ABB IMHSS03 operates within a temperature range of -40°C to +70°C and features an IP40 enclosure rating. This ensures long-term reliability and durability in demanding environments.
Redundancy and Reliability: The module includes redundant analog outputs, ensuring that the failure of one output does not affect the other. This feature is crucial for applications where downtime must be minimized.
Easy Integration: The ABB IMHSS03 supports multiple communication protocols, including MODBUS and PROFIBUS DP-V1, facilitating seamless integration into existing control systems. Its modular design and DIN rail installation make it easy to install and maintain.
Advanced Diagnostics: The module includes self-diagnostic features that monitor channel status and provide alerts for overvoltage or short circuits. This ensures early detection of potential issues, reducing maintenance time and costs.

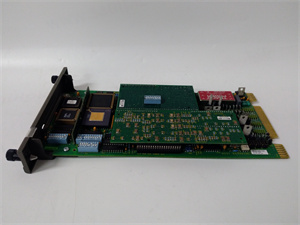

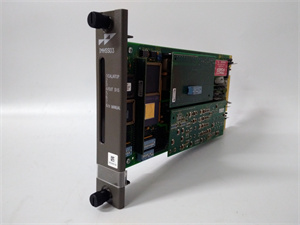

ABB IMHSS03
Typical Application Scenarios
The ABB IMHSS03 is widely used in various industrial sectors, including manufacturing, power generation, and process control. In manufacturing plants, it controls servo valves and monitors position feedback from LVDTs, ensuring precise control of machinery. In power plants, it is used for turbine control and monitoring, providing accurate feedback for optimal performance. The module’s ability to handle multiple input and output types makes it ideal for complex automation systems, reducing the need for additional components and lowering overall system costs.
Related Model Recommendations
-
ABB IMFEC12: An analog input module that can be used in conjunction with the ABB IMHSS03 for comprehensive monitoring solutions.
-
ABB IMDO14: A digital output module that complements the ABB IMHSS03 for complete control applications.
-
ABB IMCAM07B0000: A communication module that enhances network connectivity for the ABB IMHSS03 in complex industrial networks.
-
ABB IMPSI14: A power supply module that ensures stable power delivery to the ABB IMHSS03, enhancing system reliability.
-
ABB IMFCS01: A frequency counter module that can be used alongside the ABB IMHSS03 for additional control and monitoring capabilities.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment meets the specified temperature and humidity requirements. The ABB IMHSS03 should be installed in a standard industrial cabinet with sufficient ventilation to dissipate heat. Verify that the power supply voltage is within the specified range to avoid damage to the module.
Maintenance Suggestions: Regularly inspect the module for signs of wear or damage, and ensure that all connections are secure. Use the module’s diagnostic features to monitor its performance and identify potential issues early. In case of faults, refer to the user manual for troubleshooting guidance and contact ABB support if necessary.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB IMHSS03, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
