Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB GHR9010100R0002 |
| Manufacturer | ABB |
| Product category | Programmable Logic Controller (PLC) Module |
| Input voltage range | 24V DC ±10% |
| Power consumption | ≤5 W |
| Operating temperature | -40°C to +70°C |
| Communication interfaces | Ethernet (10/100 Mbps), Profibus DP |
| Compatibility | ABB AC800M, AC900F, and other modular PLC systems |
| Dimensions | 100 mm (W) x 150 mm (H) x 50 mm (D) |
| Certifications | CE, UL, RoHS compliant |
| Mean Time Between Failures (MTBF) | Exceeds 100,000 hours |

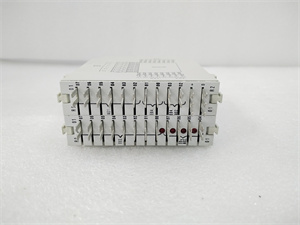

ABB GHR9010100R0002
Product Introduction
The ABB GHR9010100R0002 is a high-performance programmable logic controller (PLC) module designed for industrial automation applications. It is part of ABB’s extensive portfolio of automation solutions, engineered to meet the rigorous demands of modern industrial environments. This model is particularly suited for applications requiring precise control, real-time monitoring, and robust communication capabilities, making it an ideal choice for critical infrastructure and manufacturing processes.
Core Advantages and Technical Highlights
Exceptional Reliability: The GHR9010100R0002 stands out for its exceptional reliability, with a mean time between failures (MTBF) exceeding 100,000 hours. This ensures long-term stable operation even in harsh industrial conditions.
Hot-Swap Capability: The module supports hot-swap functionality, allowing for quick replacement without powering down the entire system. This significantly reduces downtime during maintenance.
Broad Compatibility: The GHR9010100R0002 is broadly compatible with ABB’s modular PLC platforms, enabling easy integration into existing systems without extensive reconfiguration.
Advanced Diagnostics: The unit supports advanced diagnostic functions, providing real-time status updates and fault alerts. This helps operators identify and resolve issues proactively.
Compact Design: The module’s compact design optimizes space usage in control cabinets, making it suitable for applications with limited installation space.

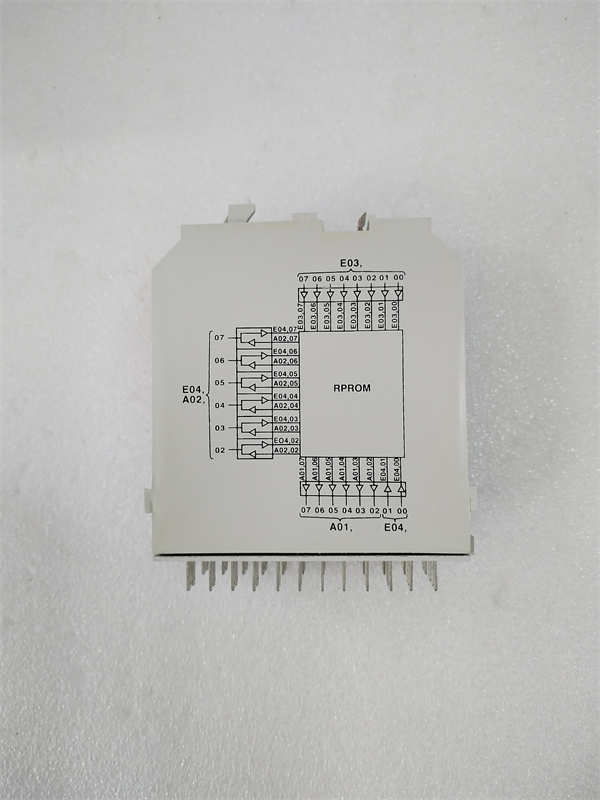

ABB GHR9010100R0002
Typical Application Scenarios
The ABB GHR9010100R0002 is widely used in industries such as manufacturing, energy, chemical processing, and water treatment, where reliable automation and precise control are essential. It is particularly effective in scenarios requiring high-speed data exchange and robust communication between different system modules.
Related Model Recommendations
-
ABB AC800M: A modular PLC system that the GHR9010100R0002 is compatible with for enhanced control solutions.
-
ABB AC900F: Another modular PLC system that can be integrated with the GHR9010100R0002 for comprehensive automation solutions.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB GHR9010100R0002, ensure that the environment meets the specified requirements, including an operating temperature range of -40°C to +70°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB GHR9010100R0002, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
