Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB GFD563A101 3BHE046836R0101 |
| Manufacturer | ABB |
| Product category | Excitation Control Unit |
| Input voltage range | 24V DC or 110-240V AC/DC |
| Input current range | 0-5A |
| Output voltage range | 0-10V DC |
| Output current range | 0-20A |
| Operating frequency | 50/60 Hz |
| Power consumption | ≤5W |
| Operating temperature | -25°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Protection class | IP20 |
| Dimensions | 163 mm x 196 mm x 206 mm |
| Weight | 2.3 kg |
| Communication protocols | Modbus, Profibus, Ethernet/IP |
| Certifications | CE, RoHS |

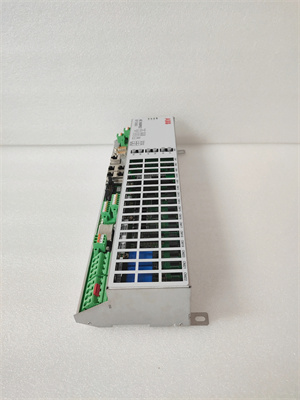

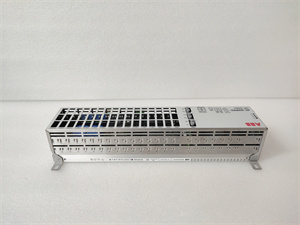

ABB GFD563A101 3BHE046836R0101
Product Introduction
The ABB GFD563A101 3BHE046836R0101 is a high-performance excitation control unit designed for industrial automation applications. It is part of ABB’s AC 800PEC product family, known for its reliability and advanced technology. This modular unit can be configured to meet diverse application requirements.
Core Advantages and Technical Highlights
Advanced Control Algorithms: The GFD563A101 features sophisticated control algorithms for precise excitation control and real-time monitoring.
Flexible Configuration: The unit supports a wide range of input and output configurations, making it suitable for various industrial applications.
Robust Industrial Design: The module is designed for harsh industrial environments, with an operating temperature range of -25°C to +70°C and a protection class of IP20.
Communication Protocols: The unit supports multiple communication protocols, including Modbus, Profibus, and Ethernet/IP, facilitating seamless integration with existing industrial networks.
Real-Time Monitoring: The GFD563A101 provides real-time data collection and monitoring, with features such as voltage, current, and power factor display.

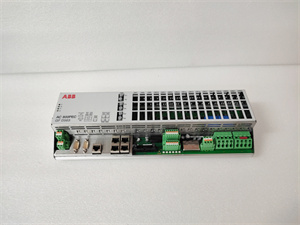

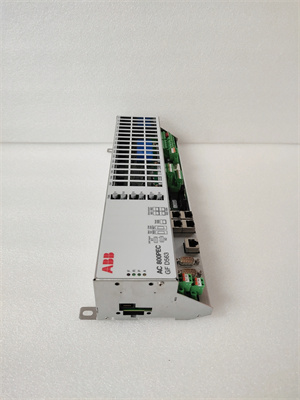

ABB GFD563A101 3BHE046836R0101
Typical Application Scenarios
The ABB GFD563A101 3BHE046836R0101 is widely used in various industrial sectors, including:
-
Power Generation: Used for excitation control in synchronous generators in thermal, hydroelectric, and nuclear power plants.
-
Industrial Automation: Suitable for high-precision control in manufacturing lines and robotic systems.
-
Oil & Gas: Managing pipeline monitoring and refinery operations.
-
Water Treatment: Regulating water flow and treatment processes.
Related Model Recommendations
-
ABB AC800PEC Series: Other controllers in the AC800PEC series that can be used for similar applications.
-
ABB ACS880 Drives: Compatible with the GFD563A101 for precise motor speed and torque regulation.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB GFD563A101 3BHE046836R0101, ensure that the environment meets the specified requirements, including an operating temperature range of -25°C to +70°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB GFD563A101 3BHE046836R0101, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
