Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | FAU810 |
| Manufacturer | ABB |
| Product Category | Flame Analysis Unit |
| Series | Uvisor™ |
| Input Voltage Range | 21.6V to 31.2V DC |
| Power Consumption | 4W to 10W (standard 6W) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -25°C to 65°C |
| Humidity Range | 95% non-condensing |
| Dimensions (W×D×H) | 220 mm × 150 mm × 50 mm |
| Weight | 1.5 kg |
| Certifications | CE, UL, CSA |
| Protection Level | IP66 (NEMA 4) |
| Explosion-proof Rating | ATEX II 2GD Ex d IIC T6 |
| Communication Protocols | Profibus DP-V1, Modbus |
| Number of Channels | 2 independent channels |
| Signal Output | 4-20 mA (2 channels) |
| Flame Relays | 3 relays (250 Vac, 3A, 750 VA; 220 Vdc, 300 mA, 66W) |
| Self-Test Cycle | 0.1 seconds |

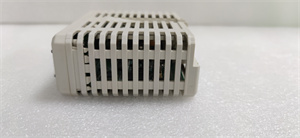

ABB FAU810
Product Introduction
The ABB FAU810 is a high-performance flame analysis unit designed for industrial applications. It is part of the Uvisor™ series and is known for its robustness, reliability, and efficiency in harsh industrial environments.
Core Advantages and Technical Highlights
Dual-Channel Design: The FAU810 features two independent channels, each capable of receiving and processing signals from a flame detector. Each channel has its own flame relay and 4-20 mA analog output, ensuring precise flame detection.
Smart Detection and Analysis: The unit can automatically select parameters based on different fuel conditions, eliminating the need for frequent manual adjustments. It provides real-time data on flame flickering frequency, radiation intensity, and flame quality.
High Safety and Reliability: The FAU810 continuously monitors the flame detector and its electronic components for faults. It can signal unsafe conditions, such as flame loss, and supports redundant Profibus DP-V1 or standard Modbus interfaces for secure data exchange.
Easy Installation and Configuration: The FAU810 is easy to install and configure. It can be used with all ABB flame detectors and is the standard module for retrofitting existing installations.
Low Power Consumption: The unit consumes only 3.6W, making it energy-efficient and environmentally friendly.

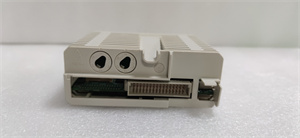

ABB FAU810
Typical Application Scenarios
The ABB FAU810 is widely used in various industrial sectors, including:
-
Power Plants: For monitoring and controlling combustion processes in boilers.
-
Industrial Furnaces: For ensuring safe and efficient operation in various industrial heating applications.
-
Incinerators: For real-time monitoring of flame conditions to ensure complete combustion.
Related Model Recommendations
-
SF810 Flame Scanning Head: Compatible with FAU810 for advanced flame detection.
-
DFS Flame Scanning Head: Legacy flame detector compatible with FAU810.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the unit for physical damage, monitor output signals using a multimeter, and check for abnormal heat generation or noises. Clean the unit’s surface periodically to prevent dust accumulation, which can affect performance.
Service and Guarantee Commitment
The ABB FAU810 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
