Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | E5LA HENF105296R0001 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Series | E5LA |
| Input Voltage | 220 V AC |
| Output Voltage | 48 V DC |
| Output Current | 22.1 A |
| Power Rating | 1060 W |
| Efficiency | Up to 96% |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 230 mm × 125 mm × 61 mm |
| Weight | 2.9 kg |
| Certifications | CE, UL, RoHS |
| Protection Level | IP20 |
| Application Areas | Industrial Automation, Power Systems, Communication Systems |

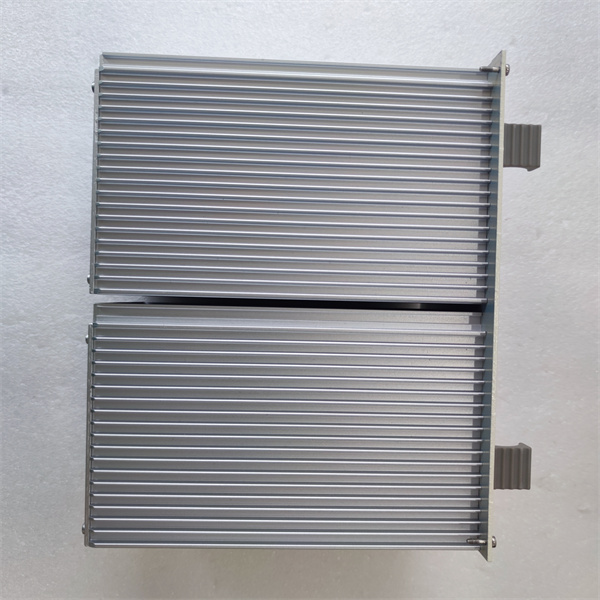

ABB E5LA HENF105296R0001
Product Introduction
The ABB E5LA HENF105296R0001 is a high-performance industrial control module designed for precision and reliability in demanding environments. It is ideal for applications requiring robust power supply and filtering capabilities.
Core Advantages and Technical Highlights
High Efficiency: The module offers up to 96% efficiency, reducing energy loss and lowering operational costs.
Robust Design: The module is designed for high reliability, featuring fault protection to minimize downtime.
Compact Design: The module has a compact form factor, making it easy to integrate into existing systems.
Wide Operating Range: It operates reliably within a temperature range of -20°C to +60°C and a humidity range of 5% to 95% non-condensing.
Advanced Filtering Capabilities: The module includes filtering functions to suppress electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable signal transmission.

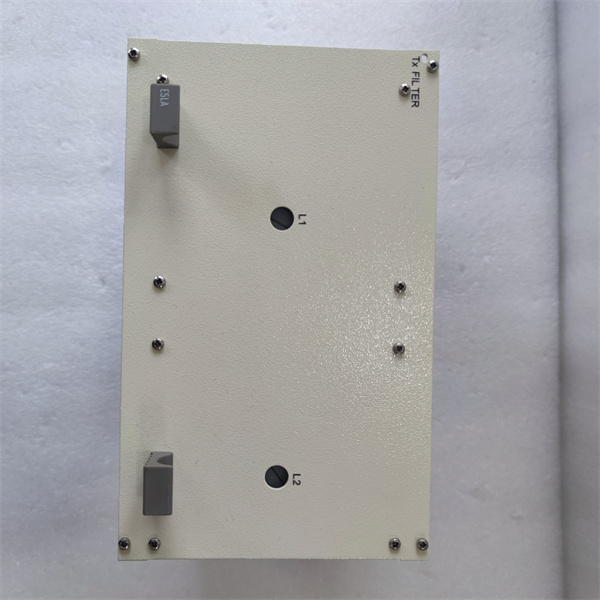

ABB E5LA HENF105296R0001
Typical Application Scenarios
The ABB E5LA HENF105296R0001 is widely used in various industrial sectors, including:
-
Industrial Automation: For providing stable power supply to PLCs, inverters, and servo motors.
-
Power Systems: For improving grid quality by reducing harmonics.
-
Communication Systems: For ensuring clean signal transmission.
-
Water Treatment, Metallurgy, Chemical Processing, Textile Industries: For various industrial applications requiring high reliability and efficiency.
Related Model Recommendations
-
ABB 70BV05A-ES: Known for its robust I/O capabilities.
-
ABB 70EA2a-ES: A reliable choice for general control tasks.
-
ABB 70EA01B-ES: Ideal for communication-intensive applications.
-
ABB 70EB0lb-E: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB E5LA HENF105296R0001 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
