Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSTXW110 |
| Manufacturer | ABB |
| Product Category | Digital Input Module |
| Input Voltage | 24V DC (±10%) |
| Number of Inputs | 16 |
| Input Type | Digital |
| Operating Temperature Range | -20°C to +70°C |
| Connection Type | DIN Rail |
| Dimensions (L x W x H) | 240 mm x 20 mm x 124 mm |
| Weight | 0.3 kg |
| Certifications | CE, UL, CSA |

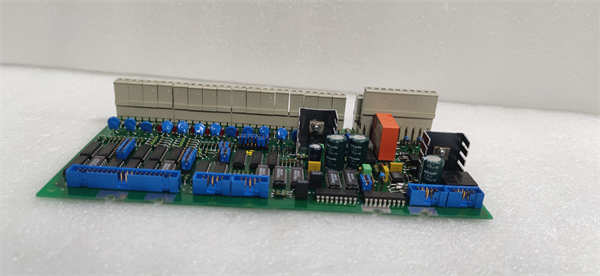

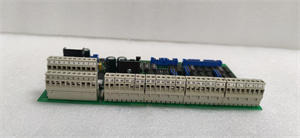

ABB DSTXW110
Product Introduction
The ABB DSTXW110 is a high-performance digital input module designed for industrial automation applications. It is part of ABB’s System Pro M series and is designed to provide reliable and efficient data acquisition in harsh industrial environments. The module features 16 digital inputs and operates on a rated voltage of 24V DC, ensuring compatibility with a wide range of industrial devices.
Core Advantages and Technical Highlights
High Reliability and Robustness: The DSTXW110 is designed to operate reliably in harsh industrial environments, with a wide operating temperature range of -20°C to +70°C. It features high isolation voltage and robust construction, ensuring signal integrity and long-term durability.
Fast Data Acquisition: The module supports high-speed data acquisition, ensuring accurate and timely signal processing. This capability is crucial for real-time control and monitoring in industrial automation.
Flexible Installation: The DSTXW110 is designed for DIN rail mounting, making it easy to install in space-constrained control cabinets. Its compact size (240 mm x 20 mm x 124 mm) and lightweight design (0.3 kg) further enhance its versatility.
Advanced Communication Capabilities: The module supports multiple communication protocols, including Modbus TCP/IP, enabling seamless integration with various control systems. This flexibility ensures compatibility with both legacy and modern industrial networks.
Self-Diagnostics: The DSTXW110 includes built-in diagnostic features, allowing for quick identification and resolution of issues. This capability reduces maintenance time and ensures system reliability.

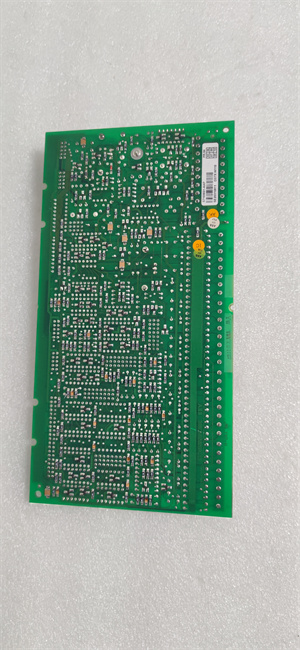

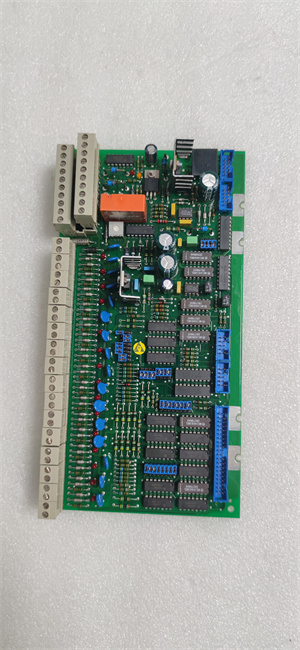

ABB DSTXW110
Typical Application Scenarios
The DSTXW110 is widely used in various industrial sectors, including manufacturing, power generation, and process control. It is ideal for applications requiring precise control and monitoring, such as:
-
Industrial automation systems
-
Power generation plants
-
Process control systems
-
Renewable energy systems
Related Model Recommendations
-
DSTA131: An analog input module suitable for applications requiring precise signal conversion.
-
DSSR122: A power supply unit suitable for applications requiring stable DC power.
-
DSSB140: A battery unit for applications needing backup power or energy storage.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the DSTXW110, ensure the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail using the provided hardware. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.
Service and Guarantee Commitment
The DSTXW110 is backed by ABB’s comprehensive support and quality assurance. The module comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
