Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSTA131 |
| Manufacturer | ABB |
| Product Category | Industrial Automation Module |
| Input Voltage | 24V DC |
| Output Power | 120W |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (L x W x H) | 110 mm x 60 mm x 30 mm |
| Weight | 0.4 kg |
| Communication Interfaces | Ethernet, RS-485 |
| Input/Output Channels | 32 analog inputs/outputs, 16 digital inputs/outputs |
| Certifications | CE, UL, RoHS |

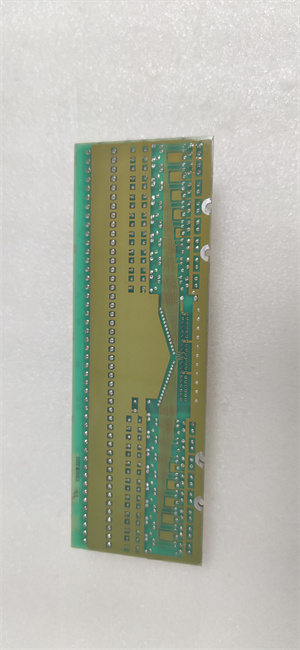

ABB DSTA131
Product Introduction
The ABB DSTA131 is a high-performance industrial automation module designed for connecting analog input (AI) boards to ABB’s S100 series controllers. It is part of the ABB Advant OCS system and offers a reliable and efficient solution for industrial control and data acquisition. The module supports both analog and digital I/O channels, making it suitable for a wide range of applications, including process control, robotics, and building automation. Its compact design and modular construction ensure easy installation and maintenance.
Core Advantages and Technical Highlights
High Precision and Reliability: The DSTA131 provides high-precision signal conversion with ±0.1% accuracy. It is designed for harsh industrial environments, ensuring long-term reliability and minimal downtime.
Versatile Communication Capabilities: The module supports multiple communication protocols, including Ethernet and RS-485, enabling seamless integration with various control systems.
Flexible Configuration: With 32 analog I/O channels and 16 digital I/O channels, the DSTA131 offers extensive connectivity options for diverse industrial applications.
Compact Design: Measuring 110 mm x 60 mm x 30 mm and weighing only 0.4 kg, the DSTA131 is easy to install in space-constrained control cabinets.
Advanced Diagnostics: The module includes diagnostic features and multi-level password protection to ensure secure operation and quick troubleshooting.

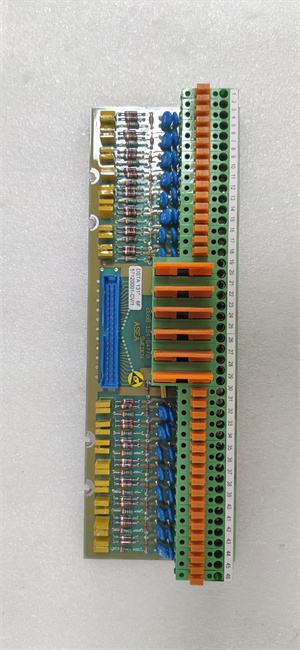

ABB DSTA131
Typical Application Scenarios
The DSTA131 is widely used in various industrial sectors, including manufacturing, robotics, process control, and building automation. It is ideal for applications requiring high-precision control and data acquisition, such as:
-
Process control systems in chemical and petrochemical plants
-
Robotics and automation in automotive and electronics manufacturing
-
Building automation systems for HVAC, lighting, and security control
-
Data acquisition in research and development facilities
Related Model Recommendations
-
DSTA131K02: A kit version of the DSTA131, including additional components for easier installation and setup.
-
DSTA131K03: An upgraded version with enhanced features and improved performance, offering a future-proof solution for advanced automation needs.
-
DSSR122: A power supply unit suitable for applications requiring stable DC power.
-
DSSB140: A battery unit for applications needing backup power or energy storage.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the DSTA131, ensure the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail using the provided hardware. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.
Service and Guarantee Commitment
The DSTA131 is backed by ABB’s comprehensive support and quality assurance. The module comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSTA131 undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
