Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSSA165 |
| Manufacturer | ABB |
| Product Category | Power Supply Module |
| Input Voltage Range | 85 to 265 VAC |
| Output Voltage | 24V DC |
| Output Current | 5A |
| Power Rating | 165 kW |
| Efficiency | 99% |
| Operating Temperature Range | -25°C to +60°C |
| Dimensions (L x W x H) | 120 mm x 120 mm x 80 mm |
| Weight | 1.2 kg |
| Certifications | CE |

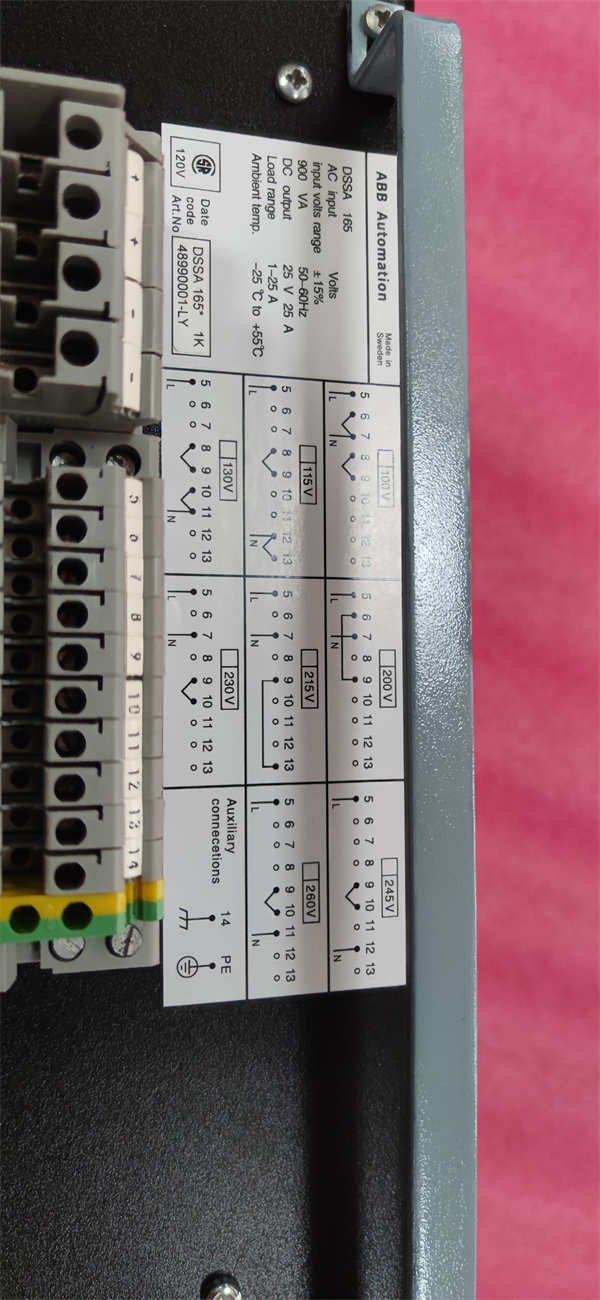

ABB DSSA165
Product Introduction
The ABB DSSA165 is a high-performance power supply module designed for industrial automation systems. It ensures stable and reliable power delivery, making it an essential component for maintaining the continuous operation of industrial equipment. The module features a wide input voltage range of 85 to 265 VAC, ensuring compatibility with various power sources. It provides a stable 24V DC output with a maximum current of 5A, suitable for powering a wide range of industrial devices. The DSSA165 is built with advanced circuitry and high-quality components to deliver consistent power, even under varying load conditions.
Core Advantages and Technical Highlights
Wide Input Voltage Range: The DSSA165 supports an input voltage range of 85 to 265 VAC, making it adaptable to different power supply standards.
High Efficiency: With an efficiency rating of 99%, the module minimizes energy loss and reduces operational costs.
Robust Construction: The DSSA165 is designed to withstand harsh industrial environments, ensuring long-term reliability and durability.
Overload and Short-Circuit Protection: The module includes advanced safety features to protect against overloads and short circuits, ensuring system safety and minimizing downtime.
Compact Design: Measuring 120 mm x 120 mm x 80 mm, the DSSA165 is compact and lightweight, making it suitable for space-constrained control cabinets.
Compliance with International Standards: The module is certified with CE, ensuring compliance with international safety standards.
ABB DSSA165
Typical Application Scenarios
The DSSA165 is widely used in various industrial sectors where reliable power supply is critical. In manufacturing plants, it powers PLCs, sensors, and actuators, ensuring smooth operation of production lines. In power generation facilities, the module provides stable power to control systems and monitoring equipment. It is also used in robotics for powering control systems and in water treatment plants for driving pumps and valves. The DSSA165 is an essential component in automation systems, providing stable power to critical equipment.
Related Model Recommendations
-
DSSA110: A related power supply module with similar functionality, suitable for applications requiring a different form factor or additional features.
-
DSSA165K02: A kit version of the DSSA165, including additional components for easier installation and setup.
-
DSSA165K03: An upgraded version with enhanced features and improved performance, offering a future-proof solution for advanced power supply needs.
-
DSSA165 48990001-LY: A variant with specific part number 48990001-LY, suitable for applications requiring compatibility with ABB’s AC800M systems.
-
DSSA165 10 Years Preventive Maintenance Kit: A maintenance kit designed to ensure long-term reliability and performance of the DSSA165.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the DSSA165, ensure the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference. Ensure proper grounding and power supply specifications to prevent voltage fluctuations.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.
Service and Guarantee Commitment
The DSSA165 is backed by ABB’s comprehensive support and quality assurance. The module comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSSA165 undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
