Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB DI524 1SAP240000R0001 |
| Manufacturer | ABB |
| Product category | Digital Input Module |
| Input voltage range | 24V DC |
| Input signal type | Digital input (1-wire) |
| Number of input channels | 32 DI (Digital Inputs) |
| Response time | < 1 ms |
| Operating temperature | -20°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| Protection class | IP20 |
| Dimensions | 62 mm x 130 mm x 77 mm |
| Weight | 0.1 kg |
| Communication protocols | RS-485, Modbus, Profibus, Ethernet/IP (depending on model) |
| Certifications | CE, RoHS |
ABB DI524 1SAP240000R0001
Product Introduction

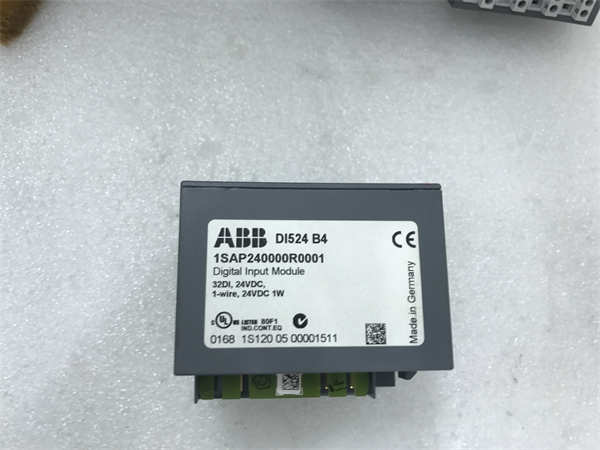

The ABB DI524 1SAP240000R0001 is a high-performance digital input module designed for industrial automation and control systems. It is part of ABB’s S500 series and is specifically designed to receive and process digital signals from various sensors and switches. The module features 32 digital input channels, each capable of handling 24V DC signals. It is known for its high precision, fast response, and robust design, making it suitable for a wide range of industrial applications.
Core Advantages and Technical Highlights
High Channel Density: The DI524 module features 32 digital input channels, allowing it to monitor multiple signal sources simultaneously. This high channel density enhances the system’s parallel processing capabilities.
Fast Response Time: The module has a response time of less than 1 millisecond, ensuring swift and accurate data processing. This is crucial for maintaining optimal system performance in real-time control applications.
Robust Industrial Design: The DI524 is designed for harsh industrial environments, with an operating temperature range of -20°C to +60°C and a protection class of IP20. Its compact design (62 mm x 130 mm x 77 mm) and low weight (0.1 kg) make it easy to install and maintain.
Flexible Configuration: The module supports a wide range of digital input types and can be configured to work with various industrial protocols such as RS-485, Modbus, Profibus, and Ethernet/IP.
Isolation and Protection: Each input channel features isolation protection to prevent external interference and enhance system reliability.
ABB DI524 1SAP240000R0001
Typical Application Scenarios
The ABB DI524 1SAP240000R0001 is widely used in various industrial sectors, including:
-
Manufacturing: Monitoring assembly lines and robotic systems.
-
Power Generation: Controlling turbines, generators, and boilers in power plants.
-
Oil & Gas: Managing pipeline monitoring and refinery operations.
-
Water Treatment: Monitoring water flow and treatment processes.
Related Model Recommendations
-
ABB DO524: A digital output module that can be used in conjunction with the DI524 for complete control solutions.
-
ABB ACS880 Drives: Compatible with the DI524 for precise motor speed and torque regulation.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB DI524 1SAP240000R0001, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail for secure installation.
Maintenance Suggestions
To maintain the ABB DI524 1SAP240000R0001, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
