Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | DDC779BE02 3BHE006805R0002 |
| Manufacturer | ABB |
| Product Category | Drive Control Module |
| Input Voltage | 24V DC (±10%) |
| Power Consumption | 15W (typical) |
| Processor | 32-bit RISC (800 MHz) |
| Memory | 512MB RAM, 1GB Flash |
| Communication Protocols | PROFIBUS DP, Ethernet/IP |
| Operating Temperature | -25°C to +70°C |
| Protection Class | IP20 |
| Dimensions | 150 × 120 × 85 mm |
| Weight | 750g |
| Compliance Standards | IEC 61800, UL 508, CE |

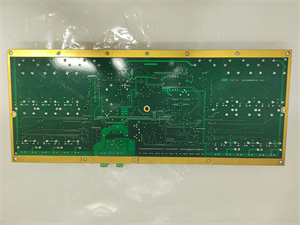

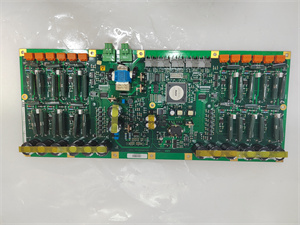

ABB DDC779BE02 3BHE006805R0002
Product Introduction
The ABB DDC779BE02 3BHE006805R0002 is a high-performance drive control module designed for industrial AC drive systems. As part of ABB’s ACS800 drive family, this module provides precise motor control and advanced automation capabilities for demanding industrial applications.
This BE02 variant offers optimized performance for standard drive applications, featuring robust construction and reliable operation in harsh industrial environments. The module serves as the intelligent control core for ABB drives, delivering superior motor control while enabling seamless integration with plant automation systems.
Core Advantages and Technical Highlights
Advanced Motor Control:
Direct Torque Control (DTC) technology
±0.5% speed control accuracy (without encoder)
150% torque boost at zero speed
Auto-tuning for optimal motor performance
Industrial Connectivity:
PROFIBUS DP-V1 for factory automation
Ethernet/IP for real-time data exchange
Dual communication ports for network flexibility
Robust Design Features:
-25°C to +70°C operating range
Conformal coated PCBs for humidity protection
5g vibration resistance (IEC 60068-2-6)
Surge protection on all I/O connections
User-Friendly Operation:
LED status indicators for quick diagnostics
ABB DriveWindow configuration software
Hot-swappable design for easy maintenance
Web server interface for remote monitoring
Typical Application Scenarios
Manufacturing:
Conveyor speed control
Machine tool drives
Packaging machinery
Process Industries:
Pump control systems
Fan speed regulation
Mixer drives
Material Handling:
Crane and hoist control
Automated storage systems
Sorting conveyors

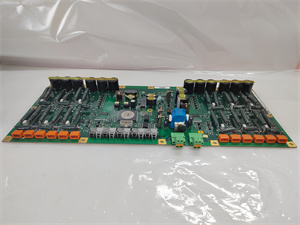

ABB DDC779BE02 3BHE006805R0002
Related Model Recommendations
| Model | Description |
| DDC779AE02 | Basic version with reduced memory |
| DDC779CE02 | Enhanced version with additional interfaces |
| DDA779BE02 | Analog I/O extension module |
| DDP779BE02 | PROFINET-enabled variant |
Installation & Commissioning
Installation Requirements:
24V DC power supply (±10%)
DIN rail mounting with 50mm clearance
Shielded communication cables
Proper grounding (min. 4mm² conductor)
Commissioning Steps:
Mechanical installation on DIN rail
Electrical connections verification
Motor data input and auto-tuning
Application parameters configuration
Functional testing under load
Maintenance Recommendations:
Annual inspection of connections
Biennial firmware updates
5-year preventive replacement
Continuous temperature monitoring
Service & Support
ABB provides:
36-month standard warranty
24/7 global technical support
Firmware update services
On-site commissioning assistance
10-year spare parts availability
The 3BHE006805R0002 undergoes:
500-hour burn-in testing
Full functional validation
Environmental stress screening
EMC compliance verification
