Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB DCF506-0140-51 |
| Manufacturer | ABB |
| Product category | DC Drive Power Converter Module |
| Input voltage range | 12-48V DC |
| Output voltage | 5V DC |
| Maximum output current | 140A DC |
| Efficiency | >90% |
| Processor | 32-bit RISC processor |
| Weight | 8 kg |
| Dimensions | 33.5 mm (height) x 170 mm (width) x 53 mm (depth) |
| Operating temperature | -20°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Communication protocols | Modbus TCP, Ethernet/IP |
| Overvoltage protection | Yes |
| Real-time monitoring | Yes |

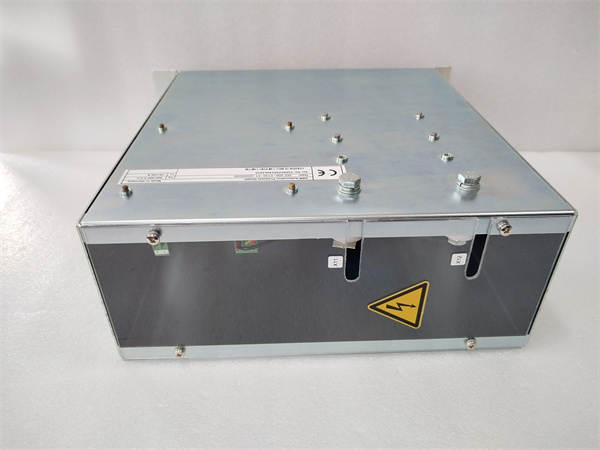

ABB DCF506-0140-51
Product Introduction
The ABB DCF506-0140-51 is a high-performance DC drive power converter module designed for industrial applications. It is part of the ABB DCS800 series and is specifically designed to provide efficient and reliable power conversion for DC drives. The module features a compact design, high efficiency, and advanced protection mechanisms to ensure stable operation in demanding industrial environments.
Core Advantages and Technical Highlights
High Efficiency and Reliability: The DCF506-0140-51 features a 32-bit RISC processor and an efficiency of over 90%, ensuring optimal performance and energy savings.
Overvoltage Protection: The module includes overvoltage protection to safeguard the system from voltage surges, ensuring safe and stable operation.
Real-Time Monitoring: The DCF506-0140-51 supports real-time monitoring and communication through Modbus TCP and Ethernet/IP protocols, allowing seamless integration with existing control systems.
Compact Design: The module has a compact size (33.5 mm x 170 mm x 53 mm) and weighs approximately 8 kg, making it easy to install and maintain.
Wide Operating Range: The module operates reliably within a temperature range of -20°C to +50°C and a humidity range of 5% to 95% non-condensing.
ABB DCF506-0140-51
Typical Application Scenarios
The ABB DCF506-0140-51 is widely used in various industrial sectors, including:
-
Industrial Automation: Providing stable DC power for motor control and automation systems.
-
Power Electronics: Used in power conversion systems for efficient energy management.
-
Transportation: Ensuring reliable power supply in electric vehicle charging stations and railway traction systems.
Related Model Recommendations
-
ABB DCS800 Series: The DCF506-0140-51 is part of the ABB DCS800 series, which includes other power converters and modules for various industrial applications.
-
ABB ACS880 Drives: Compatible with the DCF506-0140-51 for precise motor speed and torque regulation.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB DCF506-0140-51, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +50°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability.
Maintenance Suggestions
To maintain the ABB DCF506-0140-51, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
