Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB D674A906U01 |
| Manufacturer | ABB |
| Product category | Industrial Control Module |
| Input voltage | 24 V DC (±20%) |
| Operating temperature | -40°C to +85°C |
| Communication protocol | HART |
| Power consumption | Max 2.5 mA @ 24 VDC |
| Dimensions | 35 mm x 22 mm x 115 mm |
| Protection class | IP67 |
| Certifications | CE, RoHS |

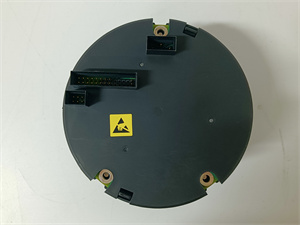

ABB D674A906U01
Product Introduction
The ABB D674A906U01 is a high-performance industrial control module designed for precise data acquisition and communication in industrial automation systems. It is part of ABB’s advanced industrial control modules series and is specifically designed for use in harsh industrial environments. The module features a robust design, high precision, and reliable performance, making it suitable for a wide range of applications.
Core Advantages and Technical Highlights
High Precision and Reliability: The D674A906U01 is designed to provide high-precision data acquisition and communication. It supports a wide operating temperature range (-40°C to +85°C) and features an IP67 protection rating, ensuring durability in harsh industrial conditions.
Advanced Communication: The module supports the HART communication protocol, enabling seamless integration with various industrial devices and systems. It also features a maximum power consumption of 2.5 mA at 24 VDC, ensuring efficient operation.
Compact Design: The D674A906U01 has a compact size (35 mm x 22 mm x 115 mm), making it easy to integrate into existing control systems without compromising functionality.
Versatile Applications: The module is widely used in various industrial sectors, including oil and gas, chemical processing, and manufacturing. It is particularly suitable for applications requiring reliable communication and data transmission under demanding conditions.

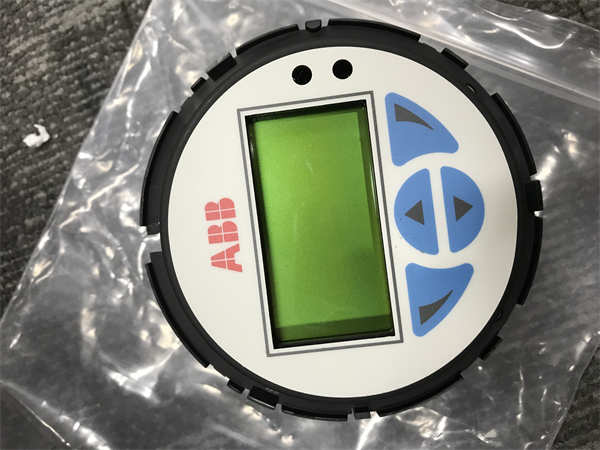

ABB D674A906U01
Typical Application Scenarios
The ABB D674A906U01 is widely used in various industrial sectors, including:
-
Oil and Gas: Real-time monitoring and control of flow rates in pipelines and processing plants.
-
Chemical Processing: Precise measurement and control of fluid flow in chemical reactors and processing units.
-
Manufacturing: Efficient data acquisition and communication in production lines to optimize processes.
Related Model Recommendations
-
ABB D674A905U01: A similar module with different specifications, suitable for applications requiring a different voltage or communication protocol.
-
ABB D674A880U01: An older model that the D674A906U01 replaces, suitable for legacy systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB D674A906U01, ensure that the environment meets the specified requirements, including an operating temperature range of -40°C to +85°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB D674A906U01, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
