Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CI810B 3BSE020520R |
| Manufacturer | ABB |
| Product category | Communication Interface Module |
| Communication Protocol | AF 100 (based on PROFIBUS DP) |
| Data Transfer Rate | Up to 5 Mbps |
| Operating Voltage | 24V DC |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 87 mm x 250 mm x 158 mm |
| Weight | 0.5 kg |
| Channels | 2 |
| Included Components | 1 Power Supply Connector, 1 Modulebus Terminator, 2 Terminal Blocks |
| Software Version | Basic system software version 1.5 loaded |

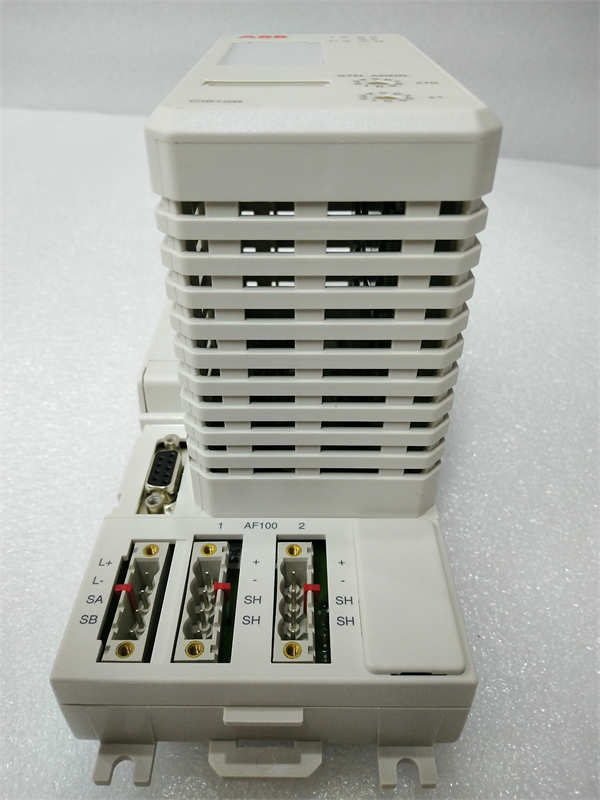

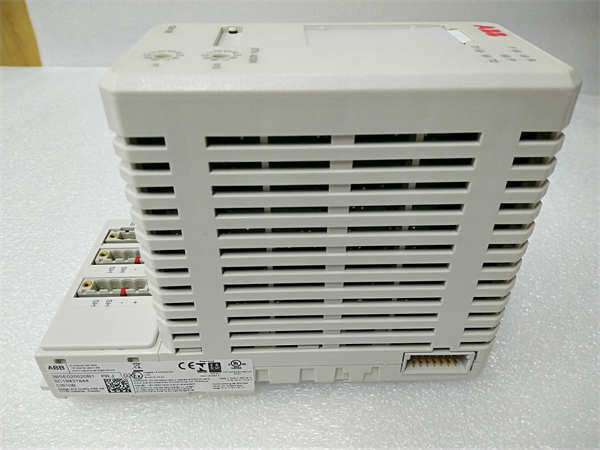

CI810B 3BSE020520R
Product Introduction
The ABB CI810B 3BSE020520R is a high-performance fieldbus communication interface module designed for seamless integration into complex industrial automation systems. It enables high-speed data communication between ABB’s 800xA Distributed Control System (DCS) and field devices on the AF 100 fieldbus network.
Core Advantages and Technical Highlights
Advanced Communication Capabilities: The CI810B supports the AF 100 fieldbus protocol, based on PROFIBUS DP, with a data transfer rate of up to 5 Mbps, ensuring fast and reliable communication.
Robust Design: Built for industrial environments, the CI810B operates efficiently within a wide temperature range of -40°C to +70°C and offers IP20 protection.
User-Friendly Configuration: The module includes built-in LED indicators for real-time status monitoring and error detection, simplifying maintenance and troubleshooting.
Included Components: The CI810B comes with 1 power supply connector, 1 modulebus terminator, and 2 terminal blocks, making it easy to integrate into existing systems.
CI810B 3BSE020520R
Typical Application Scenarios
The ABB CI810B 3BSE020520R is widely used in various industrial sectors:
-
Manufacturing Plants: For real-time control and monitoring of production lines.
-
Power Generation Facilities: To monitor and control power plants and substations.
-
Process Control: In chemical, oil, and gas industries for process monitoring and regulation.
-
Water Treatment Plants: For controlling pumps and valves in water treatment processes.
-
Building Automation: For lighting, HVAC systems, and other automation equipment in large buildings.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the CI810B for advanced automation control.
-
ABB AI810: An analog input module for precise data acquisition, suitable for monitoring drive systems.
-
ABB DI810: A digital input module that can be used alongside the CI810B to provide a complete I/O solution.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-40°C to +70°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the CI810B 3BSE020520R, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
