Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CI801 |
| Manufacturer | ABB |
| Product category | Communication Interface Module |
| Communication Protocol | PROFIBUS DP-V1, Modbus RTU, EtherNet/IP, PROFINET IO |
| Data Transfer Rate | Up to 12 Mbps (PROFIBUS DP) |
| Operating Voltage | 24V DC |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 85.8 mm x 136 mm x 58.5 mm |
| Weight | 0.3 kg |
| Flash Memory | 6 MB |
| NVRAM | 8 KB |
| IOX Processor | 50 MHz |
| Power Consumption | 140 mA (typical) |
ABB CI801
Product Introduction
The ABB CI801 is a high-performance communication interface module designed for industrial automation systems. It is part of the ABB S800 I/O system and is used to facilitate efficient data exchange between control systems and field devices. The CI801 supports multiple communication protocols, including PROFIBUS DP-V1, Modbus RTU, EtherNet/IP, and PROFINET IO, ensuring seamless integration with various industrial automation systems.
Core Advantages and Technical Highlights
Advanced Communication Capabilities: The CI801 supports multiple communication protocols, making it highly versatile for various industrial applications. It features a PROFIBUS DP-V1 interface with a data transfer rate of up to 12 Mbps.
Redundant Communication: The module supports redundant communication, enhancing system reliability and availability.
Robust Design: Built for industrial environments, the CI801 operates efficiently within a wide temperature range of -40°C to +70°C and offers IP20 protection.
User-Friendly Configuration: The CI801 features built-in LED indicators for real-time status monitoring and error detection, simplifying maintenance and troubleshooting.
HART Protocol Support: The module supports HART protocol, enabling communication with HART-enabled devices.

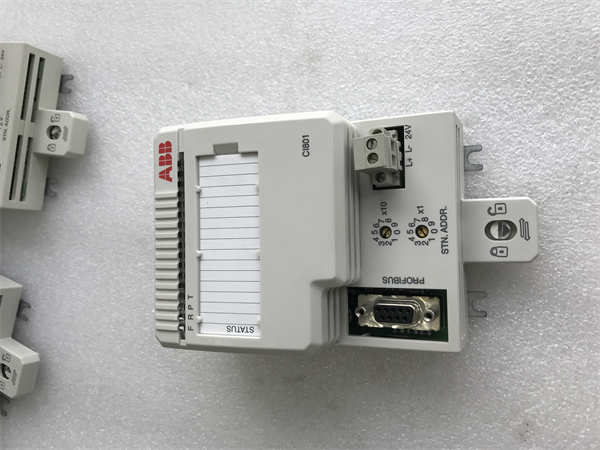

CI801
Typical Application Scenarios
The ABB CI801 is widely used in various industrial sectors:
-
Manufacturing Plants: For real-time control and monitoring of production lines.
-
Power Generation Facilities: To monitor and control power plants and substations.
-
Process Control: In chemical, oil, and gas industries for process monitoring and regulation.
-
Water Treatment Plants: For controlling pumps and valves in water treatment processes.
-
Building Automation: For lighting, HVAC systems, and other automation equipment in large buildings.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the CI801 for advanced automation control.
-
ABB AI810: An analog input module for precise data acquisition, suitable for monitoring drive systems.
-
ABB DI810: A digital input module that can be used alongside the CI801 to provide a complete I/O solution.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-40°C to +70°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the CI801, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
