Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB CI541V1 3BSE014666R1 |
| Manufacturer | ABB |
| Product Category | Communication Interface Module |
| Compatible System | AC 800M Controller |
| Interface Type | PROFIBUS DP-V1 |
| Data Transfer Rate | Up to 12 Mbps |
| Power Supply | 24V DC (±10%) |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Dimensions (W×H×D) | 45×130×115 mm |
| Redundancy Support | Yes (with redundant module) |
| Certifications | CE, UL, IEC 61131-2 |

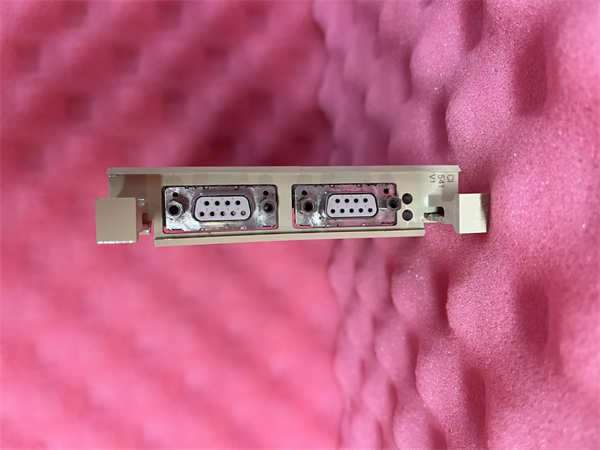

ABB CI541V1 3BSE014666R1
Product Introduction
The ABB CI541V1 3BSE014666R1 is a high-performance PROFIBUS DP-V1 communication interface module designed for ABB’s AC 800M programmable automation controller. This industrial-grade module enables seamless integration of field devices and remote I/O into PROFIBUS DP networks, supporting both cyclic and acyclic data communication for comprehensive automation solutions.
Featuring advanced diagnostics and configurable parameters, the CI541V1 module is particularly valuable in process automation applications requiring reliable fieldbus communication. Its rugged design ensures stable operation in harsh industrial environments, making it ideal for power plants, oil & gas facilities, and manufacturing automation systems.
Core Advantages and Technical Highlights
High-Speed PROFIBUS Communication:
Supports PROFIBUS DP-V1 at speeds up to 12 Mbps
Deterministic data exchange for real-time control applications
Automatic baud rate detection for simplified configuration
Robust Industrial Design:
Wide operating temperature range (0°C to +60°C)
Electrical isolation for noise immunity
Compact form factor for space-efficient installation
Advanced Diagnostics:
LED status indicators for quick fault identification
Comprehensive diagnostic data accessible via controller
PROFIBUS network monitoring capabilities
Flexible Configuration:
Supports up to 244 bytes of I/O data per node
Configurable watchdog timer for network supervision
GSD file available for easy integration
Typical Application Scenarios
The ABB CI541V1 3BSE014666R1 is widely used in:
Power Generation:
Turbine control systems
Generator excitation control
Substation automation
Process Industries:
Oil & gas processing plants
Chemical manufacturing
Pharmaceutical production
Manufacturing Automation:
Automotive production lines
Robotics control systems
Material handling equipment
Water Treatment:
Pump station control
Filtration system automation
SCADA system integration

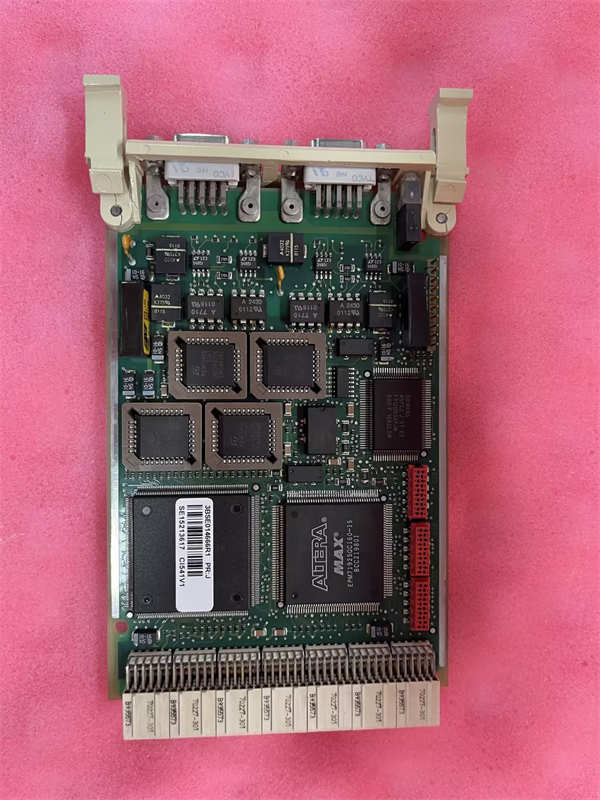

ABB CI541V1 3BSE014666R1
Related Model Recommendations
ABB CI542 – Redundant PROFIBUS DP interface module
ABB CI547 – PROFINET communication interface
ABB PM864AK01 – Processor module for AC 800M
ABB TB811 – Termination board for I/O modules
ABB S800 I/O – Remote I/O system for distributed automation
ABB CMA120 – Ethernet communication module
Installation and Commissioning
Installation Guidelines:
Mount in proper slot of AC 800M controller
Use shielded PROFIBUS cables for noise immunity
Verify proper termination resistors at bus ends
Ensure adequate clearance for ventilation
Commissioning Steps:
Configure PROFIBUS network parameters
Set node address and communication speed
Verify connection with all field devices
Test redundancy functionality (if applicable)
Document all configuration settings
Maintenance Recommendations:
Regularly check PROFIBUS cable connections
Monitor communication status indicators
Keep firmware updated to latest version
Perform periodic network diagnostics
Service and Warranty
ABB provides:
Standard 3-year warranty
Global technical support network
Firmware update services
On-site repair options
Comprehensive documentation
The ABB CI541V1 3BSE014666R1 represents ABB’s commitment to reliable industrial communication, combining advanced PROFIBUS capabilities with rugged industrial design for demanding automation applications.
