Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB CI522AK04 3BSE018451R1 |
| Manufacturer | ABB |
| Product category | Communication Interface Module |
| Interface Type | AF100 Interface Module |
| Communication Protocols | Modbus RTU, PROFIBUS DP, CANopen, IEC 61850, OPC UA, EtherNet/IP, PROFINET |
| Data Transfer Rate | Ethernet: ≤1 Gbps (full-duplex mode, TCP/IP hardware acceleration); Serial: ≤12 Mbps |
| Ethernet Interface | 2×10/100/1000 Mbps (supports redundant ring network, switch time <20ms) |
| Serial Interface | 1×RS-485 |
| Fiber Interface | 1×SFP slot (optional single-mode/multi-mode module, transmission distance ≤40km) |
| Processor | Dual-core ARM Cortex-A53 (1.2 GHz, hardware encryption engine) |
| Storage Capacity | 1 GB DDR4 RAM; 4 GB eMMC Flash (support for SD card expansion up to 128 GB) |
| Power Supply | 24V DC (range 18-32V DC, supports redundant dual power inputs) |
| Operating Temperature | -25°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 (standard cabinet installation) / IP65 (optional sealed enclosure) |
| Dimensions (W x H x D) | 120 mm x 27 mm x 265 mm |
| Weight | 0.2 kg |
| Compliance | Exempt from RoHS Directive 2011/65/EU under Article 2(4)(c), (e), (f), and (j) |

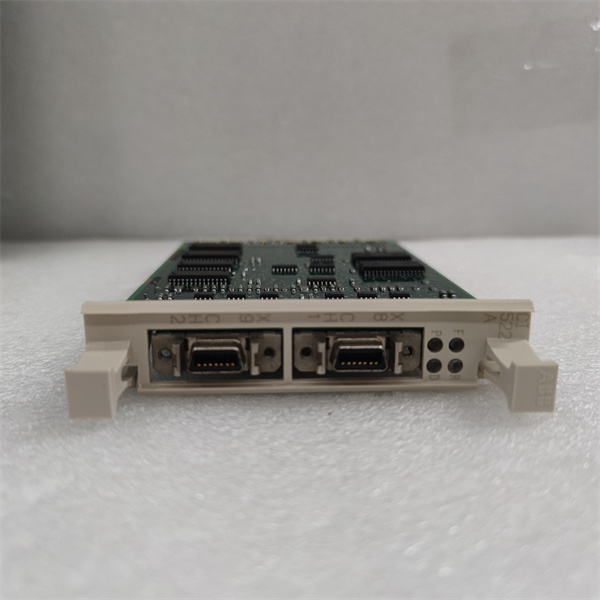

CI522AK04 3BSE018451R1
Product Introduction
The ABB CI522AK04 3BSE018451R1 is a high-performance communication interface module designed for industrial automation systems. It is part of ABB’s AF100 series and is used to facilitate robust communication between ABB drives and various control systems. This module supports multiple communication protocols, including Modbus RTU, PROFIBUS DP, CANopen, IEC 61850, OPC UA, EtherNet/IP, and PROFINET, ensuring seamless integration with different industrial automation systems.
Core Advantages and Technical Highlights
Advanced Communication Capabilities: The CI522AK04 3BSE018451R1 supports a wide range of communication protocols, making it highly versatile for various industrial applications. It features two Ethernet interfaces with a data transfer rate of up to 1 Gbps and a serial interface with a maximum baud rate of 12 Mbps.
Redundant Communication: The module supports redundant ring networks, ensuring high availability and reliability in critical industrial applications.
Robust Design: Built to withstand harsh industrial environments, the CI522AK04 3BSE018451R1 operates efficiently within a wide temperature range of -25°C to +70°C and offers IP20 protection for standard cabinet installations.
User-Friendly Configuration: The module can be easily configured using ABB’s dedicated software, allowing users to set up communication parameters and other settings quickly.

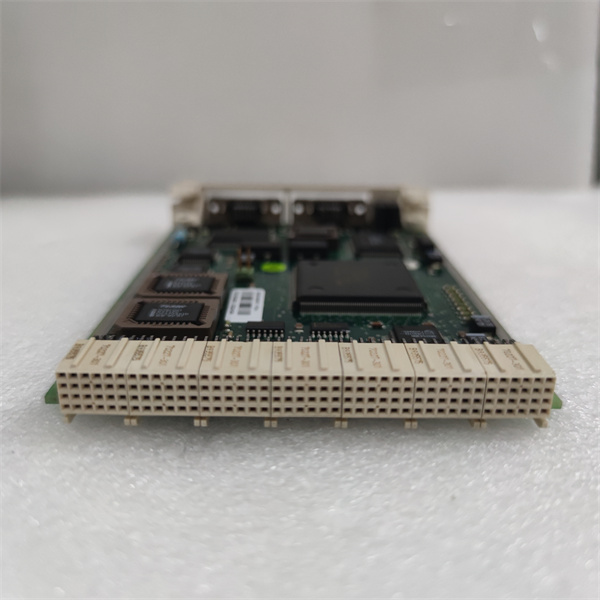

CI522AK04 3BSE018451R1
Typical Application Scenarios
The ABB CI522AK04 3BSE018451R1 is widely used in various industrial sectors:
-
Manufacturing Plants: For real-time control and monitoring of production lines.
-
Power Generation Facilities: To monitor and control power plants and substations.
-
Process Control: In chemical, oil, and gas industries for process monitoring and regulation.
-
Building Automation: For lighting, HVAC systems, and other automation equipment in large buildings.
-
Water Treatment Plants: To monitor and control water treatment processes.
Related Model Recommendations
-
ABB ACS880 MD Drive Section: A powerful drive system that can be integrated with the CI522AK04 for advanced motion control.
-
ABB AC800M: A versatile PLC controller that can be paired with the CI522AK04 for comprehensive automation control.
-
ABB AI810: An analog input module for precise data acquisition, suitable for monitoring drive systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-25°C to +70°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for panel mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the CI522AK04 3BSE018451R1, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
