Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AI815 3BSE052604R1 |
| Manufacturer | ABB |
| Product category | Analog Input Module |
| Input Channels | 8 channels |
| Signal Types | 0(4)-20 mA, 0(1)-5 V, 12-bit single-ended input |
| Communication Protocol | HART |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Dimensions | 102 mm (depth) x 119 mm (height) x 45 mm (width) |
| Weight | 0.2 kg |

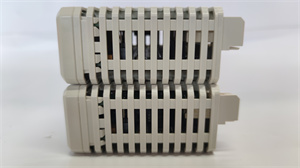

ABB AI815 3BSE052604R1
Product Introduction
The ABB AI815 3BSE052604R1 is an advanced analog input module designed for precise and reliable data acquisition in industrial control systems. It is part of the ABB Ability™ System 800xA® family and is compatible with ABB’s S800 I/O system. This module features 8 universal input channels that can handle a variety of signal types, including 0(4)-20 mA, 0(1)-5 V, and supports HART communication for advanced diagnostics and remote configuration. Its compact design and robust performance make it ideal for space-constrained control cabinets and demanding industrial environments.
Core Advantages and Technical Highlights
High Precision and Versatility: The ABB AI815 3BSE052604R1 offers high-precision data acquisition with a 12-bit resolution, ensuring accurate measurement of analog signals. It supports multiple signal types, providing flexibility for various sensor types and applications.
HART Communication: This module supports HART protocol, enabling advanced diagnostics and remote configuration of connected devices. This feature enhances system integration and simplifies maintenance.
Robust Design: Designed for industrial environments, the ABB AI815 3BSE052604R1 operates reliably within a wide temperature range of 0°C to +55°C. Its IP20 protection rating ensures protection against dust and non-condensing moisture.
Compact and Space-Efficient: With dimensions of 102 mm (depth) x 119 mm (height) x 45 mm (width), the module saves valuable space in control cabinets. This compact design is ideal for applications where space is limited.
Easy Integration: The ABB AI815 3BSE052604R1 integrates seamlessly with ABB’s System 800xA and other industrial control systems, simplifying setup and maintenance. It is compatible with a range of Module Termination Units (e.g., TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838) for optimal performance.

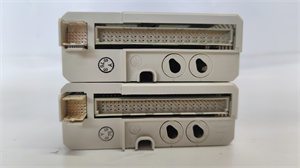

ABB AI815 3BSE052604R1
Typical Application Scenarios
The ABB AI815 3BSE052604R1 is widely used in industries where precise analog signal acquisition is essential. In manufacturing plants, it monitors process variables such as temperature, pressure, and flow rates, enabling efficient process control and optimization. In energy management systems, the module collects data from sensors to monitor and manage energy consumption. It is also used in water treatment plants to monitor water quality parameters and control treatment processes. The ABB AI815 3BSE052604R1 is an ideal solution for applications requiring high precision, fast data processing, and reliable performance.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the ABB AI815 for advanced automation control.
-
ABB AO810: A complementary analog output module for precise control of actuators and valves.
-
ABB DI810: A digital input module that can be used alongside the ABB AI815 to provide a complete I/O solution.
-
ABB AI801: An alternative analog input module with fewer channels, suitable for applications requiring lower input density.
-
ABB AC500: A versatile PLC platform that can be used in conjunction with the ABB AI815 for comprehensive control systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB AI815 3BSE052604R1, ensure the environment meets the specified temperature and humidity requirements (0°C to +55°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the ABB AI815 3BSE052604R1, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the module, ensuring optimal performance and efficiency in their industrial applications.
