Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AI02J |
| Manufacturer | ABB |
| Product category | Analog Input Module |
| Input Channels | 16 isolated channels with HART support |
| Signal Types | 4-20 mA, 1-5 V DC |
| Accuracy | ±0.1% of reading |
| Resolution | 16-bit |
| Sampling Rate | 100 samples/second |
| Voltage Input | 24V DC (±10% tolerance) |
| Power Consumption | ≤15W |
| Communication | HART protocol (via dedicated modem) |
| Operating Temperature | -20°C to +60°C (non-condensing) |
| Dimensions | 190 mm (W) x 118 mm (H) x 34 mm (D) |
| Certifications | CE, RoHS, IP20 protection rating |
| Compatibility | ABB Symphony Plus, AC800M, and third-party controllers |

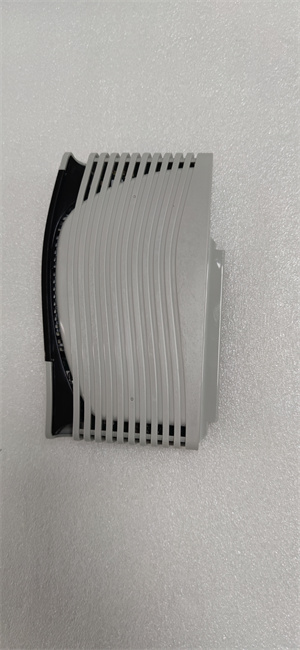

ABB AI02J
Product Introduction
The ABB AI02J is a high-performance analog input module designed for industrial automation systems, offering reliable signal acquisition and seamless integration with ABB’s Symphony Plus and AC800M control platforms. Engineered to meet the demands of critical applications in manufacturing, energy, and process industries, the ABB AI02J ensures precise data capture and robust operation in harsh environments. Its modular design supports 16 channels with HART communication protocol, enabling real-time monitoring of temperature, pressure, and flow signals while providing diagnostic capabilities for predictive maintenance. This module excels in applications requiring high accuracy and flexibility, such as petrochemical plants, power generation facilities, and water treatment systems.
Core Advantages and Technical Highlights
High Precision and Reliability: The ABB AI02J delivers 16-bit resolution and ±0.1% accuracy, ensuring precise signal measurement in critical processes. Its error-checking algorithms and redundant power supply design minimize the risk of data corruption, with a mean time between failures (MTBF) exceeding 100,000 hours.
HART Protocol Support: This module enables bidirectional communication with intelligent sensors, allowing remote configuration and diagnostics without manual intervention. It supports up to 24 HART v5.4 secondary variables, enhancing device diagnostics and data transparency.
Dual-Channel Isolation: The ABB AI02J features 1×16 group isolation with 1500V insulation, protecting against ground loops and voltage spikes, and enhancing system stability in high-interference environments.
Modular Design: With a compact form factor and standardized mounting options, the ABB AI02J simplifies installation and maintenance, reducing downtime during system upgrades.
Energy Efficiency: Low power consumption (≤15W) contributes to reduced operational costs, while the hot-swappable feature enables component replacement without system shutdown.
Wide Operating Range: The module operates reliably from -20°C to +60°C and supports a wide input voltage range of 10-30 VDC, making it suitable for various industrial environments.
ABB AI02J
Typical Application Scenarios
The ABB AI02J is widely used across multiple industries due to its versatility and high performance:
-
Petrochemical Plants: Monitoring pressure and temperature in reactors and distillation columns.
-
Power Generation: Analyzing steam turbine performance and managing boiler control systems.
-
Water Treatment: Measuring pH levels, flow rates, and chemical concentrations in wastewater treatment processes.
-
Manufacturing: Optimizing conveyor belt speeds and robotic arm movements in assembly lines.
In a large petrochemical refinery, the ABB AI02J was implemented to upgrade the crude oil distillation unit. By integrating 16 HART-enabled pressure sensors, the module provided real-time data on column pressures, enabling operators to detect anomalies and adjust processes dynamically. The system’s predictive maintenance capabilities reduced unplanned outages by 25%, while energy consumption decreased by 12% due to optimized control loops.
Related Model Recommendations
-
ABB AC800M: A powerful controller that integrates seamlessly with the ABB AI02J for advanced automation control.
-
ABB Symphony Plus: A comprehensive DCS platform that leverages the ABB AI02J for precise process control and monitoring.
-
ABB AI04J: A similar analog input module with additional features, suitable for applications requiring higher channel density.
-
ABB AO02J: A complementary analog output module, ideal for controlling actuators and valves in conjunction with the ABB AI02J.
-
ABB DI08J: A digital input module that can be used alongside the ABB AI02J to provide a complete I/O solution for industrial automation systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB AI02J, ensure the environment meets the specified temperature and humidity requirements (-20°C to +60°C, non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Avoid powering the module during installation to prevent electrical damage.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software (e.g., System 800xA) for sensor setup and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during installation.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the ABB AI02J, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the module, ensuring optimal performance and efficiency in their industrial applications.
