Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB ACU-01B 3HNA024871-001 |
| Manufacturer | ABB |
| Product category | Air Control Unit Module |
| Input Voltage | 24V DC (±10%) or 110-230V AC |
| Output Channels | 3 channels |
| Communication | Ethernet (RJ45, 10/100 Mbps) |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 (basic) / IP65 (if ruggedized) |
| Installation Method | Internal installation in ABB robot control cabinet |
| Weight | 1.99 kg (4.39 lbs) |

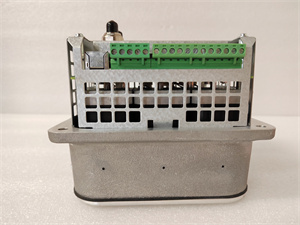

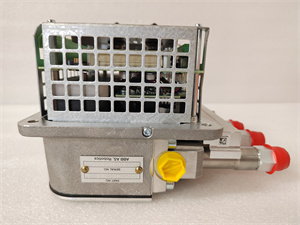

ABB ACU-01B 3HNA024871-001
Product Introduction
The ABB ACU-01B 3HNA024871-001 is a high-performance air control unit module designed specifically for industrial automation applications, particularly in robotic spraying systems. As part of the ABB Ability™ System 800xA® family, this module offers precise control of air pressure and flow, ensuring optimal performance in spray painting and coating processes. The ABB ACU-01B 3HNA024871-001 is equipped with advanced control technology and an integrated Ethernet interface, enabling seamless integration with ABB robots and other automation systems. Its robust design and high reliability make it suitable for demanding industrial environments, ensuring continuous operation and minimal downtime.
Core Advantages and Technical Highlights
The ABB ACU-01B 3HNA024871-001 stands out for its precision, flexibility, and reliability:
Precision Control: With three independent air control channels, the ABB ACU-01B 3HNA024871-001 can precisely regulate air pressure and flow, ensuring consistent and high-quality spray application. This precision helps optimize paint usage and reduce material waste.
Integrated Communication: The module features an integrated Ethernet interface, supporting high-speed communication with ABB robot systems and other automation components. This seamless integration simplifies system setup and enables real-time monitoring and control.
High Reliability: Designed with industrial-grade components, the ABB ACU-01B 3HNA024871-001 offers high reliability and durability, even in harsh environments. Its IP20 and optional IP65 protection ratings ensure protection against dust and moisture, further enhancing its robustness.
Easy Integration and Maintenance: The ABB ACU-01B 3HNA024871-001 is designed for easy installation and maintenance. Its modular design allows for quick deployment and simple troubleshooting, reducing downtime and maintenance costs.
Wide Application Scope: This module is suitable for a variety of industries, including automotive, aerospace, and general manufacturing, where high-quality surface finishing is required. Its ability to control multiple air channels makes it ideal for complex spraying tasks involving different spray patterns and materials.
ABB ACU-01B 3HNA024871-001
Typical Application Scenarios
The ABB ACU-01B 3HNA024871-001 is widely used in industrial spraying applications, where precise control of air and fluid parameters is critical. In the automotive industry, it controls the air supply for robotic spray guns, ensuring uniform paint application and high-quality finishes. In aerospace manufacturing, the module helps achieve precise coating of aircraft components, meeting stringent quality standards. For general industrial applications, the ABB ACU-01B 3HNA024871-001 provides reliable control of spraying processes, enhancing production efficiency and product quality. Its compatibility with ABB robot systems and other automation equipment makes it a versatile solution for modern industrial coating processes.
Related Model Recommendations
-
ABB ACU-01B 3HNA013719-001: This is a previous model of the ABB ACU-01B 3HNA024871-001, offering similar functionality but with fewer advanced features. It is suitable for applications where basic air control is sufficient.
-
ABB DSQC652 3HAC025917-001: This I/O module is often used in conjunction with the ABB ACU-01B 3HNA024871-001 to provide additional input/output capabilities for robotic systems. It enhances the flexibility and expandability of the automation setup.
-
ABB IRB 52: This is a professional spraying robot equipped with integrated spraying process equipment. The ABB ACU-01B 3HNA024871-001 can be paired with the IRB 52 to provide precise air control for optimal spraying performance.
-
ABB ACU-01B 3HNA024871-001 02: This variant of the air control unit is designed for specific applications requiring different configurations or additional features. It offers enhanced compatibility and performance for complex robotic spraying tasks.
-
ABB ACU-01B 3HNA024871-001 03: This model is an upgraded version with improved durability and additional safety features. It is ideal for applications in harsh environments where reliability and safety are paramount.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB ACU-01B 3HNA024871-001, ensure that the installation environment meets the specified temperature and humidity requirements (-20°C to +70°C and 5% to 95% RH non-condensing). Prepare the necessary tools, such as a torque wrench for tightening connections, and ensure that the installation area is free from dust and moisture to prevent damage to the module. Follow the manufacturer’s guidelines for proper grounding and shielding to avoid electromagnetic interference.
Maintenance Suggestions: Regular maintenance is crucial for the long-term performance of the ABB ACU-01B 3HNA024871-001. Perform routine inspections of the module’s connections and cooling system to ensure proper airflow and prevent overheating. Clean the module’s surface and ventilation openings regularly to remove dust and debris. Monitor the module’s performance using diagnostic tools to detect potential issues early and replace any worn or damaged components promptly. Keeping a stock of essential spare parts, such as fuses and cooling fans, can help minimize downtime during maintenance.
Service and Guarantee Commitment
ABB is committed to the quality and reliability of the ABB ACU-01B 3HNA024871-001, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the air control unit, ensuring optimal performance and efficiency in their industrial applications.
