Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB 70EB02C-ES |
| Manufacturer | ABB |
| Product category | Industrial Automation Control Module |
| Operating Voltage | 24 V DC |
| Input Channels | 16 |
| Input Type | Digital (24V DC) |
| Response Time | 0.5 μs |
| Isolation Voltage | 1500 V DC |
| Operating Temperature Range | -25°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 100 mm × 100 mm × 120 mm |
| Weight | 0.2 kg |
| Certifications | CE, UL, cULus |
| Compatibility | ABB Procontrol P13 series |

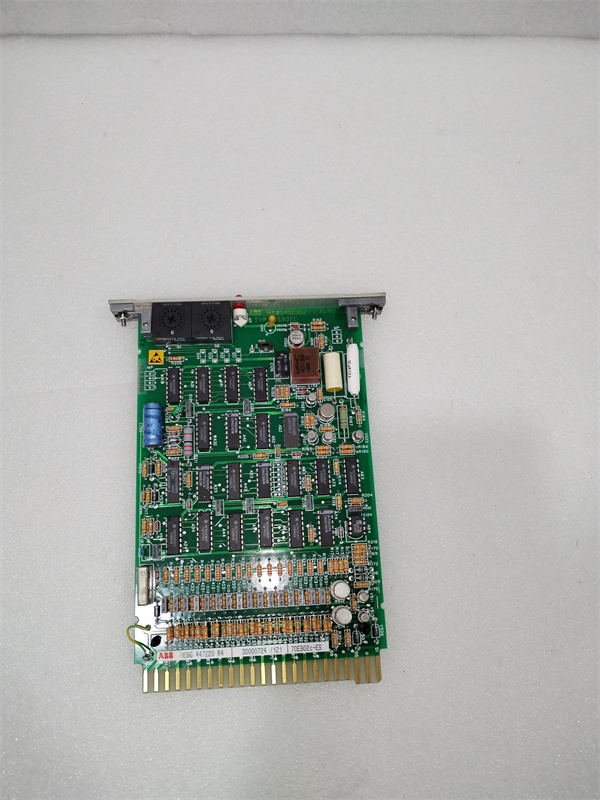

ABB 70EB02C-ES
Product Introduction
The ABB 70EB02C-ES is a high-performance digital input module designed for industrial automation and process control systems. It is part of the ABB Procontrol P13 series and is used to receive and process signals from digital input devices such as switches, sensors, and buttons.
Core Advantages and Technical Highlights
-
High-Speed Signal Processing: With a response time of just 0.5 μs, the module ensures fast and accurate signal transmission and processing.
-
Robust Design: The module features a compact design and is constructed from high-grade materials, ensuring durability even under harsh industrial conditions.
-
Electrical Isolation: The module provides electrical isolation up to 1500 V DC, enhancing the stability and security of the system.
-
Easy Installation and Maintenance: The module supports DIN rail installation and features LED indicators for easy troubleshooting and maintenance.
-
Wide Application Range: Suitable for various industrial applications, including machine control, production line automation, material handling, building automation, and environmental control.

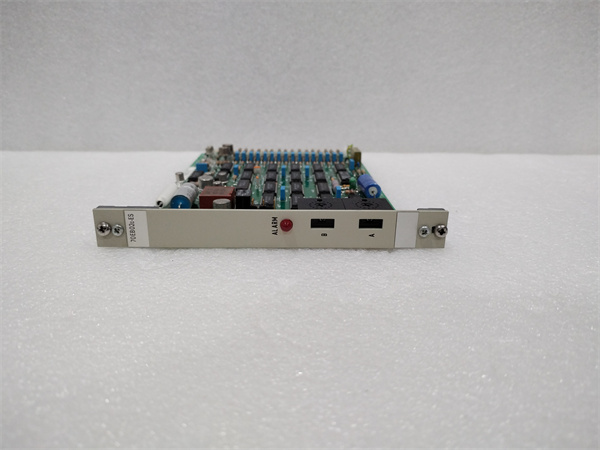

ABB 70EB02C-ES
Typical Application Scenarios
The ABB 70EB02C-ES is widely used in various industrial applications, including:
-
Manufacturing: Monitoring and controlling production lines and robotic systems.
-
Process Control: Managing industrial processes such as chemical and petrochemical plants.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-
ABB 70EB02A-ES: A similar module with different specifications.
-
ABB 70EA02A-ES: A module for additional control applications.
-
ABB 70EA02C-ES: A module with enhanced features and higher performance.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB 70EB02C-ES, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-25°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ABB 70EB02C-ES. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The ABB 70EB02C-ES is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
