Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 5SHX1445H0001 3BHL000391P0101 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Type | IGCT Module |
| Operating Voltage | 1700V |
| Rated Current | 1445A |
| Switching Frequency | 20kHz |
| Cooling Method | Water-cooled |
| Package Type | TO-247 |
| Dimensions | 142mm x 127mm x 36mm |
| Weight | 1.2 kg |
| Operating Temperature Range | -40°C to +125°C |
| Protection Class | IP67 |
| Certifications | CE, UL, RoHS |

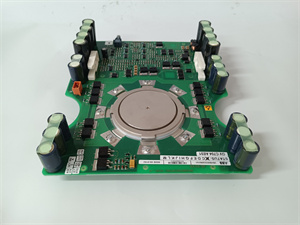

ABB 5SHX1445H0001 3BHL000391P0101
Product Introduction
The ABB 5SHX1445H0001 3BHL000391P0101 is a high-performance IGCT (Integrated Gate-Commutated Thyristor) module designed for high-power, high-voltage applications. It combines the high-speed switching characteristics of IGBTs with the high blocking voltage and low conduction loss of GTOs。
Core Advantages and Technical Highlights
High Power Density
The module integrates high-power IGCT chips in a compact package, achieving high power density。
Fast Switching
The module features fast on and off times, with switching frequencies up to 20kHz, suitable for high-frequency applications。
High Reliability
The module is designed for long-term stability in harsh industrial environments, with advanced packaging and protection technologies。
Low Losses
The module has low conduction voltage drop and high blocking voltage, reducing system heat loss and improving overall efficiency。

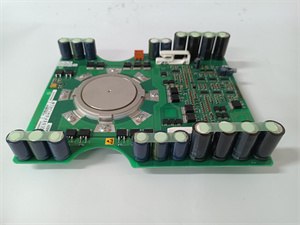

ABB 5SHX1445H0001 3BHL000391P0101
Typical Application Scenarios
The ABB 5SHX1445H0001 3BHL000391P0101 is widely used in:
-
Power Conversion Systems: For efficient energy transformation。
-
Static VAR Compensators (SVCs): For stabilizing voltage levels in power systems。
-
Flexible AC Transmission Systems (FACTS): For improving power flow control。
-
Wind Turbines: For renewable energy generation。
-
Solar Inverters: For converting solar energy into usable electricity。
-
Electric Vehicles: For managing high-power switching in EV systems。
Related Model Recommendations
-
ABB 5SHX0445D0001: A related model with similar specifications。
-
ABB 3BHB003230R0101: Another model in the same series with unique features。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
