Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 57310001-PK |
| Manufacturer | ABB |
| Product Category | Industrial Communication Processor |
| Operating Voltage | 100V to 240V |
| Power Consumption | Less than 5W |
| Communication Interface | Ethernet |
| Communication Protocols | Profinet, Modbus TCP/IP |
| Communication Rate | 10/100 Mbps |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions | 148mm x 105mm x 50mm |
| Weight | 0.2 kg |
| Certifications | CE, UL, CSA |

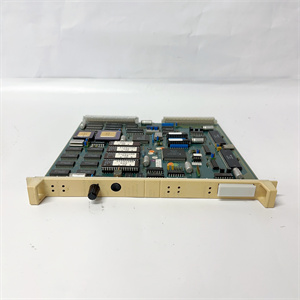

ABB 57310001-PK
Product Introduction
The ABB 57310001-PK (DSCA190V) is a high-performance communication processor module designed for industrial automation and control systems. It is part of the ABB Advant OCS (Open Control System) family and is compatible with Masterpiece 200 and 200/1 series systems.
Core Advantages and Technical Highlights
High Performance and Reliability
The ABB 57310001-PK features a robust design, ensuring reliable operation in harsh industrial environments. It supports multiple communication protocols, including Profinet and Modbus TCP/IP, facilitating seamless integration with various industrial devices.
Compact and Energy-Efficient
The module is compact in size and consumes minimal power, making it suitable for long-term use in energy-conscious manufacturing processes.
Versatile Communication Capabilities
The module supports a wide range of communication protocols, ensuring compatibility with different industrial systems and devices.

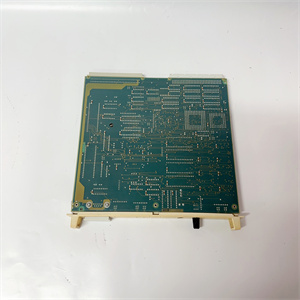

ABB 57310001-PK
Typical Application Scenarios
The ABB 57310001-PK is widely used in:
-
Process Control: For monitoring and controlling industrial processes in chemical, petrochemical, and pharmaceutical industries.
-
Power and Energy: For monitoring key parameters in power systems, ensuring stable and reliable power supply.
-
Renewable Energy: For monitoring and optimizing performance in wind and solar energy systems.
Related Model Recommendations
-
ABB DSCA190V 57310001-PK: A related model with similar specifications.
-
ABB DSCA190V 57310001-PK: Another model in the same series with unique features.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
