Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 3BSE042237R2 PP836A |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Display Characteristics | 10.1-inch color touchscreen, TFT LCD, 800 x 600 resolution |
| Processor | ARM9, 1 GHz |
| Memory | 2 GB RAM |
| Storage Medium | 2 GB SSD |
| Power Supply | 24V DC |
| Operating Temperature Range | -20°C to +60°C |
| Protection Rating | IP65 |
| Dimensions | 239 mm x 202 mm x 164 mm |
| Weight | 2.2 kg |
| Communication Interfaces | Ethernet, RS-232, RS-485 |
| Certifications | CE, UL, RoHS |

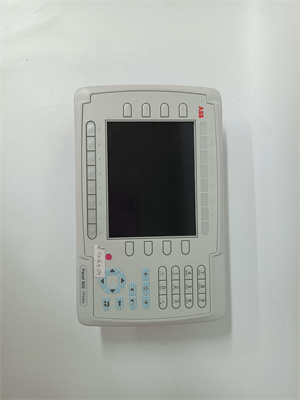

3BSE042237R2 PP836A
Product Introduction
The ABB 3BSE042237R2 PP836A is a high-performance industrial control module designed for the AC 800F Freelance control system. It provides an intuitive user interface and powerful functions to meet the needs of various industrial automation applications。
Core Advantages and Technical Highlights
High Precision and Reliability
The module features a high-resolution 10.1-inch color touchscreen with a resolution of 800 x 600 pixels, providing clear and detailed visual feedback。
User-Friendly Interface
It operates on the Windows CE operating system, offering a familiar interface and operation mode that is easy for users to navigate。
Versatile Communication Capabilities
The module supports multiple communication protocols, including Ethernet, RS-232, and RS-485, facilitating seamless integration with existing industrial systems。

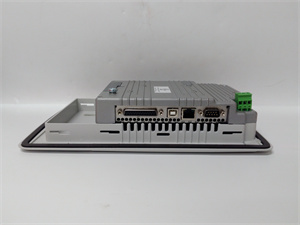

3BSE042237R2 PP836A
Typical Application Scenarios
The ABB 3BSE042237R2 PP836A is widely used in:
-
Process Control: For monitoring and controlling industrial processes such as temperature, pressure, and flow。
-
Manufacturing Automation: For real-time control of production lines and machinery。
-
Power Generation: For monitoring and controlling critical processes in power plants。
Related Model Recommendations
-
ABB PP835 3BSE042234R1: A related model with similar specifications。
-
ABB CI810B 3BSE020520R1: Another model in the same series with unique features。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
