Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3BHE014023R0101 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Series | AC500-S Safety PLC Series |
| Input Voltage Range | 24V DC |
| Output Voltage Range | 24V DC |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 22.5 mm × 100 mm × 75 mm |
| Weight | 0.3 kg |
| Certifications | CE, RoHS |
| Communication Protocols | RS-485, Modbus RTU, Ethernet |
| Protection Level | IP20 |
| Application Areas | Industrial Automation, Robotics, Electrical Automation |

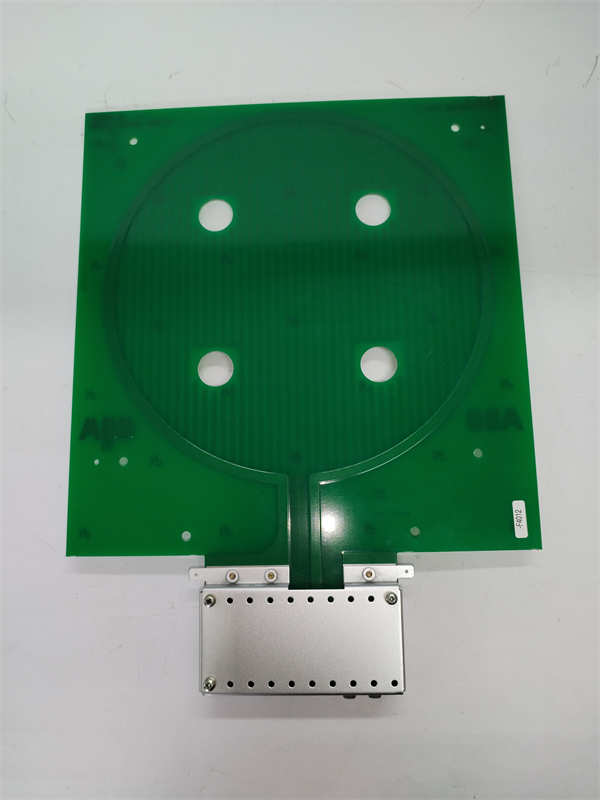

ABB 3BHE014023R0101 UFC789AE101
Product Introduction
The ABB 3BHE014023R0101 UFC789AE101 is a high-performance digital input module designed for the AC500-S safety PLC series. It offers seamless integration, enhanced reliability, and precise control in distributed control systems (DCS) and industrial automation applications.
Core Advantages and Technical Highlights
High Performance: The module provides 8 digital input channels, supporting 24 VDC voltage and 2 A current, meeting the needs of industrial safety control.
Fast Response: The response time is only 1 millisecond, ensuring a quick response to safety events.
High Safety: The module achieves SIL 3 and PLe safety levels, complying with international safety standards IEC 61508 and IEC 61131-6. It is suitable for industrial automation applications requiring high safety.
User-Friendly Interface: The module features a user-friendly interface with intuitive navigation keys, allowing for quick setup and easy configuration.
Advanced Communication Protocols: The module supports multiple industrial protocols, including RS-485, Modbus RTU, and Ethernet, enabling seamless integration with existing systems.
Built-in Diagnostics: The module includes built-in fault diagnosis and alarm functions, facilitating real-time monitoring and maintenance.

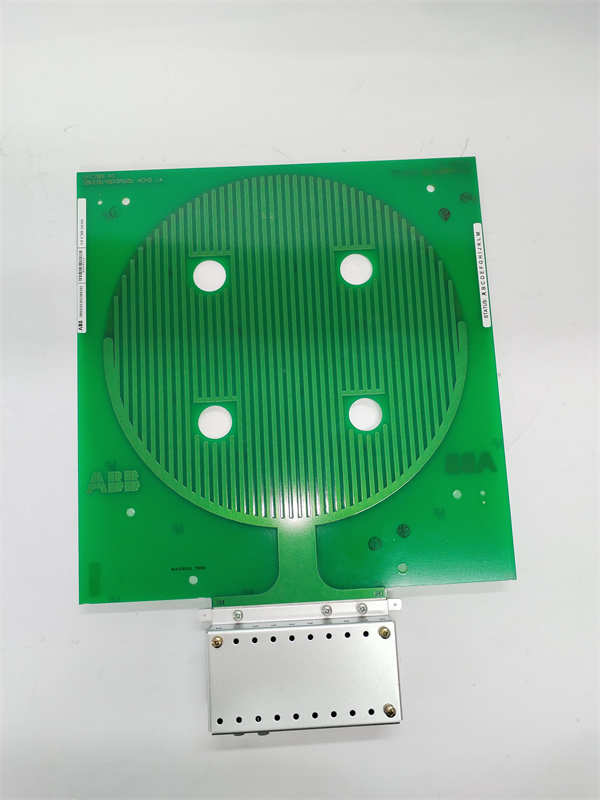

ABB 3BHE014023R0101 UFC789AE101
Typical Application Scenarios
The ABB 3BHE014023R0101 UFC789AE101 is widely used in various industrial sectors, including:
-
Mechanical Manufacturing: For CNC machines, robots, and other equipment requiring high safety control.
-
Process Control: In chemical and pharmaceutical industries to ensure the safety and stability of production processes.
-
Robotics: For real-time data acquisition and control actions, enhancing robot efficiency and safety.
Related Model Recommendations
-
ABB 70BV05A-ES: Known for its robust I/O capabilities.
-
ABB 70EA2a-ES: A reliable choice for general control tasks.
-
ABB 70EA01B-ES: Ideal for communication-intensive applications.
-
ABB 70EB0lb-E: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 3BHE014023R0101 UFC789AE101 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
