Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3BHE013299R0002 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Series | ACS880 |
| Input Voltage Range | 100-240VAC |
| Output Voltage Range | 24V DC |
| Output Current | 2.5 A |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 85 mm × 37 mm × 125 mm |
| Weight | 0.5 kg |
| Certifications | CE, RoHS |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, IEC61850 |
| Protection Level | IP20 |
| Application Areas | Industrial Automation, Robotics, Electrical Automation |
ABB 3BHE013299R0002
Product Introduction

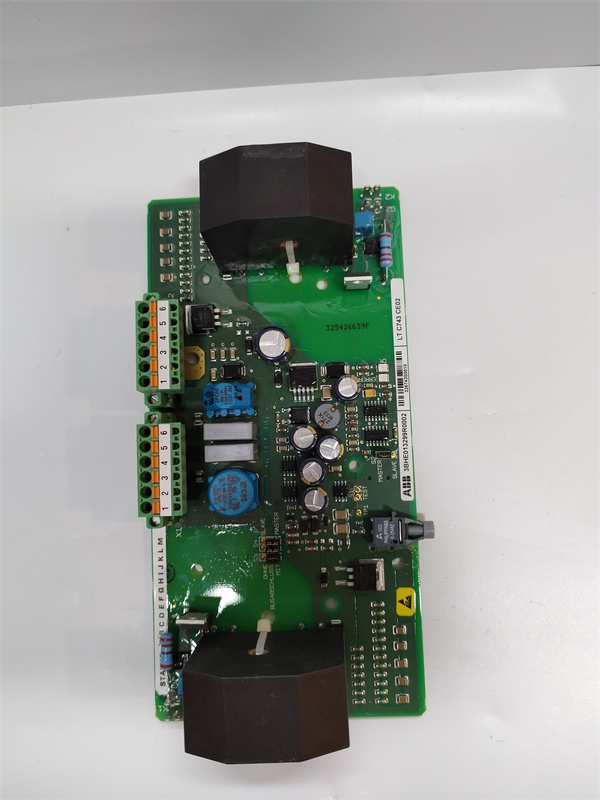

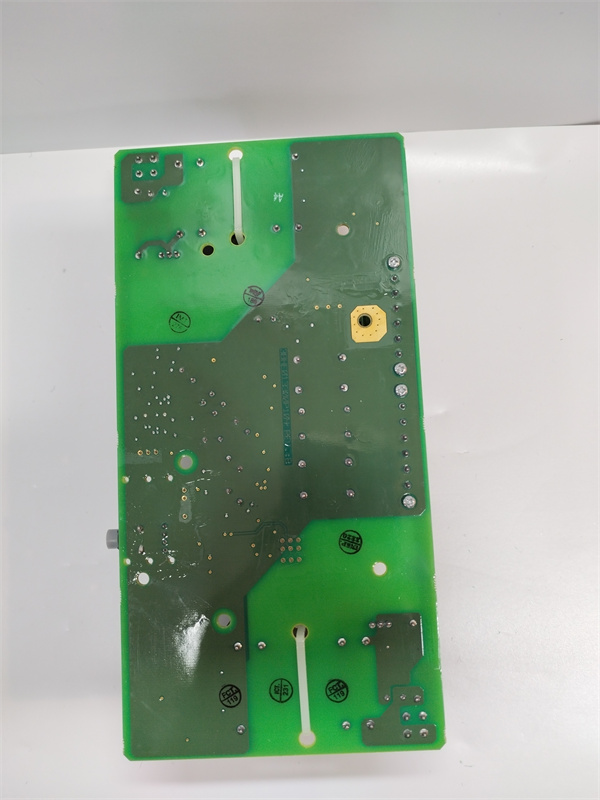

The ABB 3BHE013299R0002 is a high-performance control and communication board designed for the ABB ACS880 drive series. It provides a user-friendly interface for controlling and monitoring the operation of the drive system.
Core Advantages and Technical Highlights
User-Friendly Interface: The module features a 7-inch color touchscreen display and 10 keys for intuitive operation.
Advanced Communication Protocols: It supports multiple industrial protocols, including Modbus RTU, Modbus TCP/IP, and IEC61850, enabling seamless integration with existing systems.
High Reliability and Precision: The module is designed for high reliability and precision, ensuring stable performance in harsh industrial environments.
Protection Functions: It includes overload protection, overheat protection, and short circuit protection to ensure safe operation.
DIN Rail Installation: The module is designed for easy installation using DIN rail mounting.
ABB 3BHE013299R0002
Typical Application Scenarios
The ABB 3BHE013299R0002 is widely used in various industrial sectors, including:
-
Industrial Automation: For precise motor control in systems such as fans, pumps, compressors, conveyors, and cranes.
-
Power Systems: For monitoring and controlling transformers to ensure safe and stable operation.
-
Robotics: For real-time data acquisition and control actions, enhancing robot efficiency and safety.
Related Model Recommendations
-
ABB 70BV05A-ES: Known for its robust I/O capabilities.
-
ABB 70EA2a-ES: A reliable choice for general control tasks.
-
ABB 70EA01B-ES: Ideal for communication-intensive applications.
-
ABB 70EB0lb-E: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 3BHE013299R0002 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
