Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3BHB045647R0003 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Series | ACS6000 High Voltage Inverter |
| Input Voltage Range | 24V DC |
| Output Voltage Range | 24V DC |
| Output Current Range | 20 A |
| Maximum Power Output | 480 W |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 100 mm × 80 mm × 15 mm |
| Weight | 4.3 kg |
| Certifications | CE, RoHS |
| Communication Protocols | Ethernet, RS485 |
| Isolation Voltage | 2 kV |
| Measurement Accuracy | ±0.5% |
| Response Time | <2 ms |
| Explosion-proof Class | Ex ia IIB T4 |

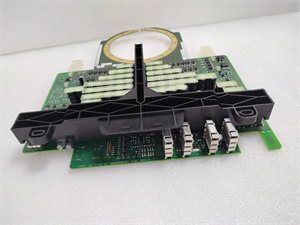

ABB 3BHB045647R0003
Product Introduction
The ABB 3BHB045647R0003 is a high-performance thyristor module designed for the ACS6000 medium-voltage drive system. It is used for industrial automation and control applications, providing precise control and monitoring of high-power circuits.
Core Advantages and Technical Highlights
High Power Capacity: The module is designed to handle high currents and voltages, making it suitable for high-power applications.
Fast Response: The thyristor module can switch on and off quickly, providing fast response times suitable for applications requiring precise control.
Stable and Reliable: The module is built with high-quality materials and advanced production processes, ensuring stability and reliability in harsh industrial environments.
Overload and Short Circuit Protection: The module includes built-in protection features to prevent equipment damage or malfunctions.
Isolation: The module provides electrical isolation between input and output circuits, protecting the control system and the controlled equipment.

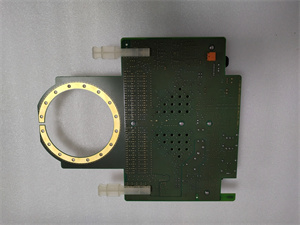

ABB 3BHB045647R0003
Typical Application Scenarios
The ABB 3BHB045647R0003 is widely used in various industrial sectors, including:
-
Power Plants: For monitoring and controlling power generation processes.
-
Industrial Automation: For process control and machine control applications.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Oil & Gas Industry: For high-precision control and monitoring of industrial processes.
Related Model Recommendations
-
ABB 70BV05A-ES: Known for its robust I/O capabilities.
-
ABB 70EA2a-ES: A reliable choice for general control tasks.
-
ABB 70EA01B-ES: Ideal for communication-intensive applications.
-
ABB 70EB0lb-E: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 3BHB045647R0003 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
