Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3BHB002751R0106 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Series | ACS1000 A/W Rectifier Supervision Board |
| Input Voltage Range | 85-264 VAC |
| Output Voltage Range | 5-24 VDC |
| Output Current Range | 0-10 A |
| Maximum Power Output | 240 W |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 250 mm × 250 mm × 100 mm |
| Weight | 1.5 kg |
| Certifications | CE, RoHS |

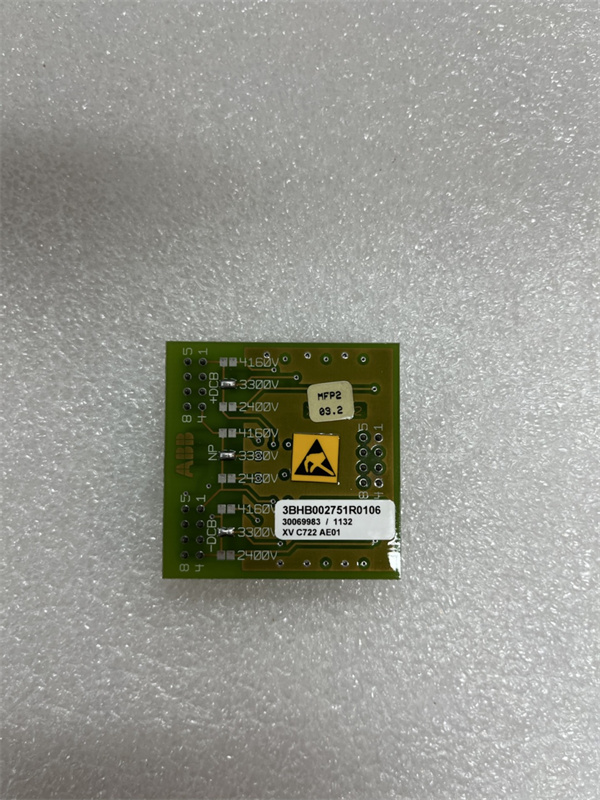

3BHB002751R0106
Product Introduction
The ABB 3BHB002751R0106 is a high-performance rectifier supervision board designed for the ACS1000 medium voltage AC drive system. It efficiently monitors and controls the rectifier section, converting AC power to DC for the inverter stage.
Core Advantages and Technical Highlights
High Reliability and Precision: The 3BHB002751R0106 features advanced electronic components and materials, ensuring high precision and reliability in harsh industrial environments.
Wide Operating Range: The module operates reliably within a temperature range of -10°C to +60°C and a humidity range of 5% to 95% non-condensing.
Advanced Communication Protocols: The 3BHB002751R0106 supports various communication protocols, enabling seamless integration with existing systems and enhancing overall interoperability.
User-Friendly Interface: The module features a user-friendly interface that facilitates easy setup and operation, minimizing the learning curve for new users.

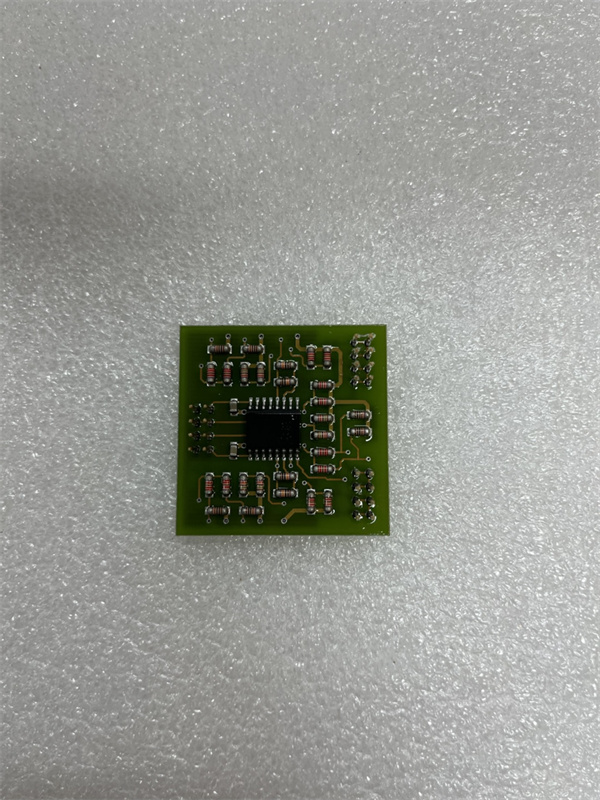

3BHB002751R0106
Typical Application Scenarios
The ABB 3BHB002751R0106 is widely used in various industrial sectors, including:
-
Manufacturing Plants: For process control and machine control applications.
-
Power Plants: For monitoring and controlling power generation processes.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Oil & Gas Industry: For high-precision control and monitoring of industrial processes.
Related Model Recommendations
-
ABB 70BV05A-ES: Known for its robust I/O capabilities.
-
ABB 70EA2a-ES: A reliable choice for general control tasks.
-
ABB 70EA01B-ES: Ideal for communication-intensive applications.
-
ABB 70EB0lb-E: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 3BHB002751R0106 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
